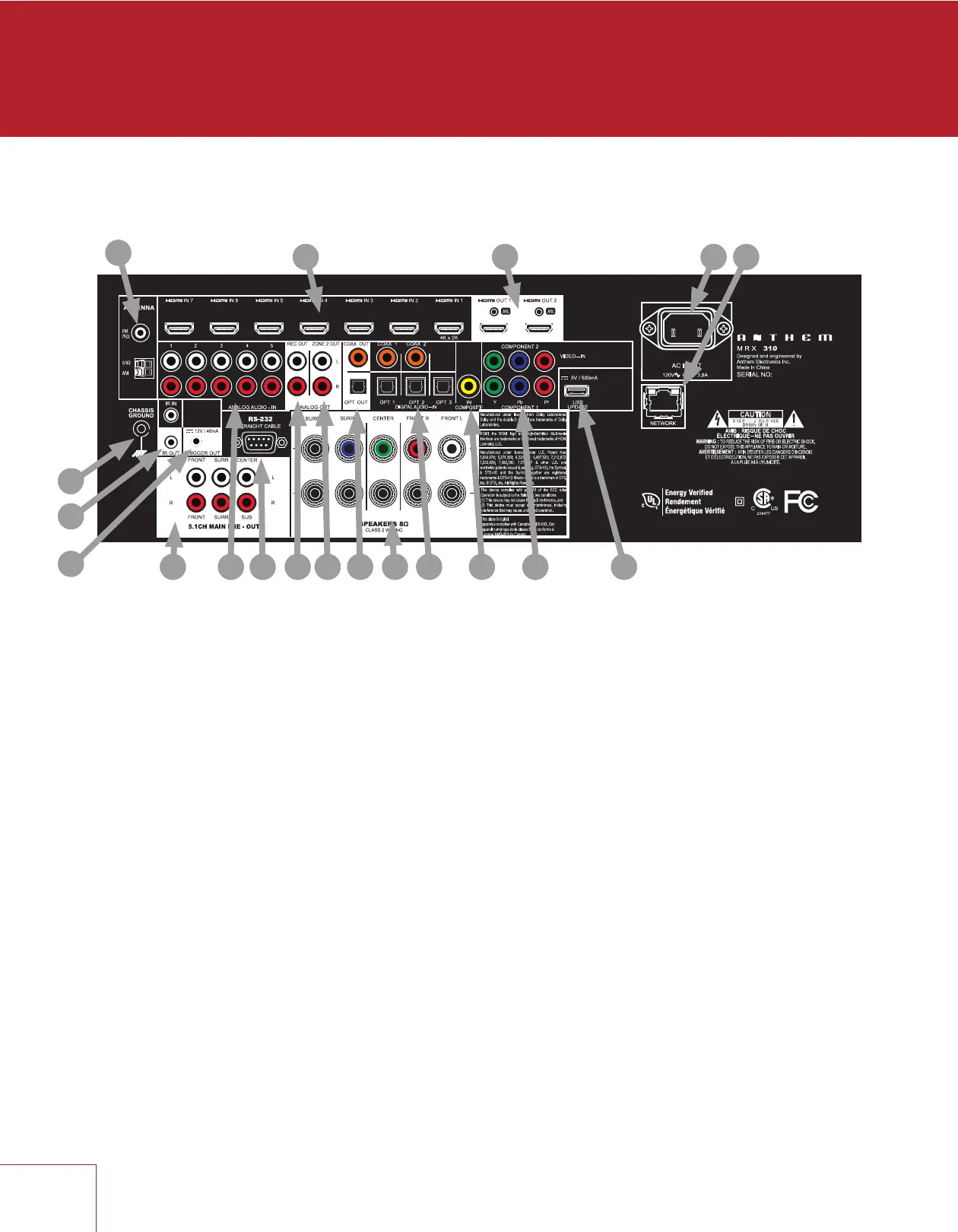

1.5 REAR PANEL MRX 310
US model shown. EU and CN models are similar.
1 – FM/AM antenna connections
2 – HDMI inputs (HDMI1 accepts up to 4K resolution)
3 – HDMI outputs with Audio Return Channel
4 – AC input
5 – Local area network connection for IP control and Anthem Room Correction
6 – USB jack for software updates
7 – Component video inputs
8 – Composite video input
9 – Coaxial and optical digital audio inputs
10 – Speaker connections
11 – Coaxial and optical digital audio outputs
12 – Zone 2 audio outputs
13 – Record audio outputs
14 – RS-232 interface (bidirectional) for serial control
15 – Analog audio L/R inputs
16 – Main pre-out connections
17 – Trigger output
18 – IR input and output
19 – Chassis ground screw
