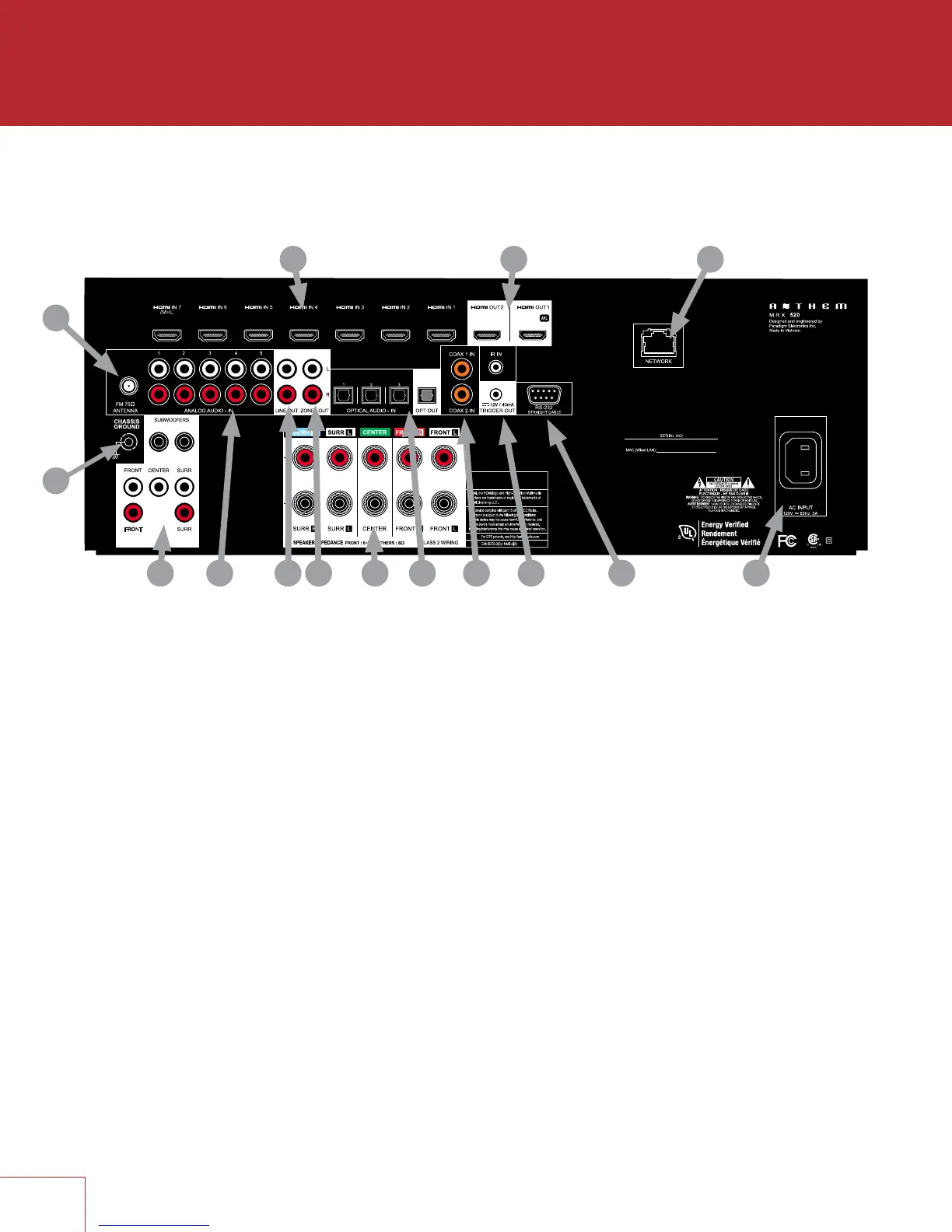

1.4 REAR PANEL
US model shown. EU model is similar.
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are
trademarks of Dolby Laboratories.
1
2 3
910
6
5
8
11121314
15
4
7
1 – FM antenna connections
2 – HDMI inputs - HDMI7 supports MHL
3 – HDMI outputs - HDMI1 supports Audio Return Channel
4 – Local area network connection for IP control and Anthem Room Correction
5 – AC input
6 – RS-232 interface (bidirectional) for serial control
7 – IR input and trigger output
8 – Coaxial digital audio inputs
9 – Optical digital audio inputs and output
10 – Speaker connections
11 – Zone 2 audio output
12 – Line audio output
13 – Analog audio inputs
14 – Main pre-out connections
15 – Chassis ground screw
