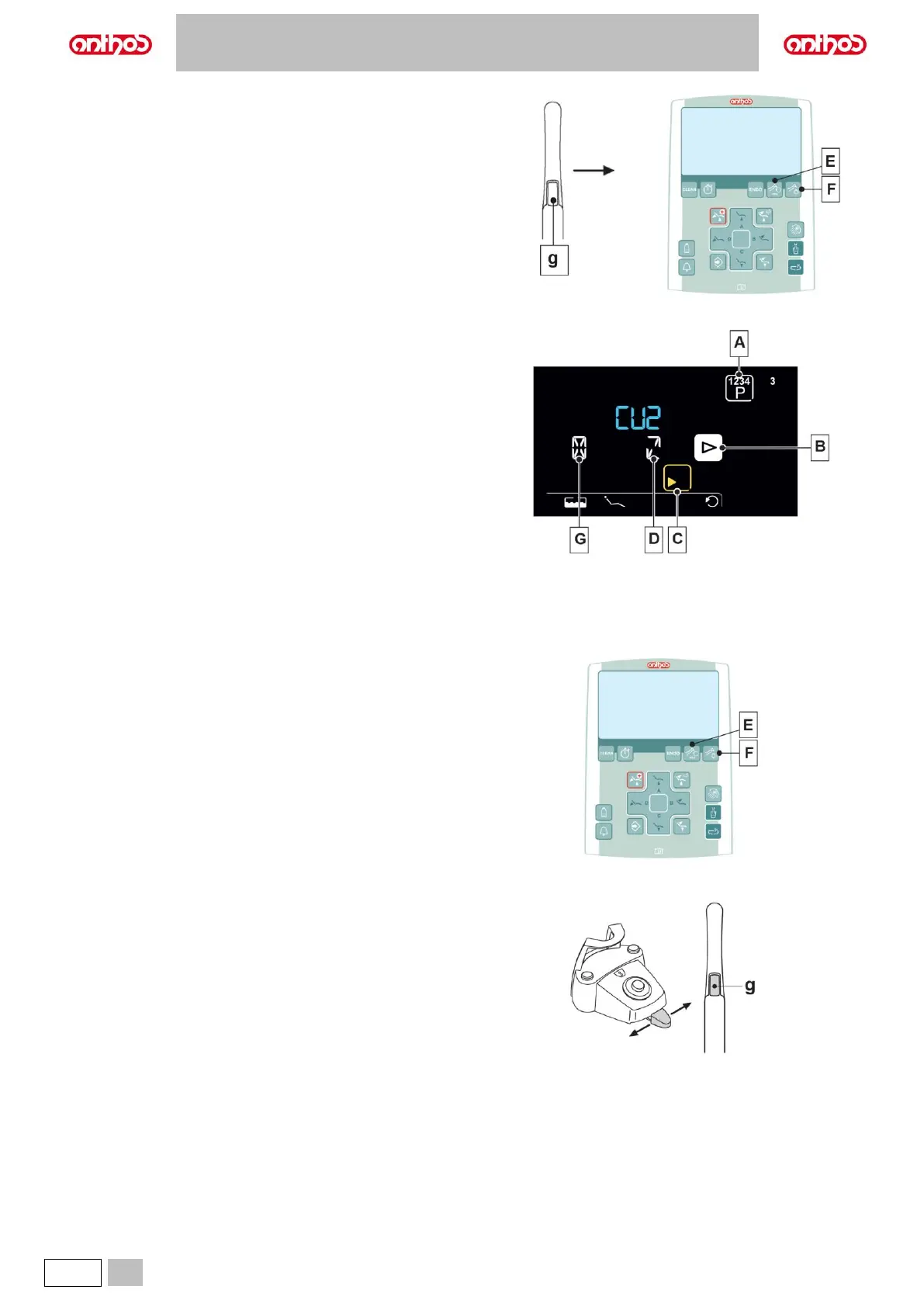

Use of the camera.
• Place the instrument in its work position.
Now camera is activated and is in LIVE mode (monitor shows "moving"
images) or FREEZE mode (monitor shows a snapshot).
Buttons on the camera
g
Image acquisition.
Console buttons:
E
Enables/disables MIRROR function
(only with camera extracted and set to LIVE).
F
Turns camera LEDs on/off
(only with camera extracted).
LCD Touch DISPLAY icon buttons:
A
In LIVE mode: allows switching from single to multiple image mode
(and vice versa).
In FREEZE mode: allows scrolling through pages with frozen images.
B
Image selection (scrolling selection).
C
Function to EXIT the image management page.
(camera in FREEZE mode).
D
Enables/disables zoom.
G
Button pressed shortly: deletes selected image.
Button pressed and held: deletes all images.
Image acquisition
• Shortly press the touch key (g) on camera handpiece or operate the foot control to capture the image shown on the monitor.
To go back to "live" image, simply touch again the touch key (g) on camera handpiece or operate the foot control.
• When the camera is set back to LIVE mode, the DISPLAY shows the MAIN PAGE; the image management page remains active in FREEZE mode,
press the touch button (C) to exit it.
Turning on camera lighting system.
• Press the button (F) to turn on/off camera lighting system
MIRROR function.
• With the camera set to LIVE mode, briefly press the button (E) on the
console to change from viewing real images to mirror images.
FREEZE mode.
• Handpiece C-U2 is equipped with a touch-sensitive button (g).
Touch the button (g) (or actuate the foot control) to freeze the image of
interest.
Tap the button (g) again (or actuate the foot control) to unlock the frozen
image.
