MHPTV TX Quick Start Guide
MHPTV-QSG-DOC-V1.1, 12/05/2018 Page 10 of 37

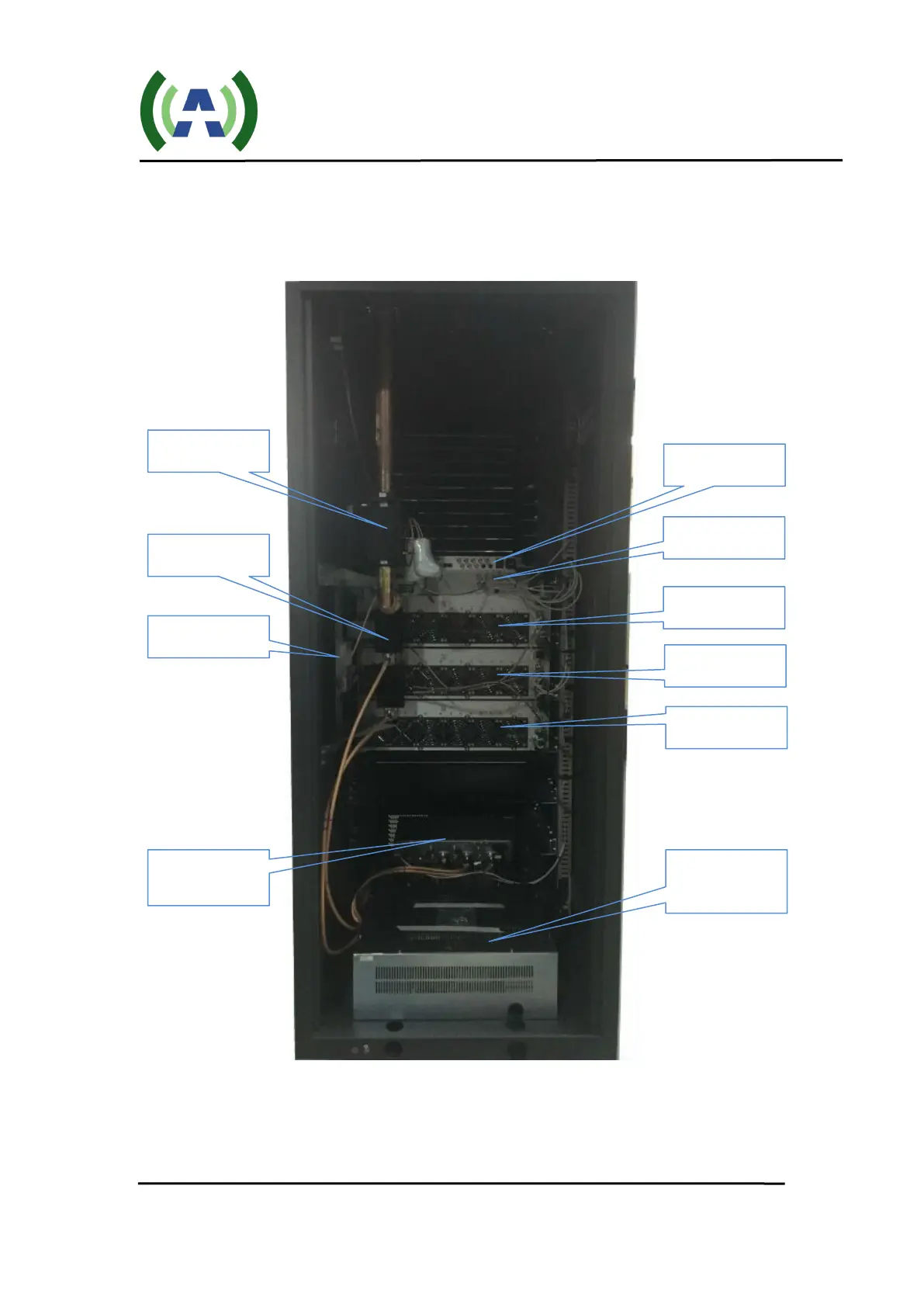

From the rear view of the TX cabinet, several other main components can be seen
which include an AC Distribution System, 3-way Splitter and Combiner, 2-port
Directional coupler and Reject Load.
Splitter
Coupler
Combiner
Reject Load
Exciter
Controller
PA 1
PA 2
PA 3
AC
Distribution
