MHPTV TX Quick Start Guide
MHPTV-QSG-DOC-V1.1, 12/05/2018 Page 11 of 37

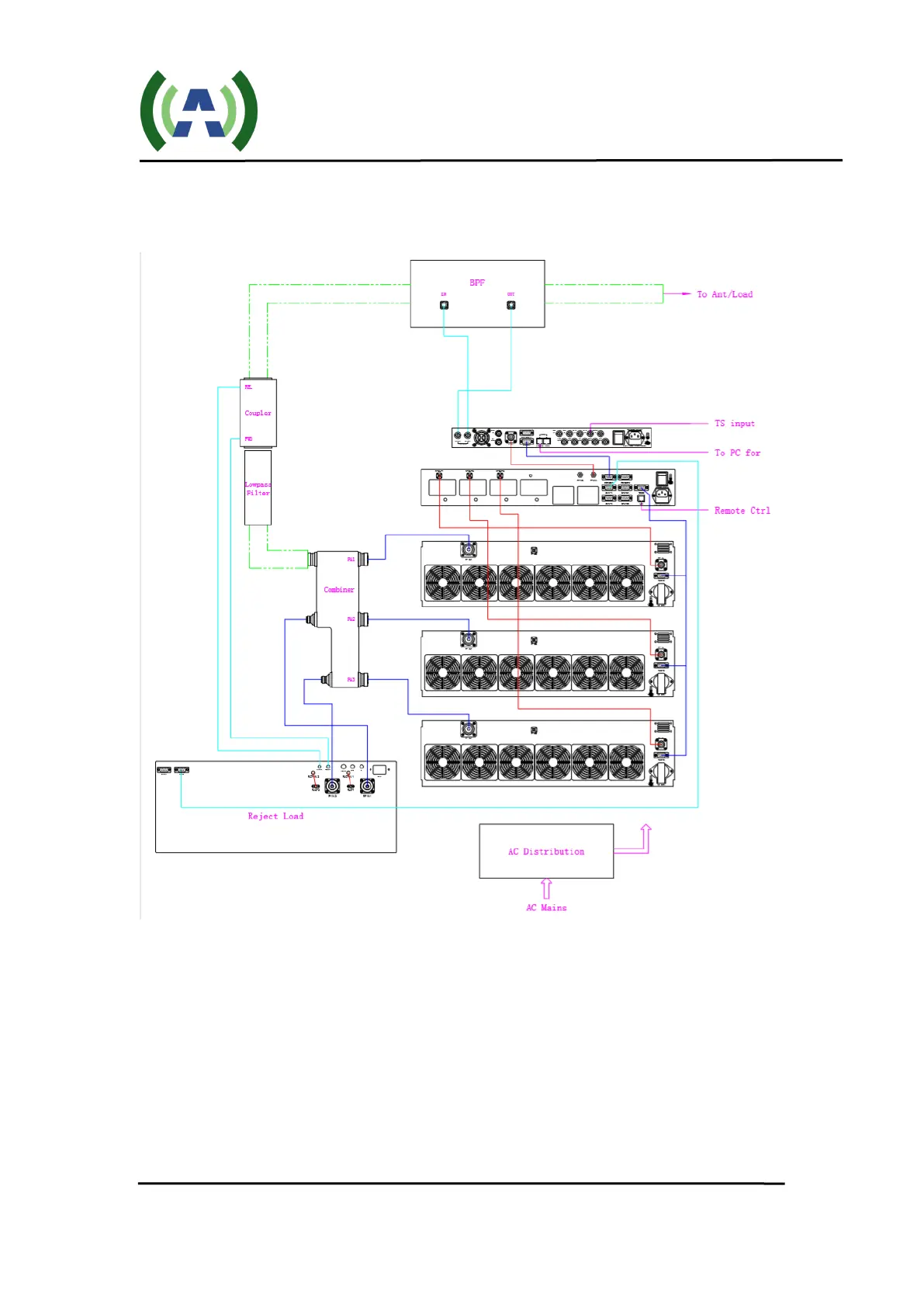

The diagram below shows the overall system interconnect between the various
modules in the 3-PA MHPTV system.
