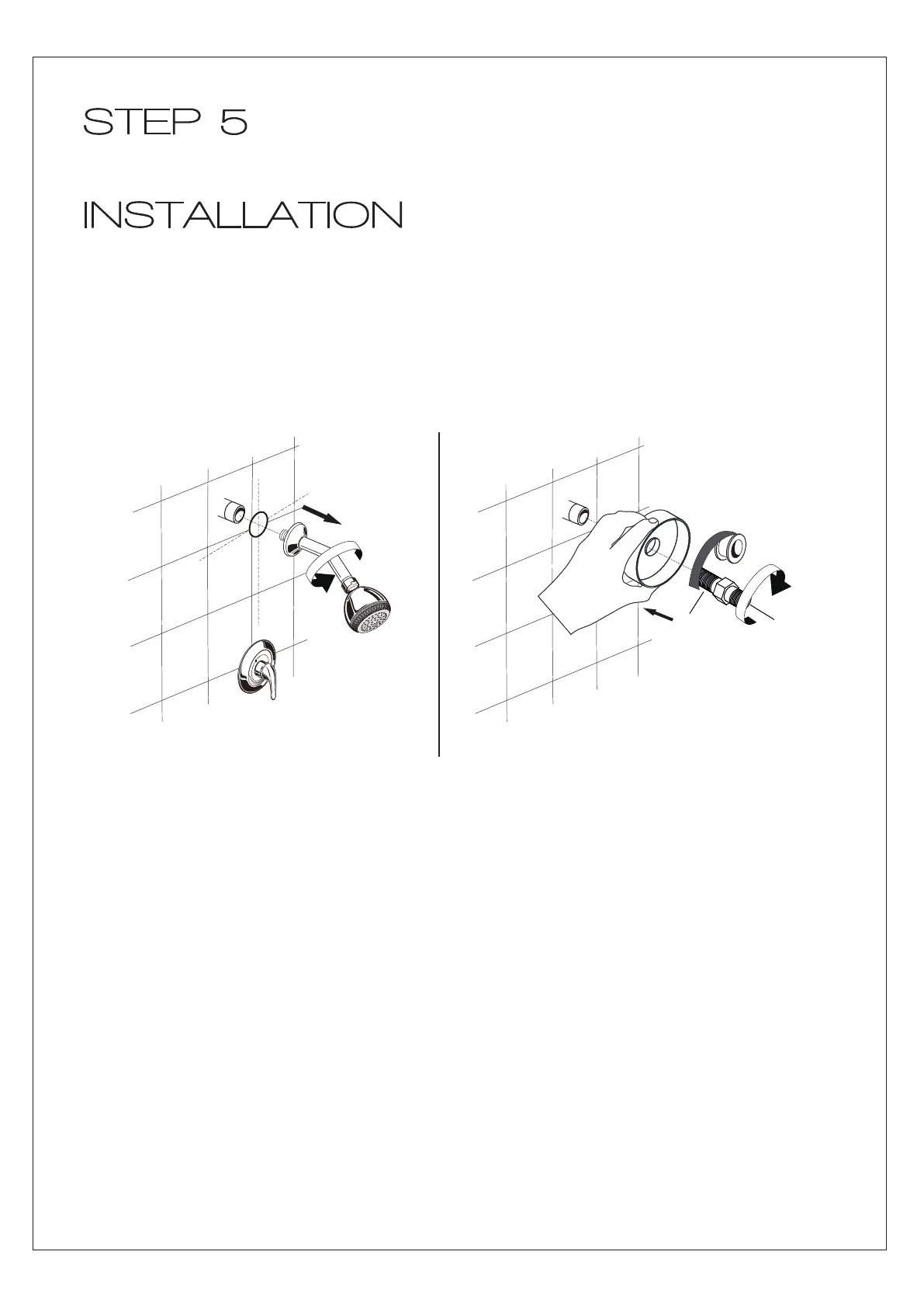

STEP 5
INSTALLATION
Remove the existing shower head and shower arm assembly.
Hold the plastic base against the wall.Wrap plumber tape around "A"position
of adapter threads. Connect the adapter to the existing outlet.
5-1
5-2
A long
B short
