Connecting the Monitor

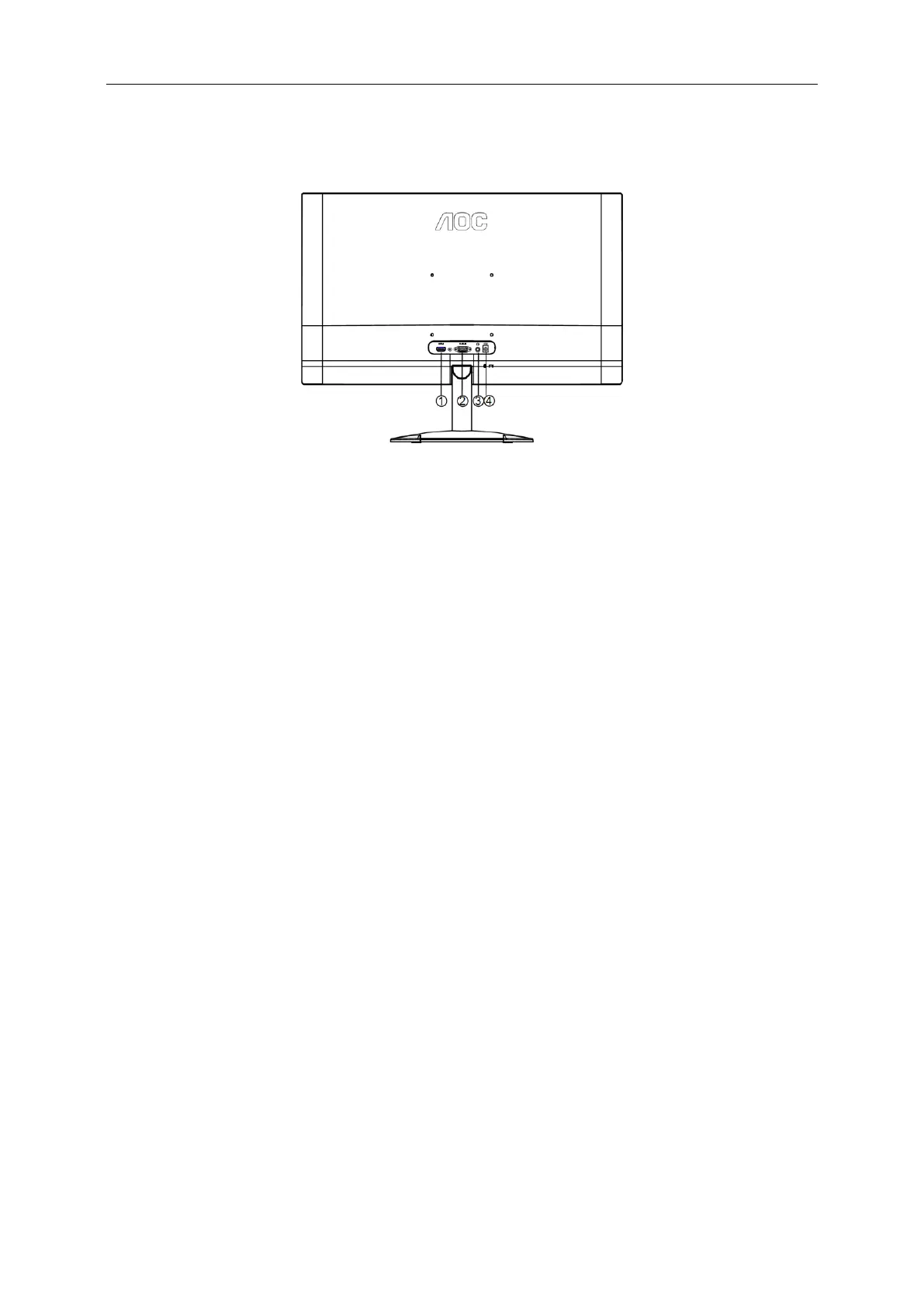

Cable Connections In Back of Monitor and Computer:

1 HDMI

2 Analog (D-Sub 15-Pin VGA cable)

3 Earphone out

4 Power

To protect equipment, always turn off the PC and LCD monitor before connecting.

1 Connect the power cable to the DC port on the back of the monitor.

2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the

computer's D-Sub port.

3 Optional – (Requires a video card with HDMI port) – Connect one end of the HDMI cable to the back of the

monitor and connect the other end to the computer’s HDMI port.

4 Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer

Troubleshooting.
