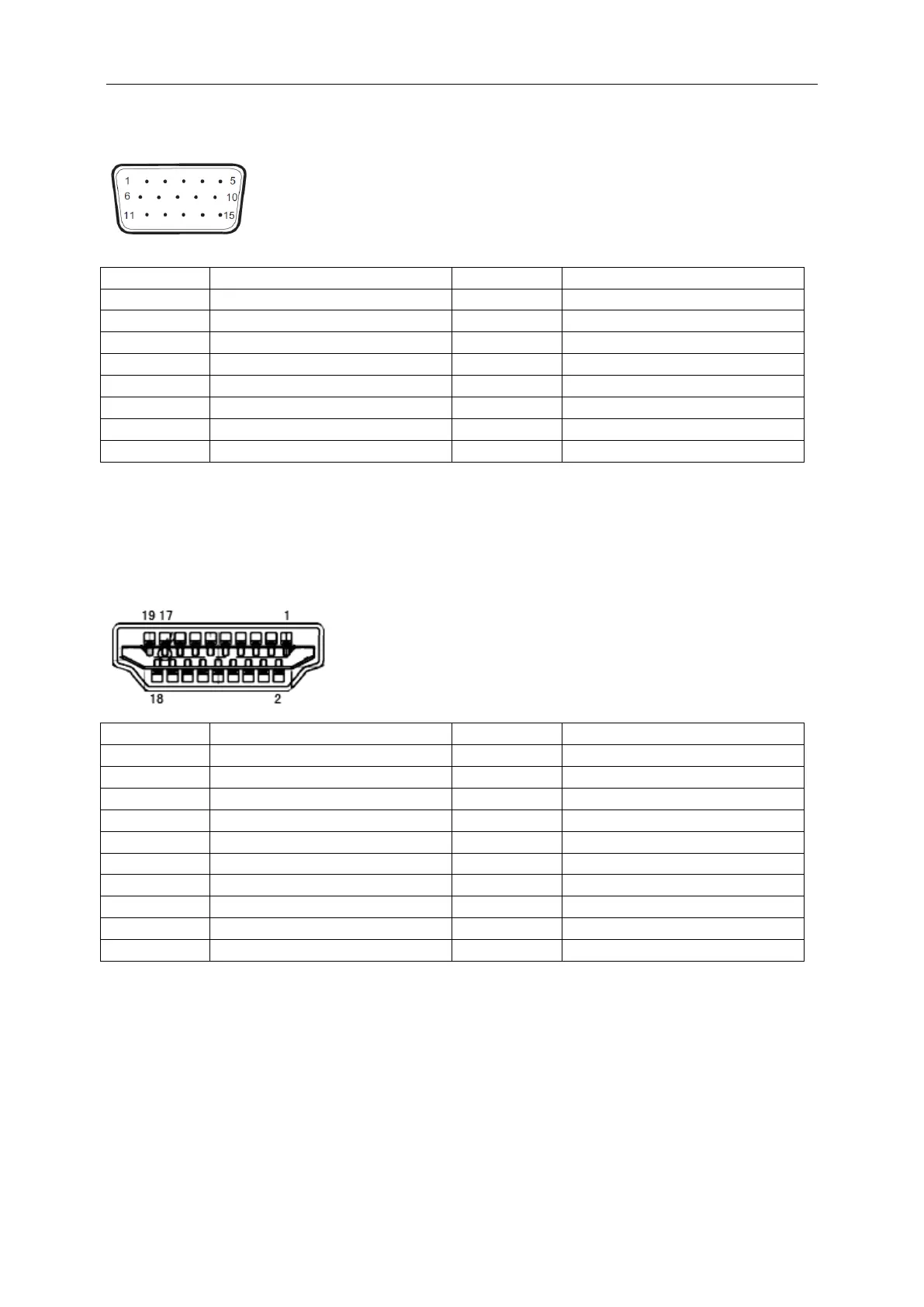

Pin Assignments
15-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
Video-Red
9
+5V
2
Video-Green
10
Ground
3
Video-Blue
11
Ground
4
Ground
12
DDC-Serial data
5
Detect Cable
13
H-sync
6
GND-R
14
V-sync
7
GND-G
15
DDC-Serial clock
8
GND-B
19-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS Data 2+
11
TMDS Clock Shield
2
TMDS Data 2 Shield
12
TMDS Clock
3
TMDS Data 2
13
CEC
4
TMDS Data 1+
14
Reserved (N.C. on device
5
TMDS Data 1Shield
15
SCL
6
TMDS Data 1
16
SDA
7
TMDS Data 0+
17
DDC/CEC Ground
8
TMDS Data 0 Shield
18
+5V Power
9
TMDS Data 0
19
Hot Plug Detect
10
TMDS Clock +

AOC 27B2H Specifications

General

Color	black
Screen Type	lcd
Tiltable	yes
Touch Screen	no
Webcam	no
OS Compatibility	windows
Screen Size	27 inches
Panel Type	ips
Aspect Ratio	16:9
Resolution	1920 x 1080
Native Resolution	1920 x 1080
Refresh Rate	75hz
Horizontal Viewing Angle	178 degrees
Vertical Viewing Angle	178 degrees
Response Time	8 milliseconds
Brightness	250 candela per square meter
Contrast Ratio	20, 000, 000:1
Synchronization	not applicable
HDR	no
Built-In Speakers	no
HDMI Ports	1
Display Port Inputs	0
Mini Display Port	0
VGA Ports	1
DVI	0
Thunderbolt Ports	0
Headphones Output	yes
Height with Stand	17.96 inches
Width with Stand	24.1 inches
Height without Stand	14.22 inches
Net Weight without Stand	7.93 pounds
