CONNECTING THE MONITOR

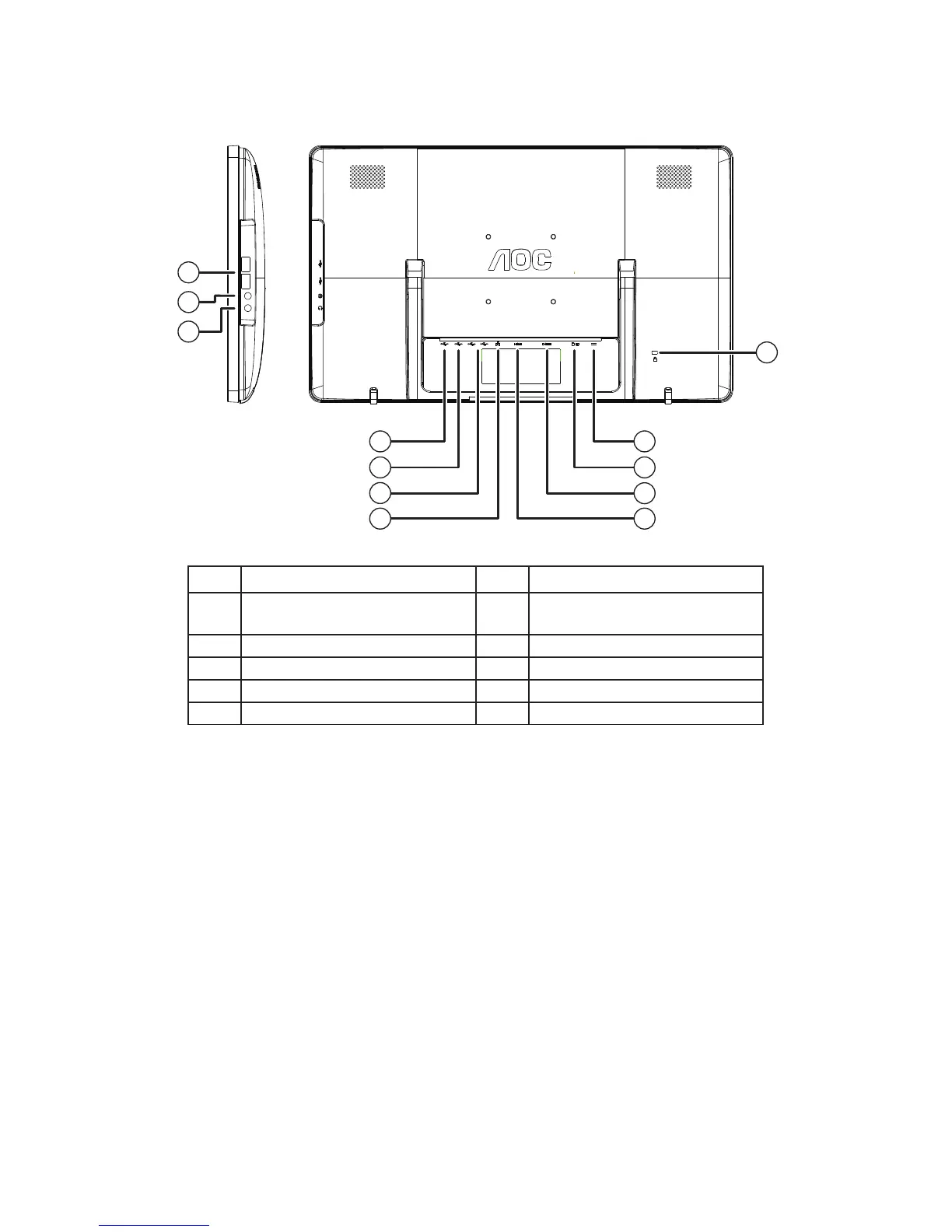

Cable connections at the back of monitor:
1
2
3
4
8
9
12
10
11
7
6
5
1. Power Input 7. USB Port
2.
SD Card Slot (SD/SDHC/SDXC/
MMC/MS/MS-Pro)
8. USB Port (Micro USB)
3. D-SUB Signal Input 9. USB Port
4. HDMI Signal Input 10. Audio In
5. RJ45 (10/100Mbps) 11. Earphone Out
6. USB Port 12. Kensington Lock
To protect equipment, always turn off the PC and monitor before connecting.
1. Connect the power cable to the AC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other
end to the computer’s D-Sub port.
3. Optional – (Requires a video card with HDMI port) – Connect one end of the HDMI cable to
the back of the monitor and connect the other end to the computer’s HDMI port.
4. Turn on your monitor and computer.
5. Video content supporting resolution: VGA / HDMI: 1920 x 1080/60Hz (Maximum)
If your monitor displays an image, installation is complete. If it does not display an image, please
refer Troubleshooting on page 46.
