11
TV INSTALLATION Connect the device

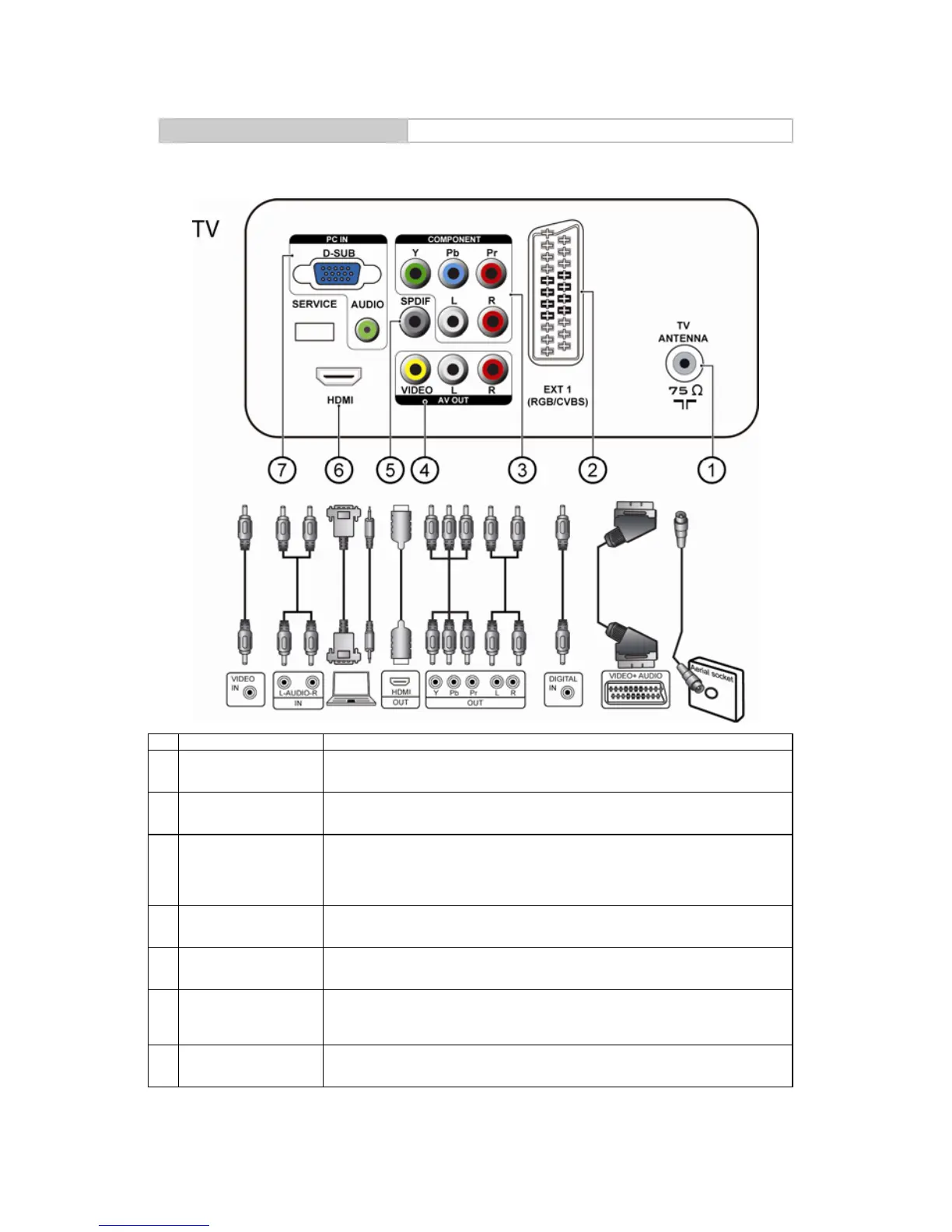

Rear connections
For 19”/22” model:
Port Functions
1
Tuner Input
Connects to TV RF signals (antenna/CATV).
2
SCART
(EXT 1)
Full SCART, which transmits RGB, S-Video and CVBS in, and monitor out.
3
Component Video
and L/R Audio Input
The YPbPr video signal can be used if connecting through the component
video port. For example Progressive Scan DVD payers, Hi-scale HDTV
Decoders, and satellite receivers, obtain video with maximum resolution
using YPbPr and L/R audio signals.
4
Composite Video
and L/R Audio Input
The video signal can be used if connecting through the composite video
port and L/R audio signals.
5
SPDIF Output
(Digital audio out)
SPDIF is highly recommended for high quality digital sound output.
6
HDMI
High Definition Multimedia Interface
Connect to devices with digital signals and can be used with PC or HDTV
video signals.
7
PC IN
Connect to VGA analog signals sources. PC audio supports 3.5mm Jack.
To Next Page
