AOC LM927U - 5 Block Diagram; Monitor Exploded View

AOC LM927U
13
5. Block Diagram

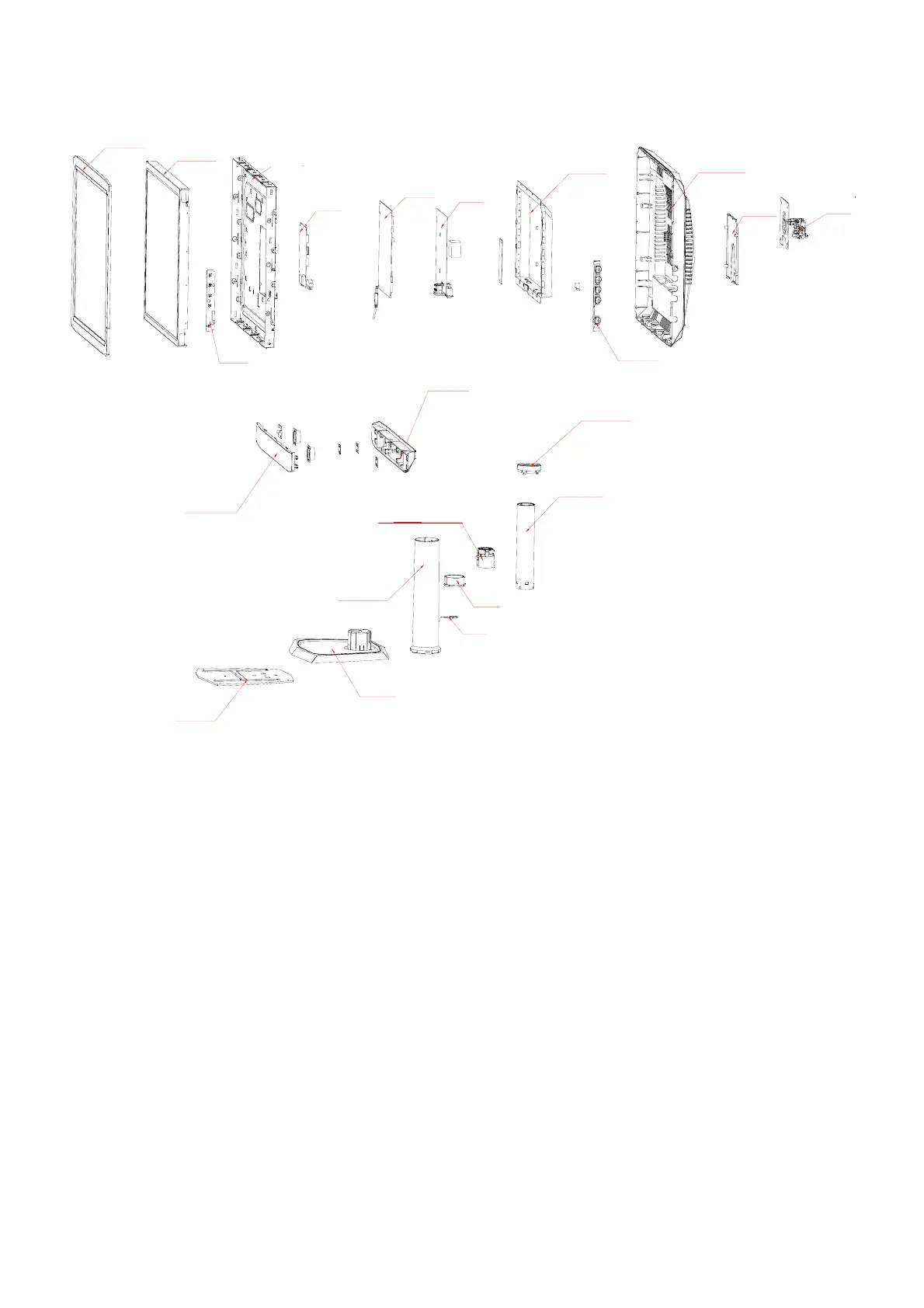

5.1 Monitor Exploded View
HOLDER LIFT
BEZEL 34G1239
PANEL
KEY BOARD
15G5960
MAIN FRAME
SHIELD 85G651-3 34G1240
REAR COVER
HINGE ASSY
37G 478-1
W33G4673
COVER VESA
15G6050-1
HOLDER SPRING
BRACKET
33G4650
BASE 34G1245
STAND 34G1243
W33G4649 GM
34G1242
15G5962-1
34G1241
SPK BOX COVER -F
SPK BOX COVER -R
BASE PLATE
33G4647
BUTTON FUNC
33G4642
STAND LIFT
34G1244
COVER TILT
