Connecting the Monitor

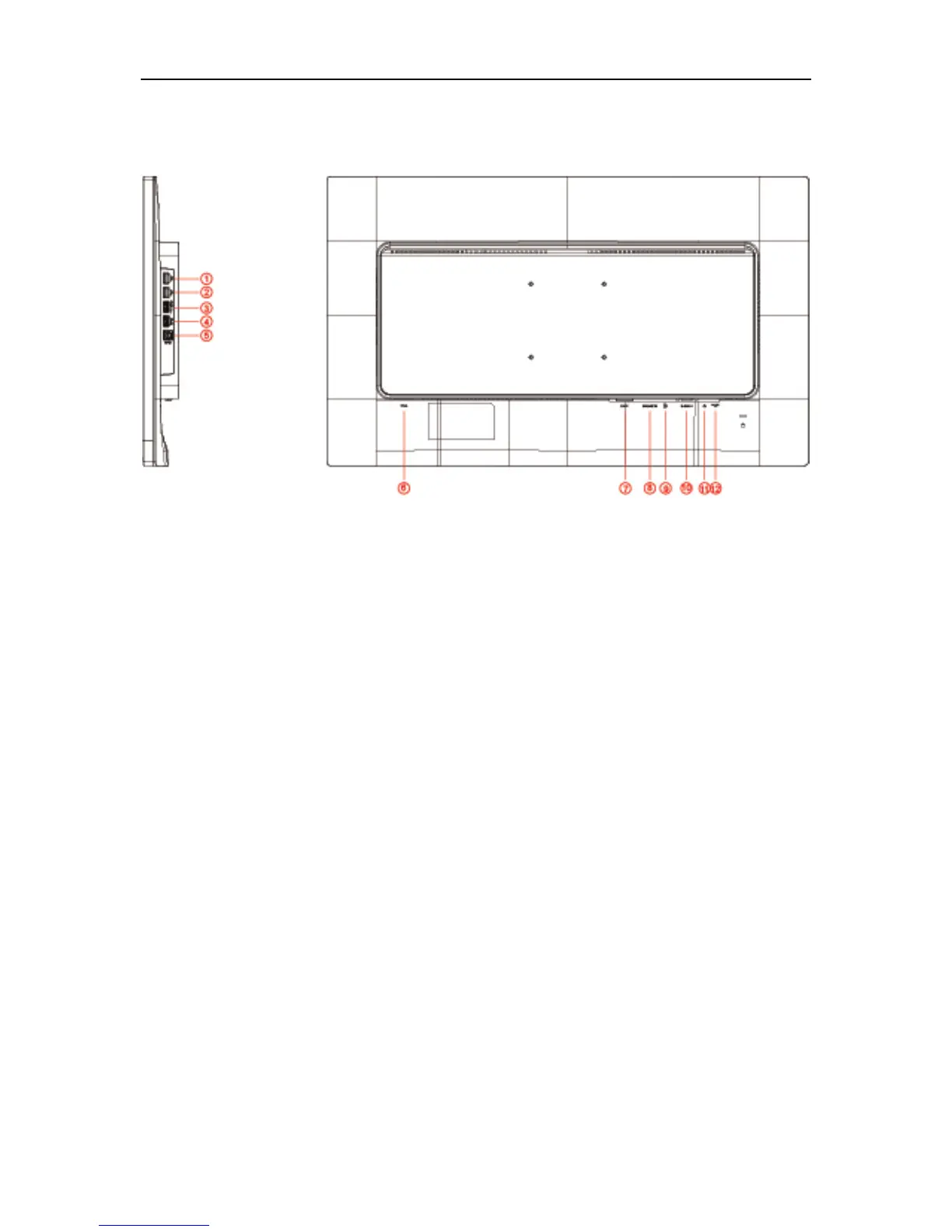

Cable Connections In Back of Monitor and Computer:
1 USB 2.0
2 USB 2.0
3 USB 3.0+ fast charging
4 USB 3.0
5 USB input
6 Power
7 DVI
8 MHL-HDMI
9 Display port
10 Analog (D-Sub 15-Pin VGA cable)
11 Earphone out
12 AUDIO IN
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3 Optional – (Requires a video card with DVI port) – Connect one end of the DVI cable to the back of the monitor
and connect the other end to the computer’s DVI port.
4 Optional – (Requires a video card with HDMI port) – Connect one end of the HDMI cable to the back of the
monitor and connect the other end to the computer’s HDMI port.
5 Optional – (Requires a video card with DP port) – Connect one end of the DP cable to the back of the monitor
and connect the other end to the computer’s DP port.
6 Turn on your monitor and computer.
7 Video content supporting resolution:
(1) VGA: 1920 x 1080/60Hz (Maximum)
(2) DVI: 1920 x 1080/60Hz (Maximum)
(3) DVI Dual-Link: 3840 x 2160/30Hz (Maximum)
