AOC U2868PQU User Manual

50

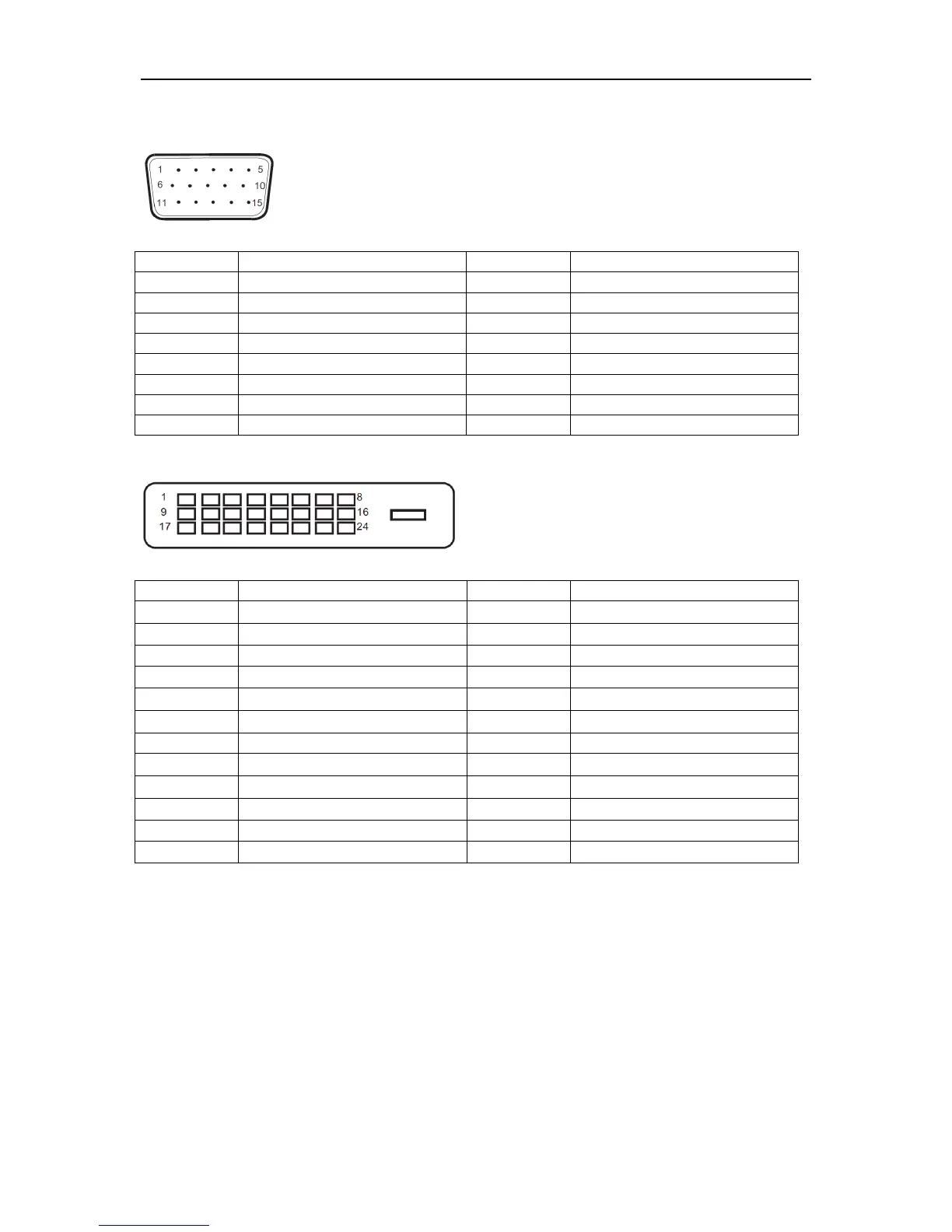

Pin Assignments
15-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 Video-Red 9 +5V
2 Video-Green 10 Ground
3 Video-Blue 11 N.C.
4 N.C. 12 DDC-Serial data
5 Detect Cable 13 H-sync
6 GND-R 14 V-sync
7 GND-G 15 DDC-Serial clock
8 GND-B
24-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1
TMDS data 2－
13
TMDS data 3＋
2 TMDS data 2＋ 14 ＋5V Power
3 TMDS data 2/4 Shield 15 Ground (for+5V)
4
TMDS data 4－
16 Hot Plug Detect
5
TMDS data 4＋
17
TMDS data 0－
6 DDC Clock 18 TMDS data 0＋
7 DDC Data 19 TMDS data 0/5 Shield
8 N.C. 20
TMDS data 5－
9
TMDS data 1－
21
TMDS data 5＋
10 TMDS data 1＋ 22 TMDS Clock Shield
11 TMDS data 1/3 Shield 23 TMDS Clock +
12
TMDS data 3－
24
TMDS Clock －

AOC U2868PQU Specifications

General

Color	black
Tiltable	yes
Touch Screen	no
Webcam	no
OS Compatibility	windows
Screen Size	28 inches
Aspect Ratio	16:9
Resolution	3840 x 2160
Native Resolution	3840 x 2160
Refresh Rate	60hz
Horizontal Viewing Angle	170 degrees
Vertical Viewing Angle	160 degrees
Response Time	1 milliseconds
Brightness	300 candela per square meter
Contrast Ratio	70, 000, 000:1
Horizontal Scan Rate	99 kilohertz
Built-In Speakers	yes
Power Consumption	95 watts
Depth with Stand	21.54 inches
Width with Stand	25.9 inches
Net Weight without Stand	17.5 pounds
