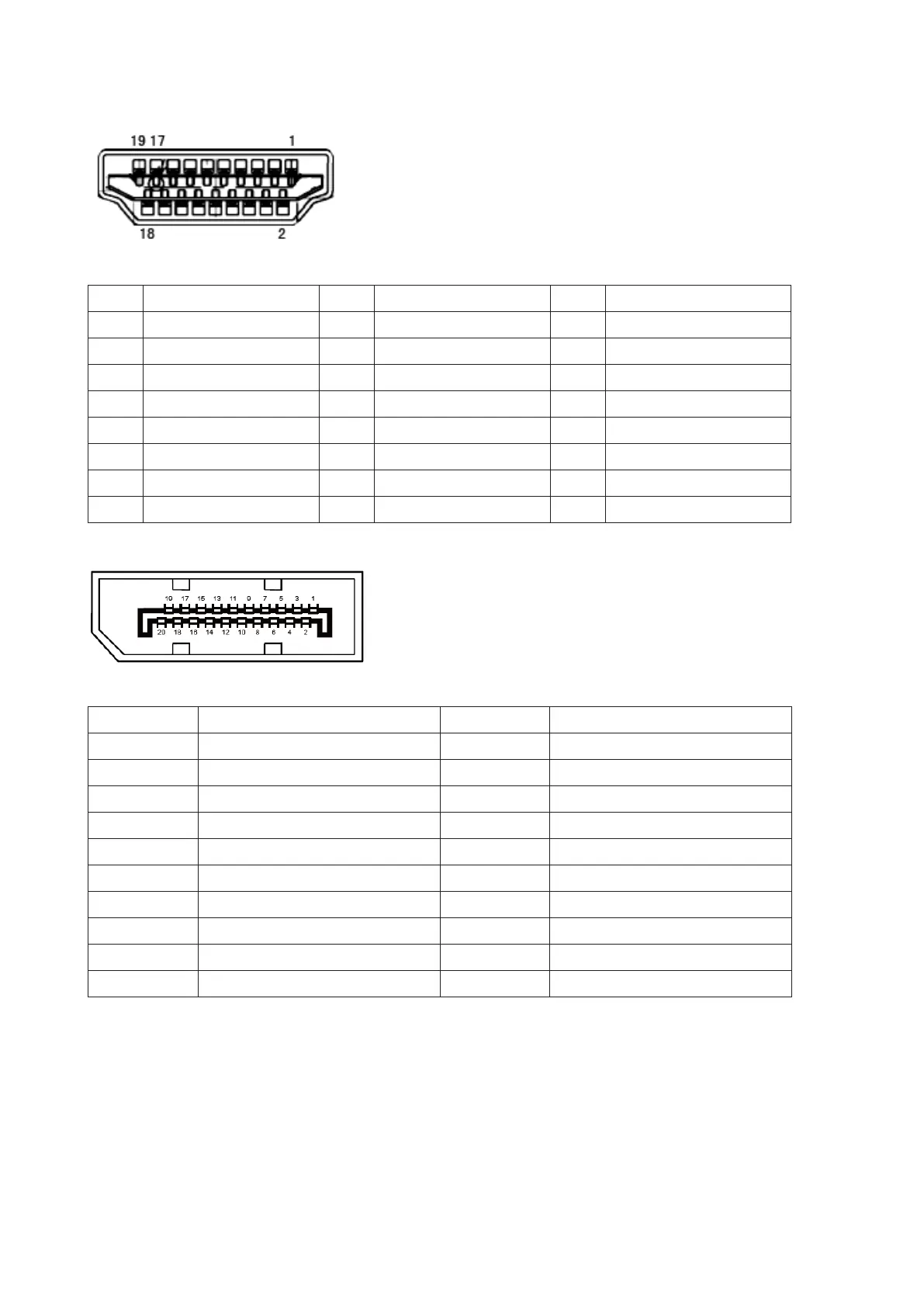

Pin Assignments

19-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground

2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power

3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect

4. TMDS Data 1+ 12. TMDS Clock-

5. TMDS Data 1Shield 13. CEC

6. TMDS Data 1- 14. Reserved (N.C. on device)

7. TMDS Data 0+ 15. SCL

8. TMDS Data 0 Shield 16. SDA

20-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name

1 ML_Lane 3 (n) 11 GND

2 GND 12 ML_Lane 0 (p)

3 ML_Lane 3 (p) 13 CONFIG1

4 ML_Lane 2 (n) 14 CONFIG2

5 GND 15 AUX_CH(p)

6 ML_Lane 2 (p) 16 GND

7 ML_Lane 1 (n) 17 AUX_CH(n)

8 GND 18 Hot Plug Detect

9 ML_Lane 1 (p) 19 Return DP_PWR

10 ML_Lane 0 (n) 20 DP_PWR

Questions and Answers:

Need help?

Do you have a question about the AOC U28P2U and is the answer not in the manual?

AOC U28P2U Specifications

General

Pixel pitch	0.16 x 0.16 mm
Screen shape	Flat
Display diagonal	28 \
Display technology	-
Vertical scan range	23 - 75 Hz
Horizontal scan range	30 - 140 kHz
NTSC coverage (typical)	107 %
Viewable size, vertical	341.28 mm
sRGB coverage (typical)	119 %
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	1000:1
Display number of colors	1.07 billion colors
Viewable size, horizontal	620.928 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	3840 x 2160
HDMI	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 35 °
Panel mounting interface	100 x 100 mm
Certification	CE, CB, FCC, BSMI, KC / KCC / eStandby
Product color	Black, Grey
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
