5

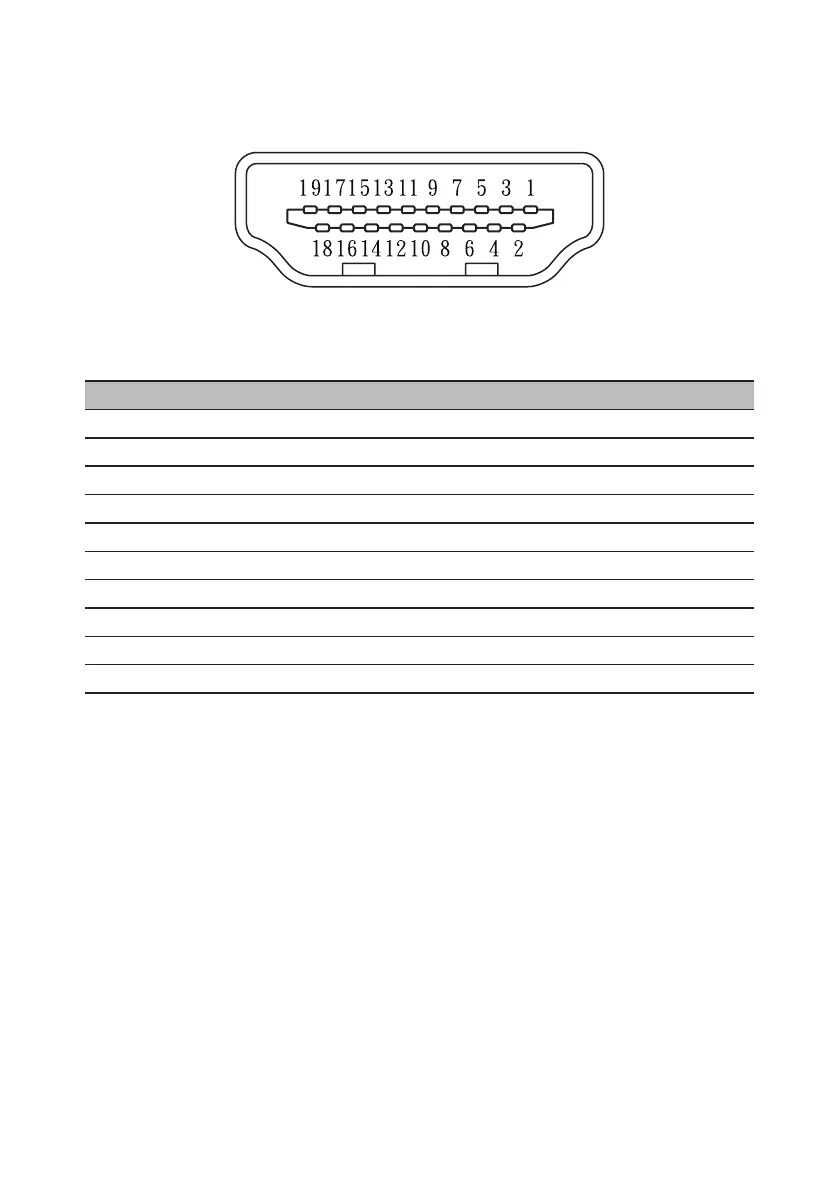

C
onnec
tor pin assignment
19-pin color display signal cable
PIN No.
Description
PIN No.
Description
1
TMDS RX2+
11
TMDS Ground
2
TMDS Ground
12
TMDS Clock-
3
TMDS RX2-
13
CEC
4
TMDS RX1+
14
Floating
5
TMDS Ground
15
DDC Clock
6
TMDS RX1-
16
DDC Data
7
TMDS RX0+
17
Ground
8
TMDS Ground
18
+5V Po
wer
9
TMDS RX0-
19
Hot Plug Detect
10
TMDS Clock+
15
17
Table of Contents
Information for Your Safety and Comfort
3
Safety Instructions
3
Special Notes on LCD Monitors
3
Safe Listening
4
Using Electrical Power
4
Product Servicing
5
Potentially Explosive Environments
5
Additional Safety Information
6
IT Equipment Recycling Information
6
Disposal Instructions
6
LCD Pixel Statement
7
Tips and Information for Comfortable Use
7
Finding Your Comfort Zone
7
Taking Care of Your Vision
8
Developing Good Work Habits
8
Attaching/Removing the Base
13
Screen Position Adjustment
14
Connecting the Power Cord
15
Power Saving
15
Display Data Channel (DDC)
15
Connector Pin Assignment
16
Standard Timing Table
18
Installation
19
How to Adjust a Setting
21
Adjusting the OSD Settings
22
Troubleshooting
27
