3. Hardware Installation
2）Power Distribution Cabinet Installation
If you use the energy communicator in power distribution cabinet:
 Install the 2 guide rail fasteners on the Guide rail, the space between fasteners
shall be 100mm.
 Align and move the ECU-R to the 2 guide rail fasteners.

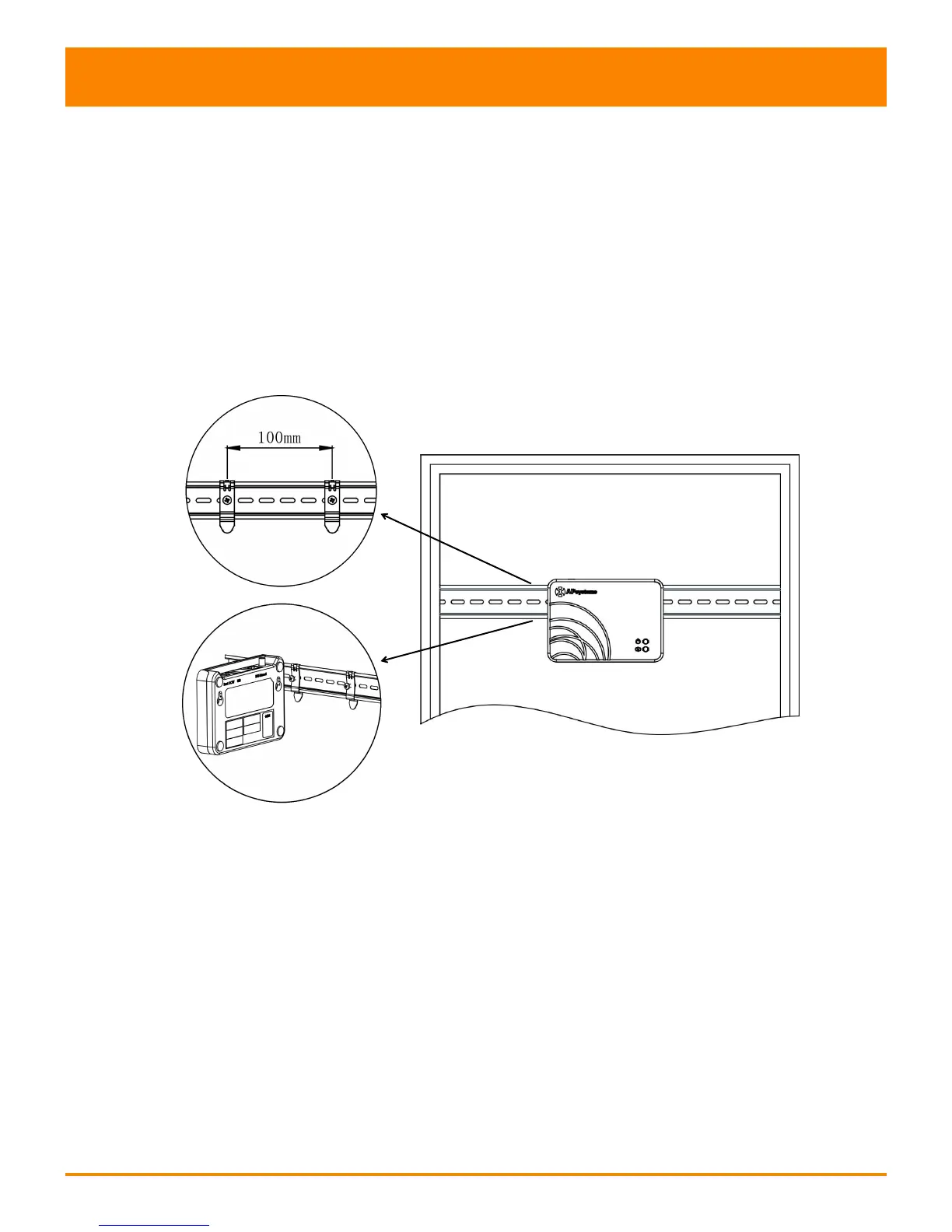

Figure 5
