2. Installation
Mounting the shelves and the battery cells
Caution. Assembly of the battery cabinet
must be carried out by certified personnel
(standard EN 50091-1-2).
Caution. The minimum clearance between
the top of battery cells and the next shelf
is 150 millimeters.

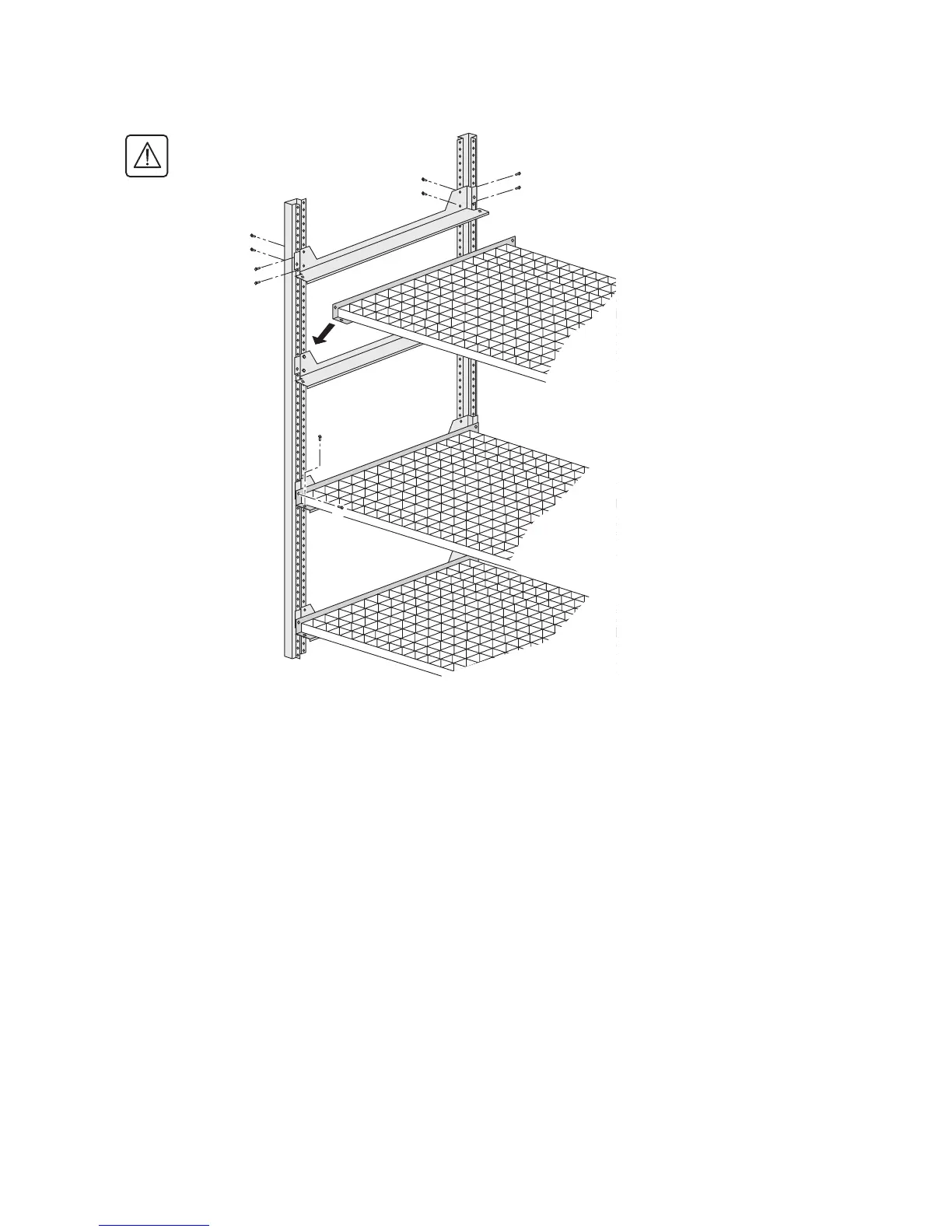

1 - Secure the angle supports (6 screws per
support).
For each shelf:
2 - position the shelf,
3 - secure the shelf with two screws in each
angle,
4 - install the battery cells, secure and
interconnect them.
5 - Interconnect all the shelves and then
connect the overall battery assembly to the
battery circuit breaker.
