Apeks XTX40 - Xtx Tungsten, Xtx200, Xtx100 Exploded Parts Drawing

23
XTX Second Stage Regulator Maintenance Manual
1 AP0624 Purge Button Assembly Chrome (XTX200) 14 AP6213 XTX Venturi Body
AP0624/S Purge Button Assembly Satin (XTX100) 15 AP2033 Seat
AP0624/B Purge Button Assembly Black (XTX Tungsten) 16* AP1154 ‘O’ Ring
AP0624/Y Purge Button Assembly Yellow (XTX Octopus) 17 AP6215 Spindle Collar
AP0624/G Purge Button Assembly Green (XTX100/200 Nitrox) 18 AP6216 Valve Spindle (XTX Tungsten, XTX200)
2 AP6302/PVDS XTX Tungsten front cover AP6216/S Valve Spindle (XTX100)
AP6302 XTX200 front cover 19 AP1151 Spring Pin
AP6302/S XTX100 front cover 20 AP2035 Lever
3 AP5802 Inner cover black (Tungsten, XTX200, XTX100) 21 AP6220/L Left Hand Large Exhaust Tee
4 AP5803 Diaphragm 22 AP6230 Exhaust Rib
5 AP2037 Deector 23 AP6220/R Right Hand Large Exhaust Tee
6 AP5013/PVDS Heat Exchanger PVD (XTX Tungsten) 24 AP6300 XTX Case
AP5013 Heat Exchanger bright (XTX200) 25 AP6223 Exhaust Valve
AP5013/S Heat Exchanger Satin (XTX100) 26 AP5803 Plug
7* AP1267 ‘O’ Ring 27 AP6578 Spring Adjuster
8 AP6211 Blanking Piece (XTX Tungsten, XTX200, XTX100) 28* AP1159 AP1159
AP6211/Y Blanking Piece yellow (XTX Octopus) 29* AP5711 AP5711
AP6211/G Blanking Piece green (XTX200, XTX100 Nitrox) 30 AP6577F/PVDS Adjusting Screw (XTX Tungsten)
9* AP1438 ‘O’ Ring AP6577F Adjusting Screw (XTX200)
10 AP6238F XTX Tungsten Decal AP6577F/S Adjusting Screw (XTX100)
AP6308/2/200 XTX200 Decal 31* AP1409 ‘O’ Ring
AP6308/100 XTX100 Decal 32 AP2038SQ Counter Balance Cylinder
11 AP1677F Mouthpiece Clip 33 AP2021 Spring
12 AP5324 Mouthpiece Comforbite 34* AP2041 ‘O’ Ring
AP5324/G Mouthpiece Comforbite green 35 AP2036 Shuttle valve
13 AP6309 XTX Venturi Ring 36* AP2034 Rubber Seat
AP6309/G XTX Venturi Ring green

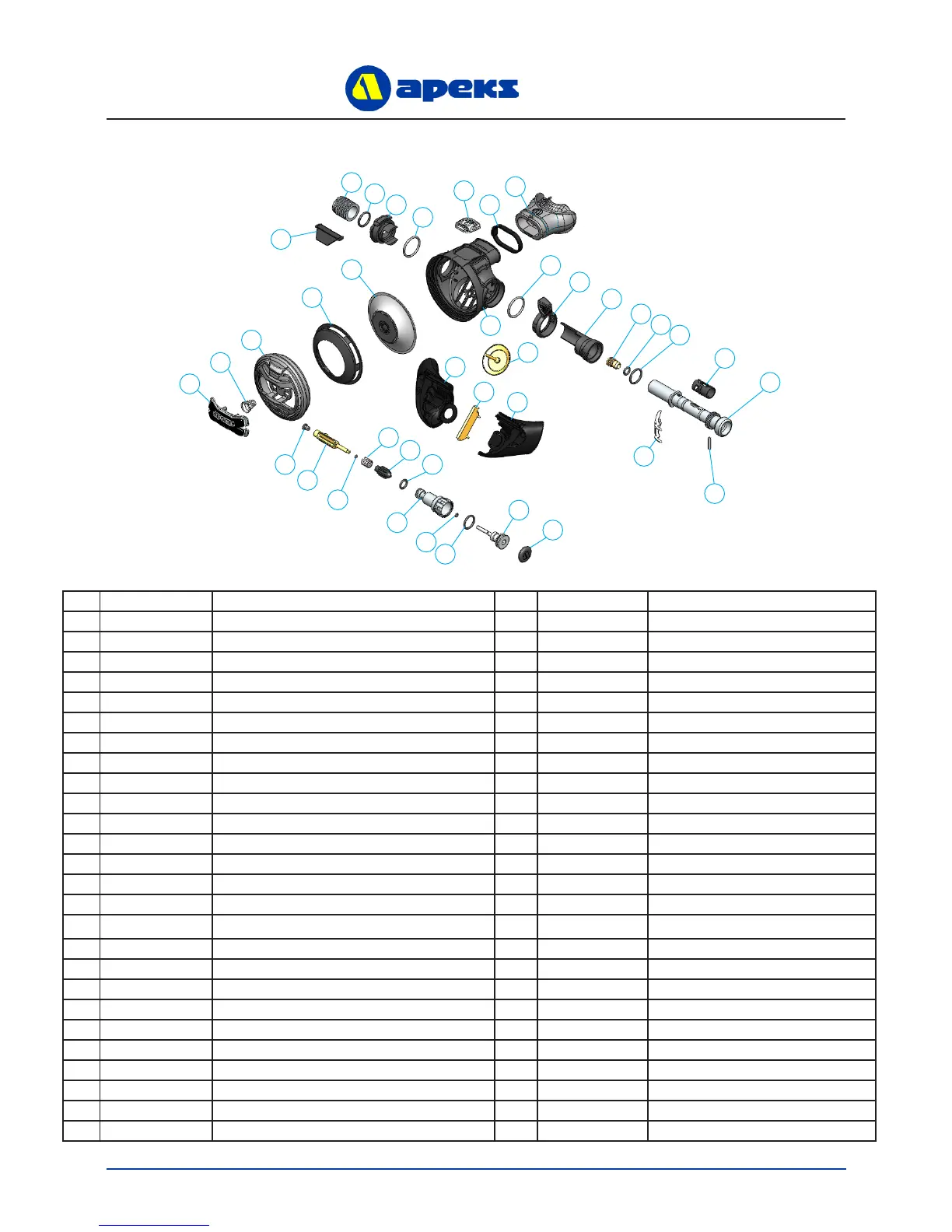

XTX TUNGSTEN, XTX200 & XTX100 Exploded Parts Diagram
* All marked items must be replaced when serviced.
1
1
2
3
4
5
6
7
8
9
10
11
12
9
13
14
15
16
7
17
20
18
19
21
25
24
22
23
26
27
31
32
33
28
29
30
34
35
36
