Vortex M Edition Desk Assembly Guide
11/ Page
Step 6
This step is a two person job. Carefully move the assembled frame
onto the desktop.

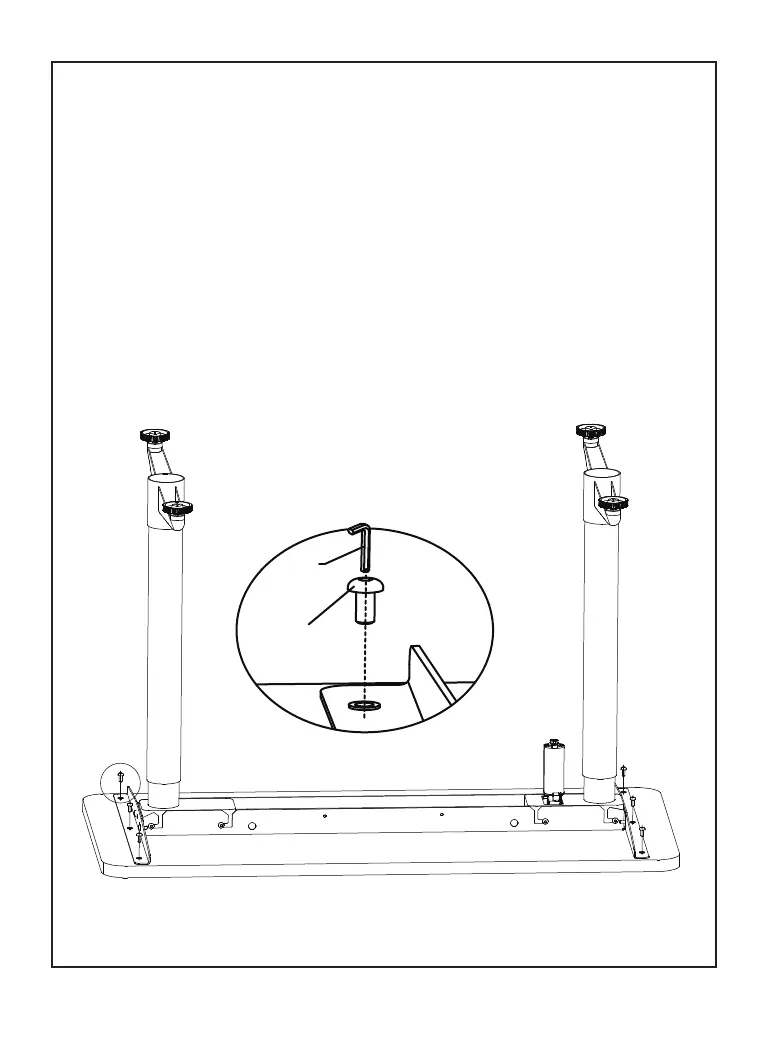

Align the holes on the support brackets to pre-installed anchors on
the top. Secure each side with three to four M6x14mm screws
depending on the size of the top. Adjust leveling studs on the feet if
needed. Make sure the stubs make solid contact with the floor and the
desk does not wobble due to uneven contact with the floor.
4mm
M6*14
