Vortex M Edition Desk Assembly Guide
15/ Page
INSTALLING CABLE MANAGEMENT TRAY
(NOT INCLUDED & SOLD SEPARATELY)

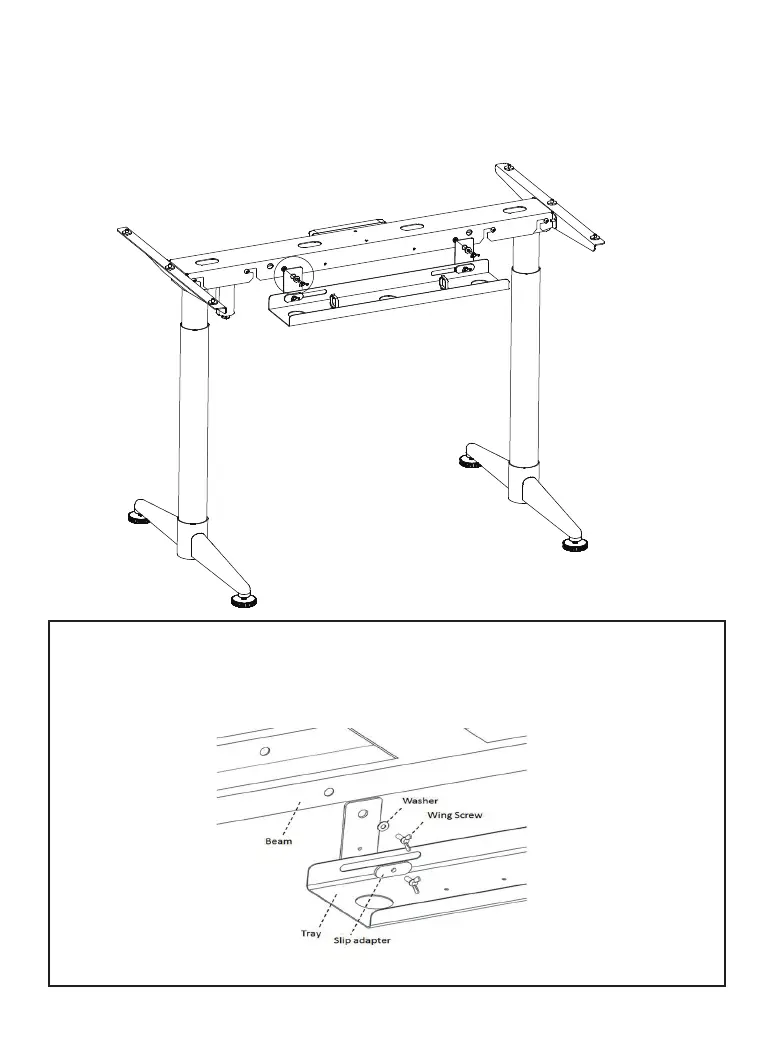

Step 1: Locate two screw holes on the backside of the beam and mount
metal connector as illustrated below with two wing screws and washers,
attach the tray to the metal connector with wing screws and slip adapters.
