Vortex M Edition Desk Assembly Guide
7/ Page

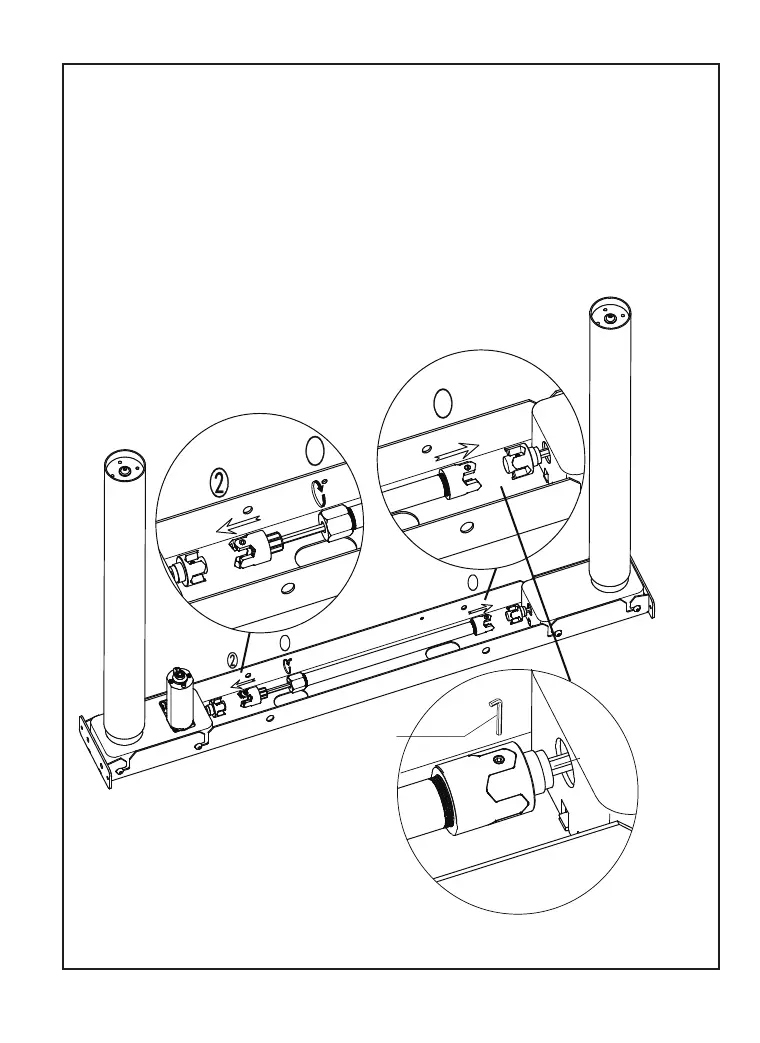

Step 2
Loosen the large nut on the driveshaft by hand. Insert one end of
driveshaft into one leg gear, extend the driveshaft to connect to the
gear of the other leg. Tighten the large nut by hand, and tighten two
pre-installed screws on the driveshaft with 2.5 mm Allen wrench.
2.5mm
×2
1
3
3
1
To Next Page
