Vortex M Edition Desk Assembly Guide
9/ Page

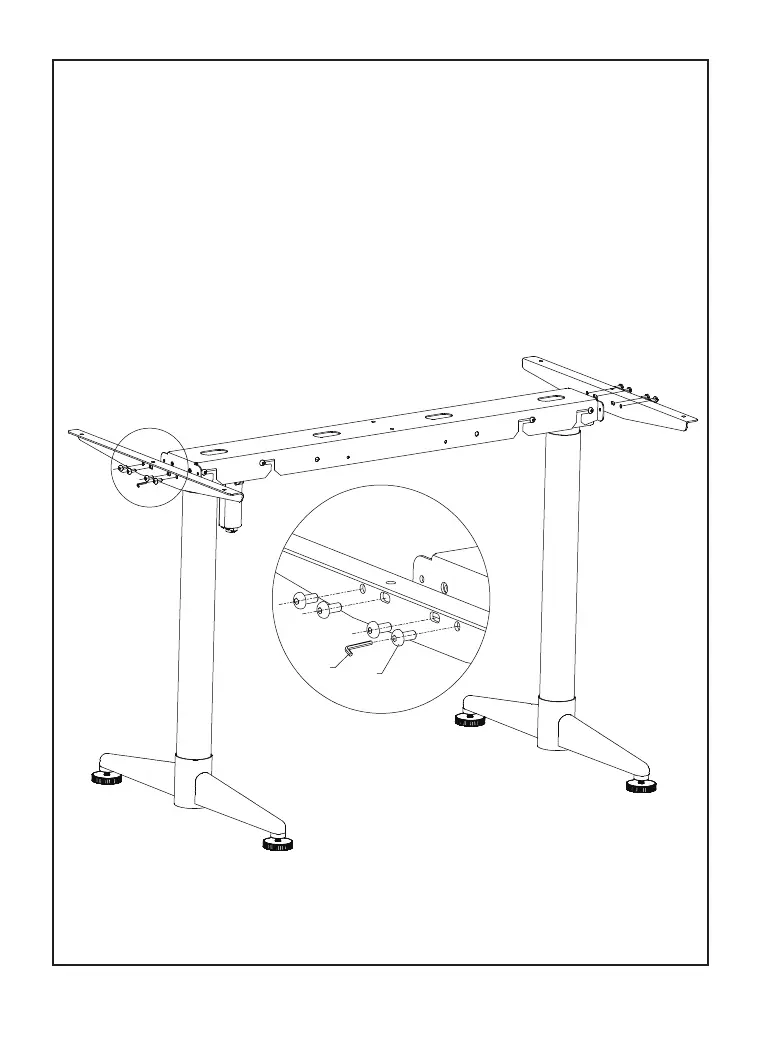

Step 4
Use 4mm Allen wrench and secure each top support bracket to beam
with four M6x14 screws.
Please note edges of support brackets should face outwards, not fold
over the crossbeam.
4mm
M6*14
