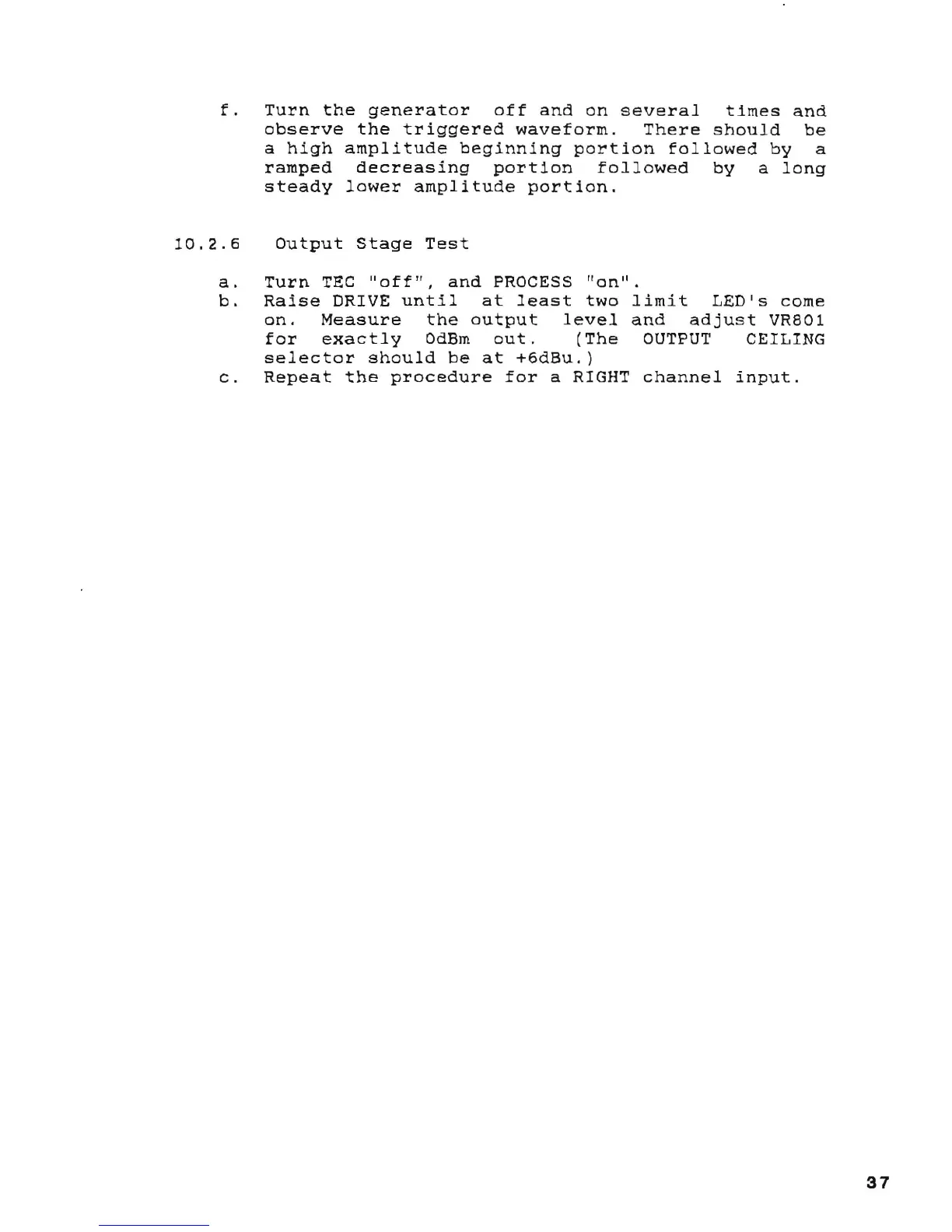

f. Turn the generator off and on several times and
observe the triggered waveform. There should be
a high amplitude beginning portion followed by a
ramped decreasing portion followed by a long
steady lower amplitude portion.
10.2.6 Output Stage Test
a. Turn TEe "off" I and PROCESS lion".
b. Raise DRIVE until at least two limit LEDls come
on. Measure the output level and adjust VR801
for exactly OdBm out. (The OUTPUT CEILING
selector should be at +6dBu.)
c. Repeat the procedure for a RIGHT channel input.
37
