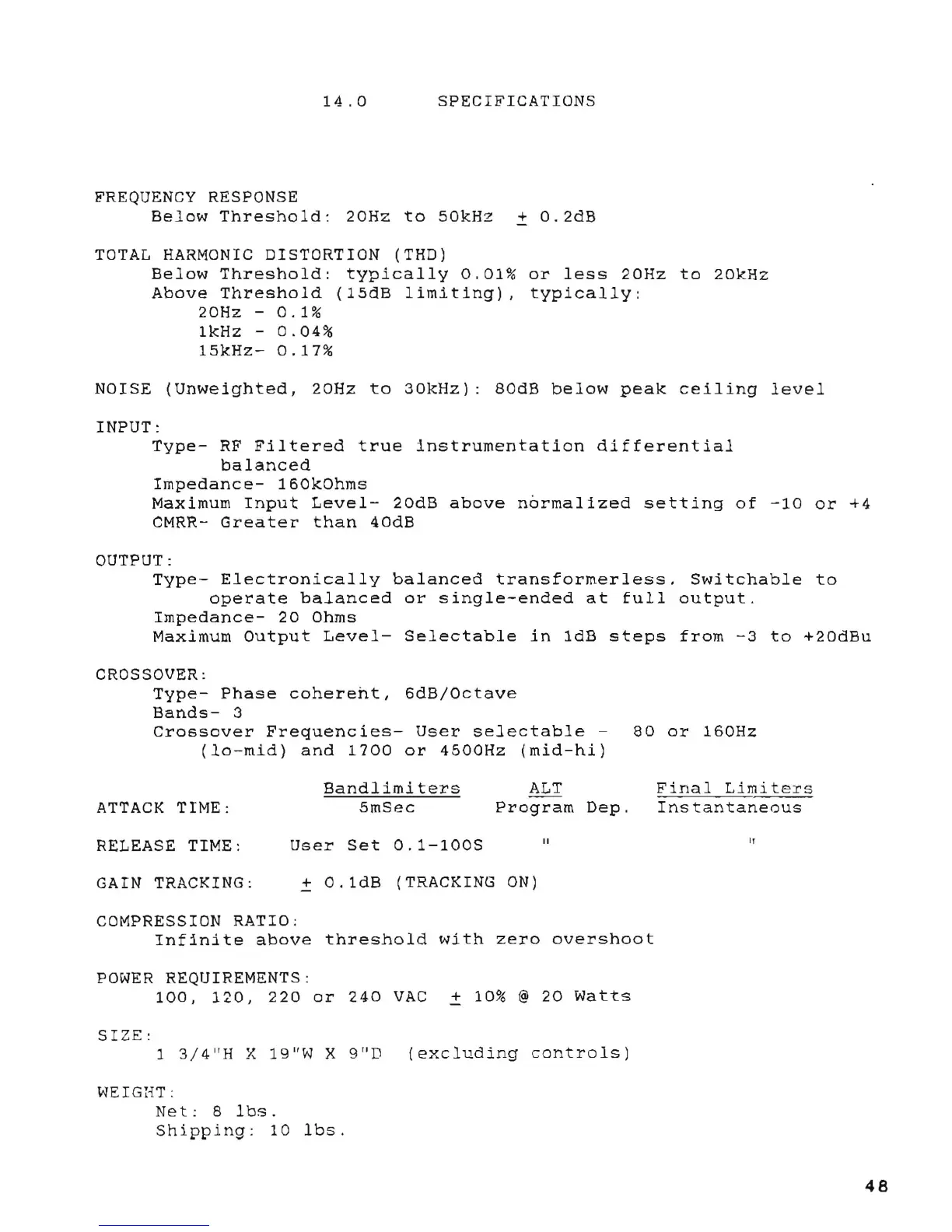

14.0
SPECIFICATIONS
FREQUENCY RESPONSE
Below Threshold : 20Hz to 50kHz + 0.2dB
TOTAL HARMONIC DISTORTION (THD)
Below Threshold: typically 0 . 01% or less 20Hz to 20kHz
Above Threshold (15dB limiting), typically:
20Hz-O.1%
1kHz - 0.04%
15kHz- 0.17%
NOISE (Unweighted, 20Hz to 30kHz): BOdB below peak ceiling level
INPUT:
Type- RF Filtered true instrumentation differential
balanced
Impedance- 160kOhms
Maximum Input Level- 20dB above normalized setting of -10 or +4
CMRR- Greater than 40dB
OUTPUT:
Type- Electronically balanced transformerless. Switchable to
operate balanced or single-ended at full output .
Impedance- 20 Ohms
Maximum Output Level- Selectable in IdB steps from -3 to +20dBu
CROSSOVER:
Type- Phase coherent, 6dB/Octave
Bands- 3
Crossover Frequencies- User selectable - 80 or 160Hz
(lo-mid) and 1700 or 4500Hz (mid-hi)
ATTACK TIME :
RELEASE TIME :
Bandlimiters
5mSec
User Set 0.1-100S
ALT
Program Dep.
"
GAIN TRACKING:
+ O.ldB (TRACKING ON)
COMPRESSION RATIO;
Infinite above threshold with zero overshoot
POWER REQUIREMENTS:
100, 120, 220 or 240 VAC + 10% @ 20 Watts
SIZE:
1 3/ 4"H X 19"W X 9"D (excluding controls)
WEIGHT :
Net: 8 lbs.
Shipping : 10 lbs.
Final Limiters
Instantaneous
"
48
