Apogee Element 24 User Manual

Apogee Element Series User’s Guide

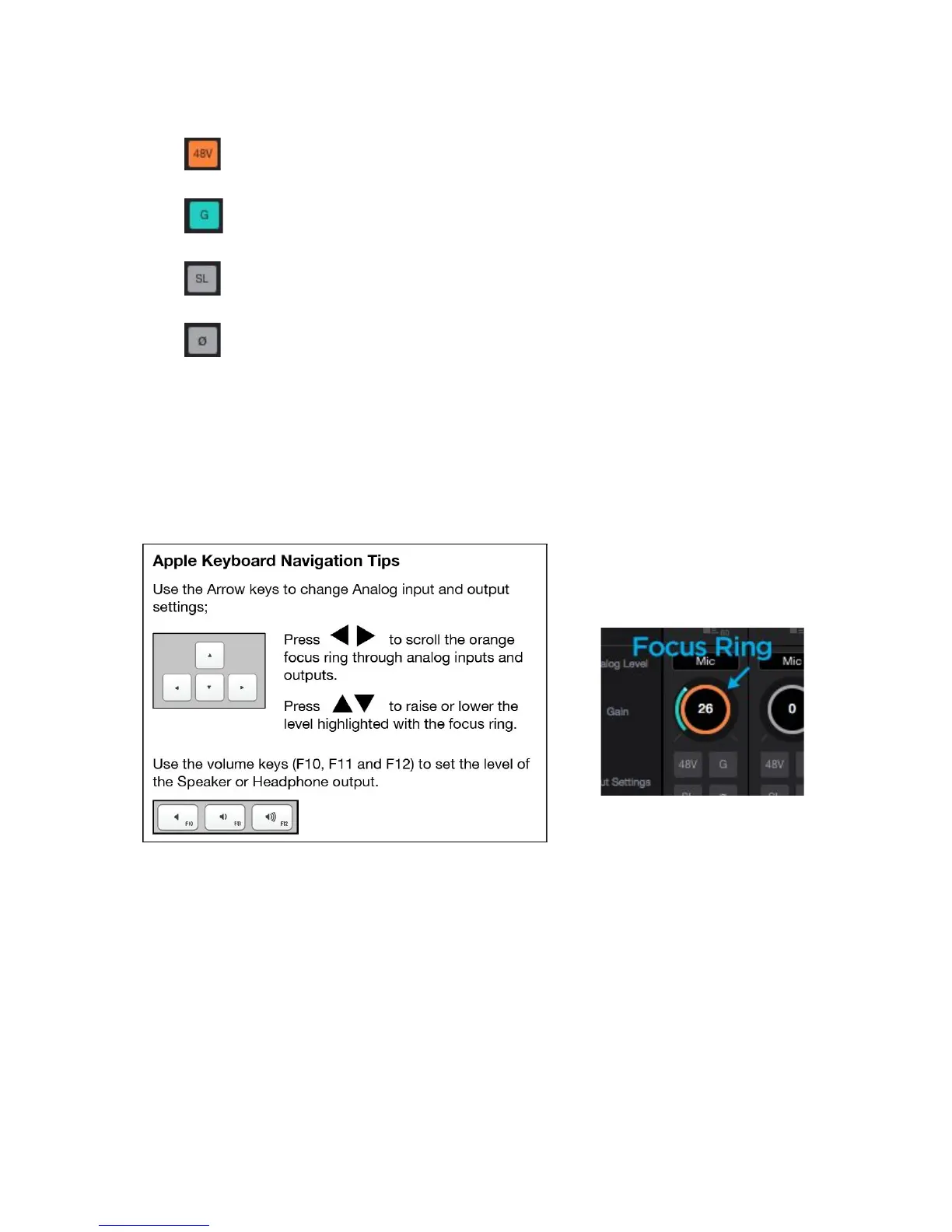

7. Input Settings - Provides options for the various inputs:
● : Use this button to enable 48 volt phantom power on the corresponding Analog In channel. Condenser
mics require 48 volt phantom power to operate.
● Group: The input gain controls of adjacent odd-even channels are adjusted simultaneously. Any level
offsets that exists before inputs are grouped will be preserved after a group is chosen.
● Soft Limit: Select “On” to engage. This option begins to attenuate transient peaks at a threshold of
-4dBfs.
● Polarity Invert: Use this button to invert the polarity of the input signal.
13

Apogee Element 24 Specifications

General

Type	Thunderbolt Audio Interface
Computer Connectivity	Thunderbolt
Form Factor	Desktop
Channels	24
Bit Depth	24-bit
A/D Resolution	24-bit
Analog Inputs	2 x XLR-1/4" combo (mic/line)
Digital Inputs	1 x Optical Toslink (ADAT/SMUX)
Digital Outputs	1 x Optical Toslink (ADAT/SMUX)
Headphones	1 x 1/4"
Sample Rate	192 kHz
Software Compatibility	macOS
Analog Outputs	2 x 1/4" TRS (Main Out)
