Apogee Element 24 User Manual

Apogee Element Series User’s Guide
A/D Expander Snapshot Template

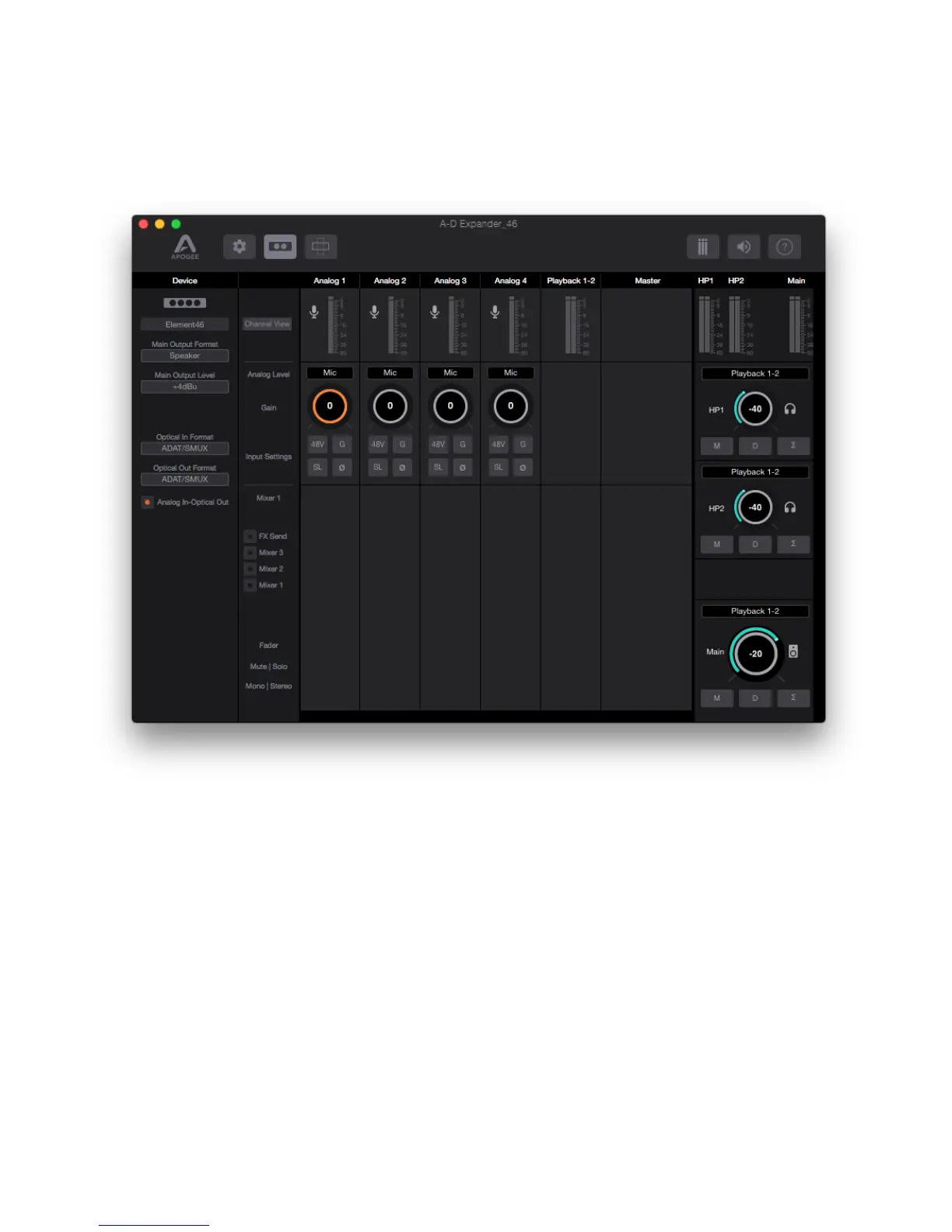

This Snapshot Template facilitates the use of your Element Firewire interface as a simple Analog to Digital Converter (A/D).
This snapshot is useful when wanting to send digital audio to a Digital Mixer, or separate Audio Interface. In this way, you can
utilize the excellent Apogee Preamps and Converters through another digital audio system.
The Individual Analog inputs are sent directly to the ADAT optical outputs.
● Element 24 - Analog input 1 - 2 > ADAT output ch 1 - 2
● Element 46 - Analog input 1 - 4 > ADAT output ch 1 - 4
● Element 88 - Analog input 1 - 8 > ADAT output ch 1 - 8
36

Apogee Element 24 Specifications

General

Type	Thunderbolt Audio Interface
Computer Connectivity	Thunderbolt
Form Factor	Desktop
Channels	24
Bit Depth	24-bit
A/D Resolution	24-bit
Analog Inputs	2 x XLR-1/4" combo (mic/line)
Digital Inputs	1 x Optical Toslink (ADAT/SMUX)
Digital Outputs	1 x Optical Toslink (ADAT/SMUX)
Headphones	1 x 1/4"
Sample Rate	192 kHz
Software Compatibility	macOS
Analog Outputs	2 x 1/4" TRS (Main Out)
