Apogee Element 24 User Manual

Apogee Element Series User’s Guide
Monitor Output Settings
Provides option and controls related to the Main and Headphones outputs of your Apogee Element Thunderbolt interface.
Output Source Selector - Selects the sound source for this output.
The options are:
Playback - Sends a playback channel stereo signal
directly to this output, bypassing all mixers.
Mix or FX Send - Send the stereo signal from this
mixer’s Master to this output
Output Mute button - Mutes the output
Output Dim button - Reduces the output listening level by -15dB
Sum-To-Mono button - Collapse left and right signals to mono at the output.
This combined signal is sent through both Left and Right Outputs and is
useful for verifying the mono-compatibility of a stereo mix.
Output Level Meters - Displayed the output level. Is not affected by the output level control.
Output Level Control - Set the listening level of the hardware output.

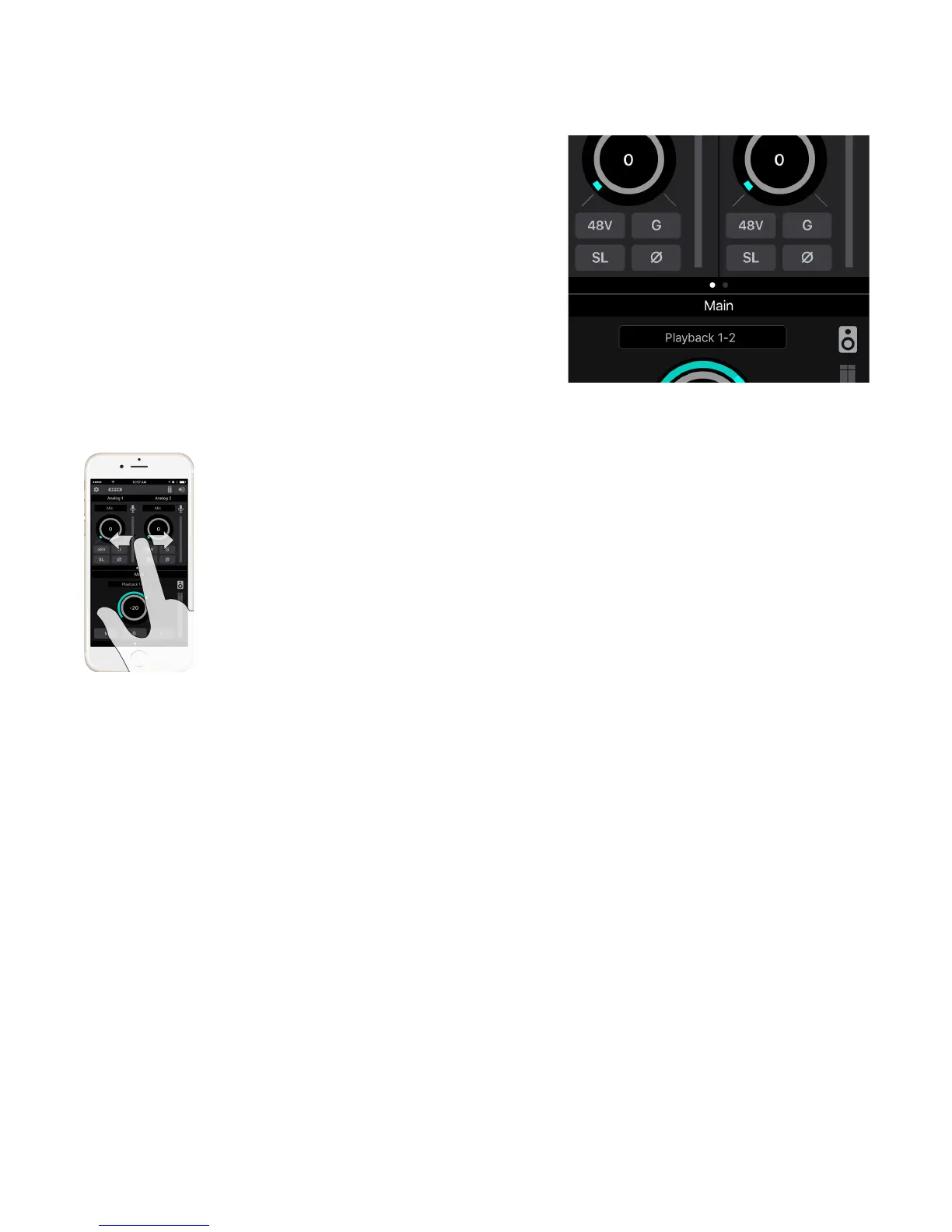

Navigation
- Use your finger to swipe left or right to page to additional analog outputs
20

Apogee Element 24 Specifications

General

Type	Thunderbolt Audio Interface
Computer Connectivity	Thunderbolt
Form Factor	Desktop
Channels	24
Bit Depth	24-bit
A/D Resolution	24-bit
Analog Inputs	2 x XLR-1/4" combo (mic/line)
Digital Inputs	1 x Optical Toslink (ADAT/SMUX)
Digital Outputs	1 x Optical Toslink (ADAT/SMUX)
Headphones	1 x 1/4"
Sample Rate	192 kHz
Software Compatibility	macOS
Analog Outputs	2 x 1/4" TRS (Main Out)
