Apogee Element Series User’s Guide

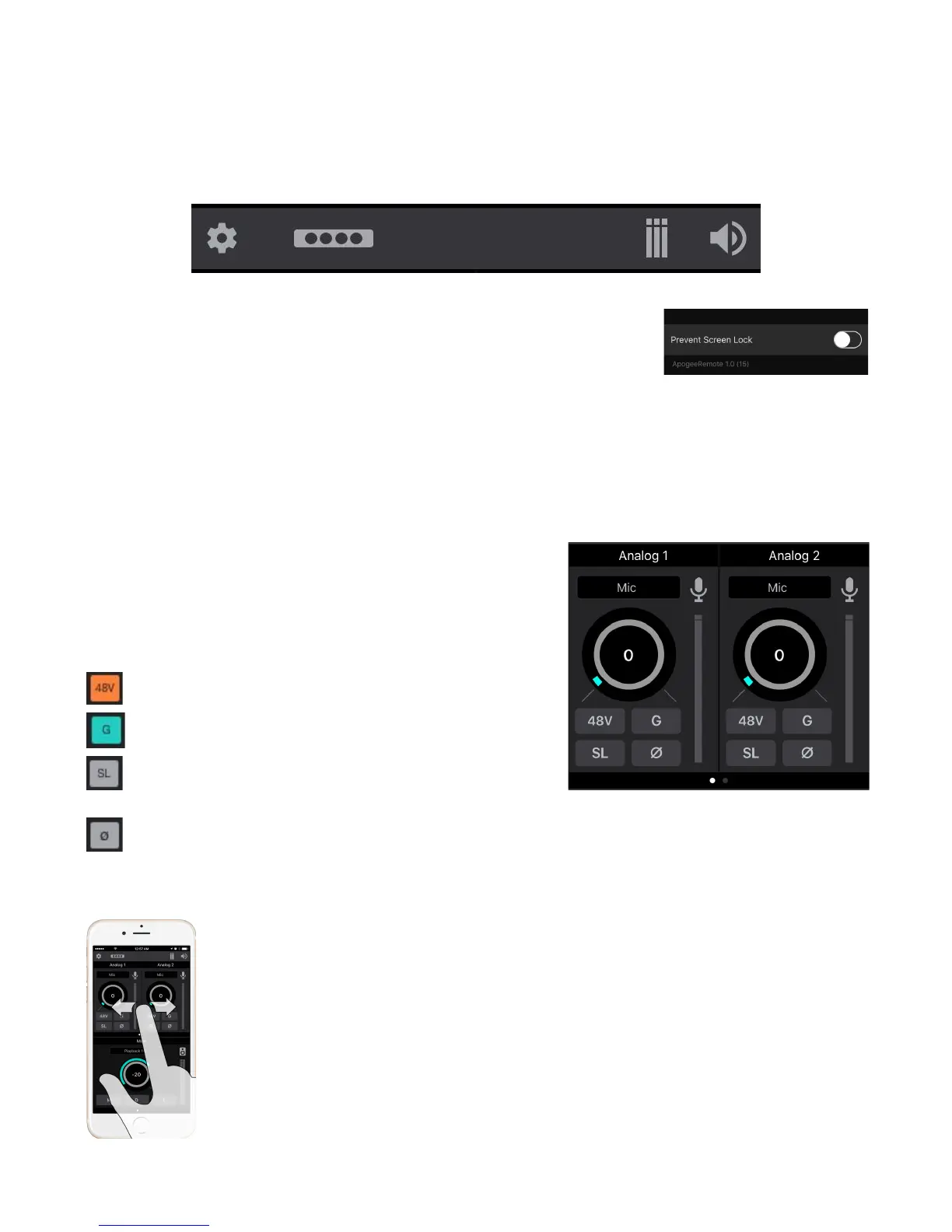

iOS App Toolbar
Preferences - Opens the Preferences Menu
Prevent Screen Lock - When engaged, the iOS device’s screen will not
automatically turn off while the Control app is open.
Devices - Opens the Connect to Device Menu.
Clear Meters - Clears any Peak Hold or Over Hold indicators on the level meters.
Mute All Outputs - Engages Mute on all speaker and headphones outputs. These mutes must be manually disengaged.
Analog Input Settings
Provides options and controls related to the analog inputs of your Apogee Element Thunderbolt Interface
Input Source
- Mic - XLR input is sent through the microphone preamp
- Instrument - ¼” input is sent through a Hi-Z to Low-Z circuit then to the
microphone preamp
- +4dBu/-10dBV - Live level signal from XLR input bypasses preamp
circuit
Gain - Drag your finger up or down on the gain circle to adjust the Input Gain
48V - Toggles phantom power on/off
G - Groups channels into stereo pairs
SL - Soft Limit attenuates transient peaks of the analog input at a
threshold of -4dBfs before the signal is sent to the A/D converter.
- Inverts the input signal’s polarity
Input Icon - The icon provides visual indication of the type of Input Source selected
Input Level Meter - Shows the input signal strength after going through the preamp circuit.
Navigation
- Use your finger to swipe left or right to page to additional analog inputs
19
To Next Page
