Apple Xserve - Your Server at a Glance-Front Panel

10
Chapter 1

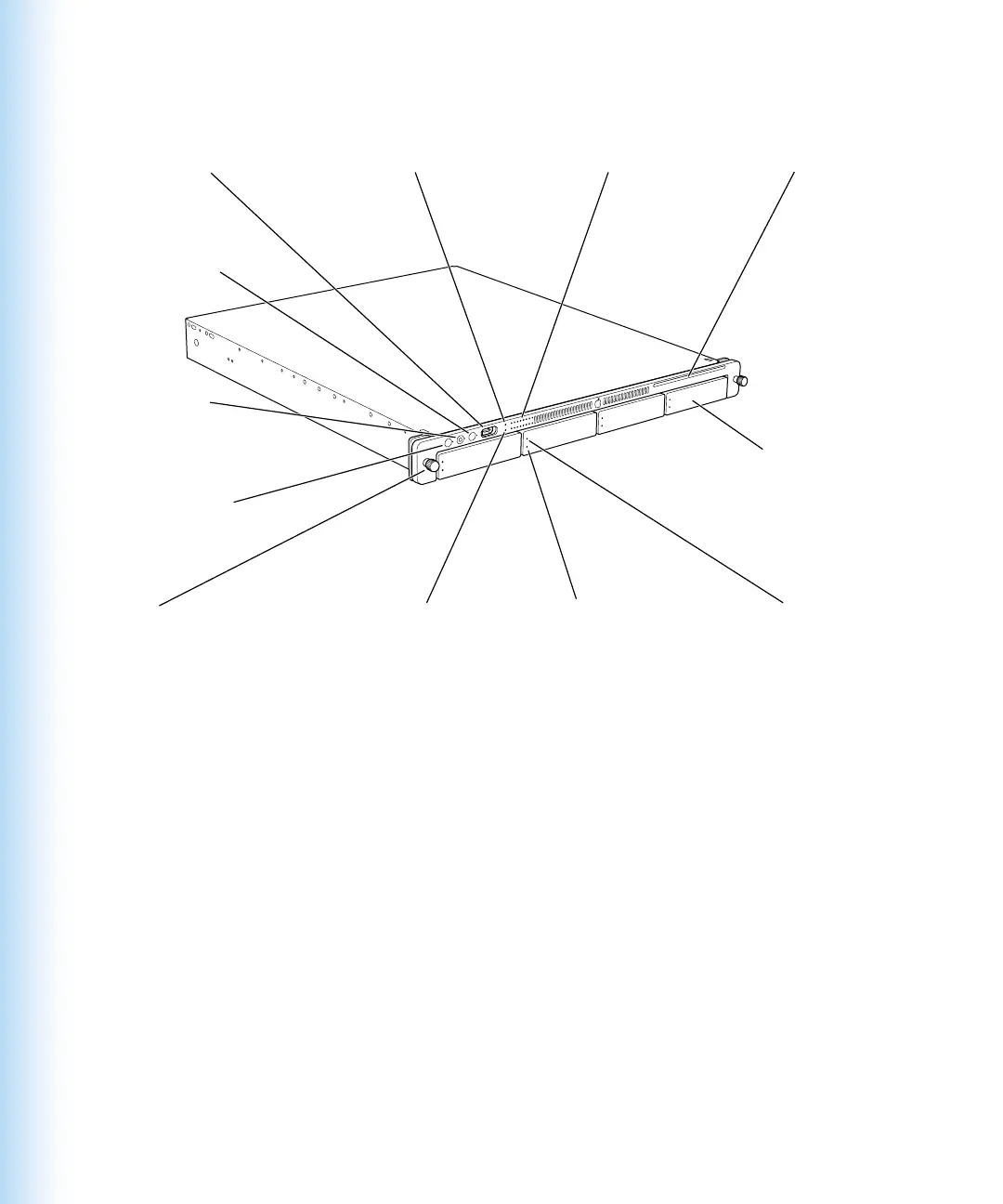

Your Server at a Glance—Front Panel
Securing
thumbscrews (2)
Drive module
status light
Drive module
activity light
Optical drive
System identifier
button/light
Enclosure lock
and status light
FireWire 400 port
Power button /light
Apple Drive Module bays (4)
Ethernet card
link light
System activity lights
Built-in Ethernet
link light
