How to Wire and Mount the AC Powered Sensor
When installing an AC powered sensor (Model CFS10-AC), the mounting location is
determined by the position of the electrical box that will power the alarm. Electrical
power to the box must be disconnected prior to smoke sensor connection
and installation!

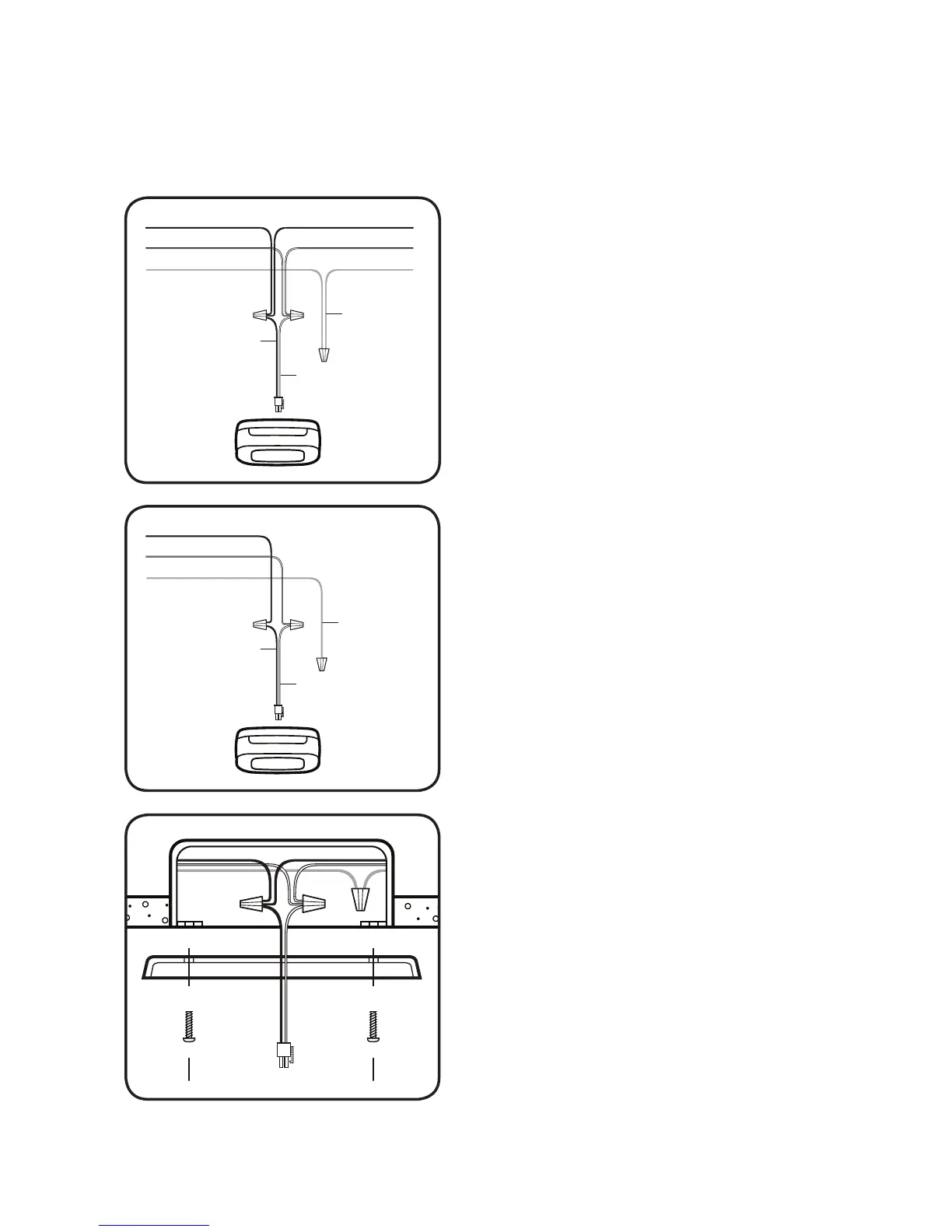

With the AC power turned off, connect
the wire harness provided with the unit.
Connect the black wire of the harness to
the black wire(s) in the electrical box.
Typical
Circuit
End of
Line
Circuit
Align and attach the mounting bracket
with the two screws from the electrical
box. Pass the wire harness through the
center of the bracket.
Plug the wire harness into the back of the
smoke sensor.
Press and twist the sensor clockwise into
place (see Step 4 of previous section).
Reconnect power to the AC lines of the
smoke sensor circuit. The POWER icon
will glow continuously.
Using the supplied orange wire nut, cap
the red wire(s) (not used) and push it
back inside the electrical box.
Connect the white wire of the harness to
the white wire(s) in the electrical box.
