Complete Home Protection
Acceptable Radio Network Smoke Sensor Spacing
Each unit will also act as a repeating station,
so any signal received by a sensor will be
rebroadcast.
After final installation, test all sensors
for proper wireless inter-connection.
Simply press and release the test
button of a sensor while having a
helper observe the remote sensors.
Maximum
Spacing in
Open Area
200’ (70m)
The proprietary network communicates using
radio frequencies between 905.2MHz and
913.2MHz.
The range of the radio has been tested to 200
feet (70m) in open area distance testing.
Applied Fire Technologies recommends complete home fire/safety protection.
This can be best achieved by installing a combination of Smoke, CO, Heat
Sensors, BedShakers, Water Sensors and a Comm Link in the appropriate
locations throughout the home.

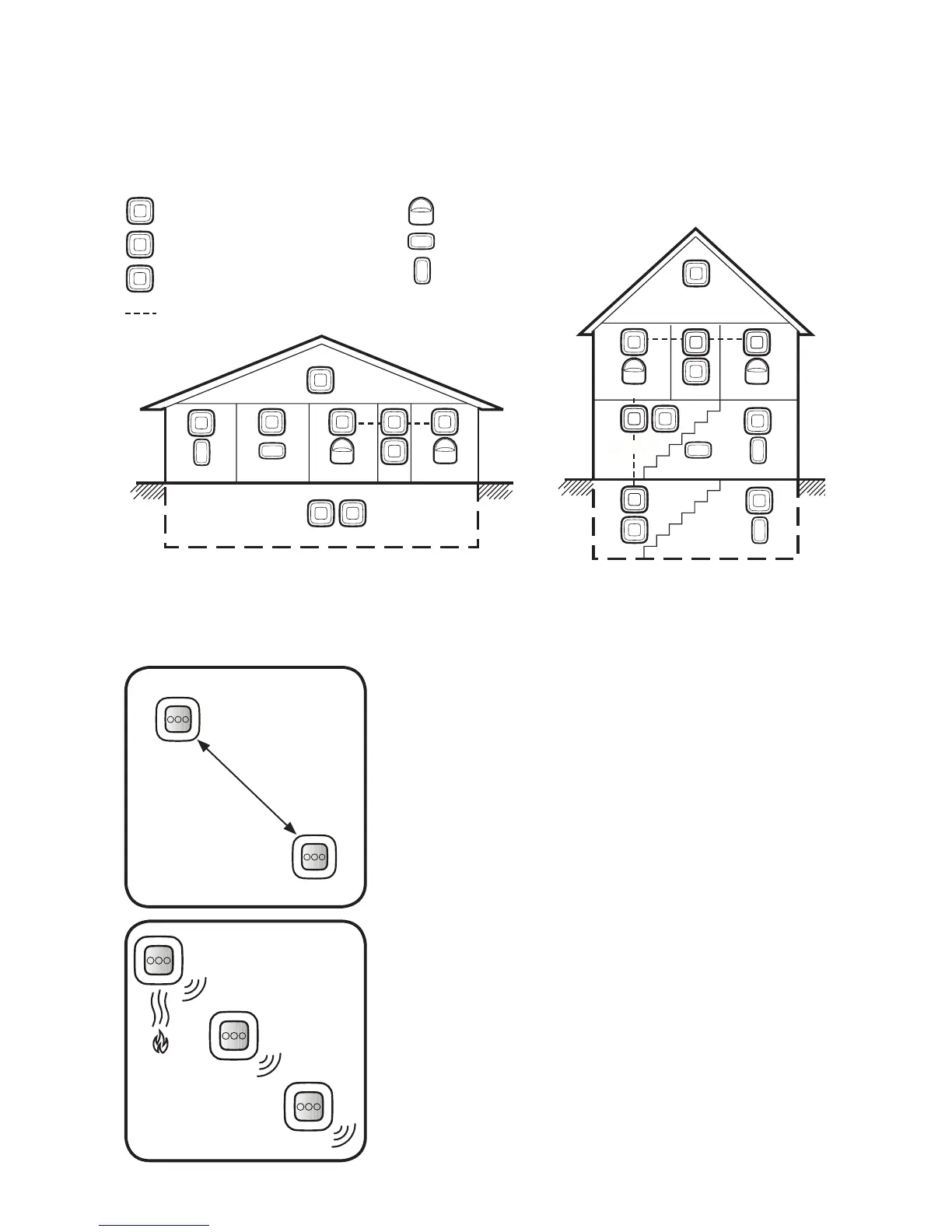

Single Story Homes
Attic
Kitchen Living Rm
Bedroom
Hall
Bedroom
Crawl Space
Two Story Homes
Attic
Bedroom
Bedroom
Hall
Living Rm
Kitchen
Utility Room
Basement
Recommended BedShakers
Recommended Heat Sensors
Required Interconnections
Minimum Required CO Sensors
Minimum Required Smoke Sensors
Recommended Comm Link
Recommended Water Sensors
