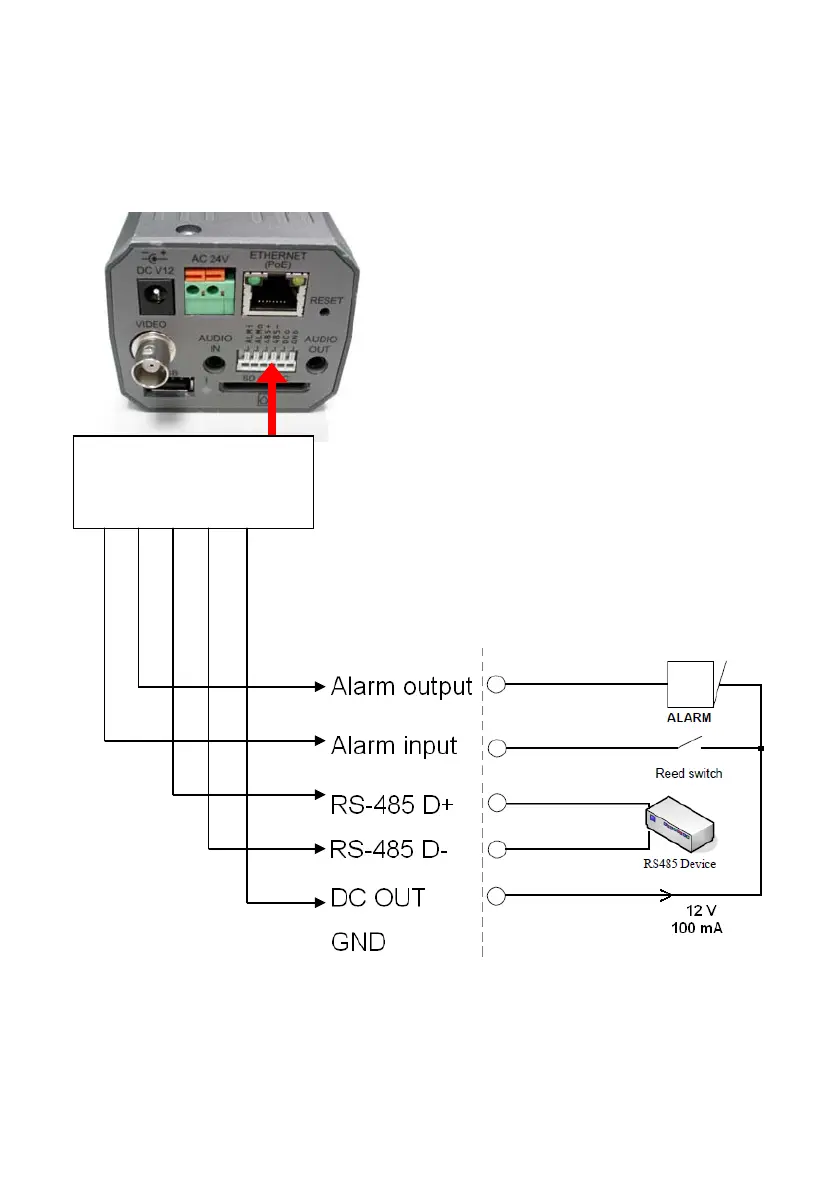

2.5 The Alarm wiring diagrams
The LC-7516 IP Box Camera (PoE)
ALM i
ALM o
485 +
485 -
DC o
GND
+12V
+12V
