2. DESCRIPTION OF THE SURFACE
2.1 The LC-7516 IP Box Camera (PoE)

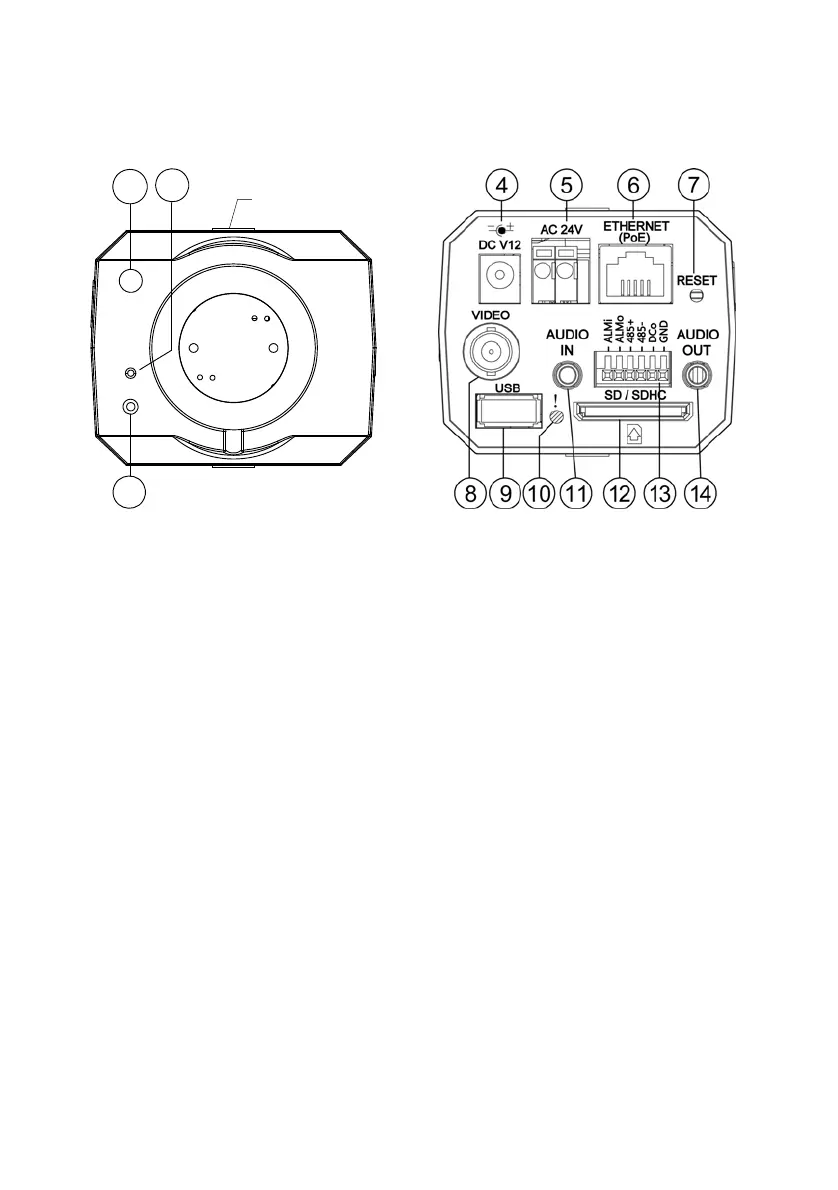

Front Panel and Rear Panel:
-- Front Panel -- -- Rear Panel --
1
3
2
1/4＂-20UNC
1. Light Sensor: Registers the quality of light in the camera’s environment, and controls the iris
shuttle to provide better information concerning the light.
2. MICROPHONE: The IP Camera has an additional audio function. The device has a
microphone built into its front panel which records sound.
3. POWER indicator: Indicates the power status of the unit.
4. Plug Inlet: A DC 12V inlet that connects to an external power supply.
5. Plug Inlet: An AC 24V inlet that connects to an external power supply.
6. ETHERNET 10/100 Connector: This is a standard RJ-45 connector for 10/100 Mbps Ethernet
networks. PoE (Power over Ethernet) function:
Provides power to the device via the same
cable as used for the network connection.
7. RESET: Recover to factory default. (Refer to section 2.4 The Reset Button.)
8. VIDEO OUT Connector: The connector provides the unit’s composite video signals to a
monitor. (This connector adjusts and improves the images.)
9. USB port: The user can use a USB device cable to connect the IP camera to the USB port on
the PC.
10. LED indicator: The green light indicates the unit is activating and the SD card cannot be
removed.
11. AUDIO IN: The connector is used to connect the audio output from other devices to the camera.
12. SD/ SDHC CARD slot: This is used for updating system software and archiving / accessing
critical images.
13. GPIO: This is a 6-PIN connector including the ALARM IN/OUT, RS-485, DC OUTPUT and
GROUND items for connecting with external devices.
14. AUDIO OUT: Provides the camera’s audio signal to a speaker or stereo.
