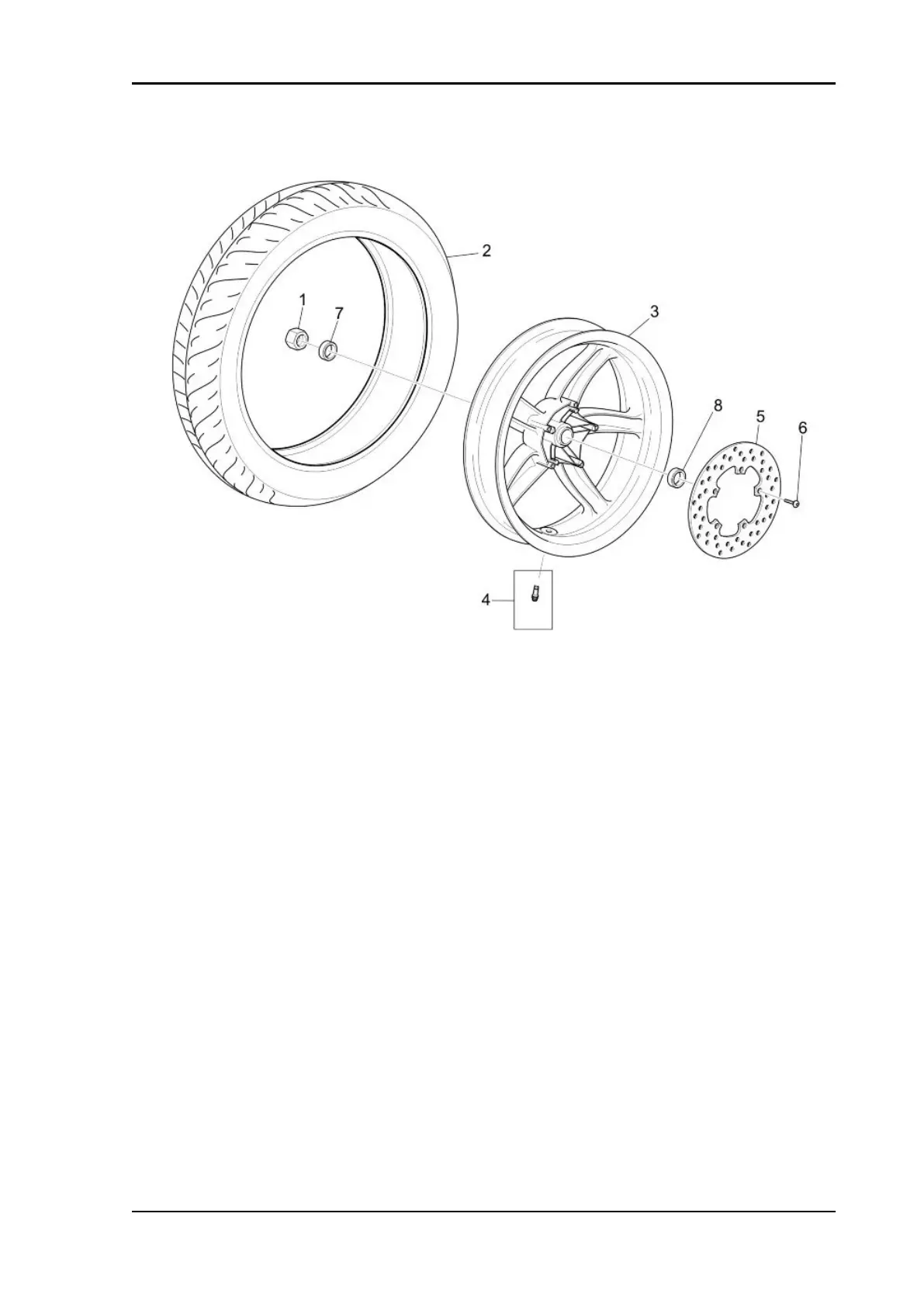

Removing the rear wheel
key:
1. Rear wheel nut
2. Rear tyre 120/80-16"
3. Grey rear wheel
4. Tubeless valve
5. Brake disc
6. Screw M8x30
7. Outside spacer
8. Int. spacer
The procedure to remove the rear wheel is described below sequentially:
•
Remove the silencer.
•
Remove the rear brake calliper.
SCARABEO 125 i.e. - 200 i.e. Suspensions
SUSP - 167
