Aqua Lung CORE - Tools and Service Kits List

Service Manual Core 1
st
stage
Service Manual Core 1
st
stage
Rev. 05/2015 18

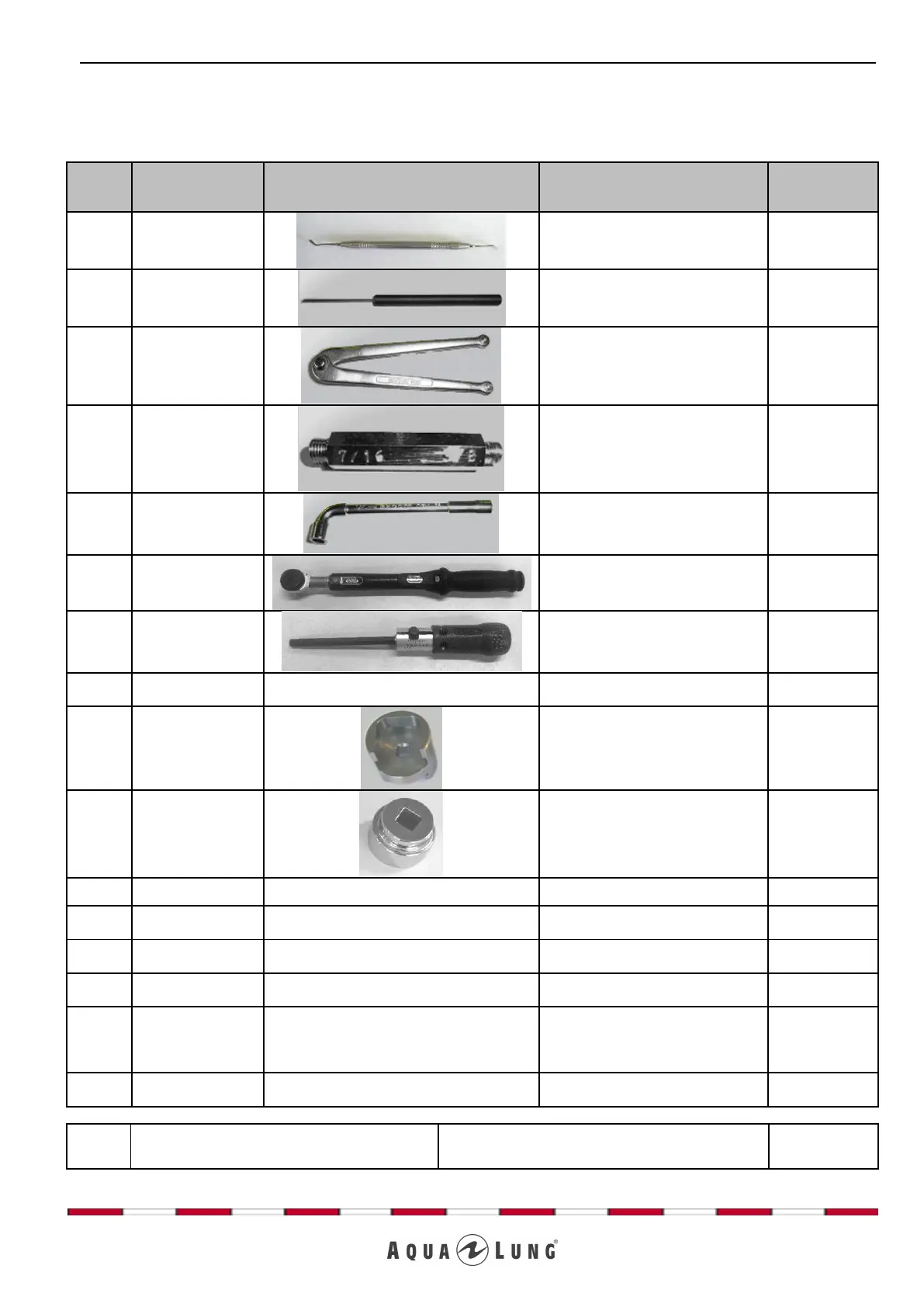

Table 2. Tools and service kits list
REF
DESCRIPTION
PICTURES
APPLICATION
US PART NO.
506001
O-ring tool
Fitting and removing O-rings
944022
116236
Disassemble tool
HP club
Seat assembly / disassembly
109437
129198
Hook wrench
Dry chamber plug screwing /
unscrewing
129198
116230
HP disassembly
tool
1
st
stage holding in vice
100395
116239
1/4’’ box wrench
Filter and O-ring installation
n/a
122154
Torque wrench
SAM
Yoke retainer, wet and dry
chamber body, DIN screw, plug
screwing / unscrewing
n/a
122155
Facom screw
driver A404 2-10
NM
Yoke and DIN shutter valve
screwing / unscrewing
n/a
125237
DIN/yoke adaptor
300B
DIN shutter valve assembly /
disassembly
n/a
122152
Socket dry ch
Legend/Mistral
Wet and dry chamber body
screwing / unscrewing
122152
A11001
Socket inlet fitting
26mm
Yoke retainer screwing /
unscrewing
111001
n/a
7/16 ‘’ socket
DIN screw screwing / unscrewing
n/a
n/a
17mm key
ACD DIN union screwing /
unscrewing
n/a
n/a
9/16’’ key
Hose HP side screwing /
unscrewing
n/a
n/a
3mm Allen key
Yoke shutter valve screwing /
unscrewing
n/a
n/a
4mm Allen key
HP and MP plugs, Din shutter
valve screwing / unscrewing
Pressing of anti-extrusion washer
and O-ring against plug bottom
n/a
n/a
8mm Allen key
MP adjusting screw, plug, yoke
retainer screwing / unscrewing
n/a
128016
Service kit first stage balanced diaphragm
HP Core yoke, HP Core DIN, HP Core supreme
yoke, HP Core supreme DIN
n/a
