ilux Digital Bath with diverter installation instructions Page 10

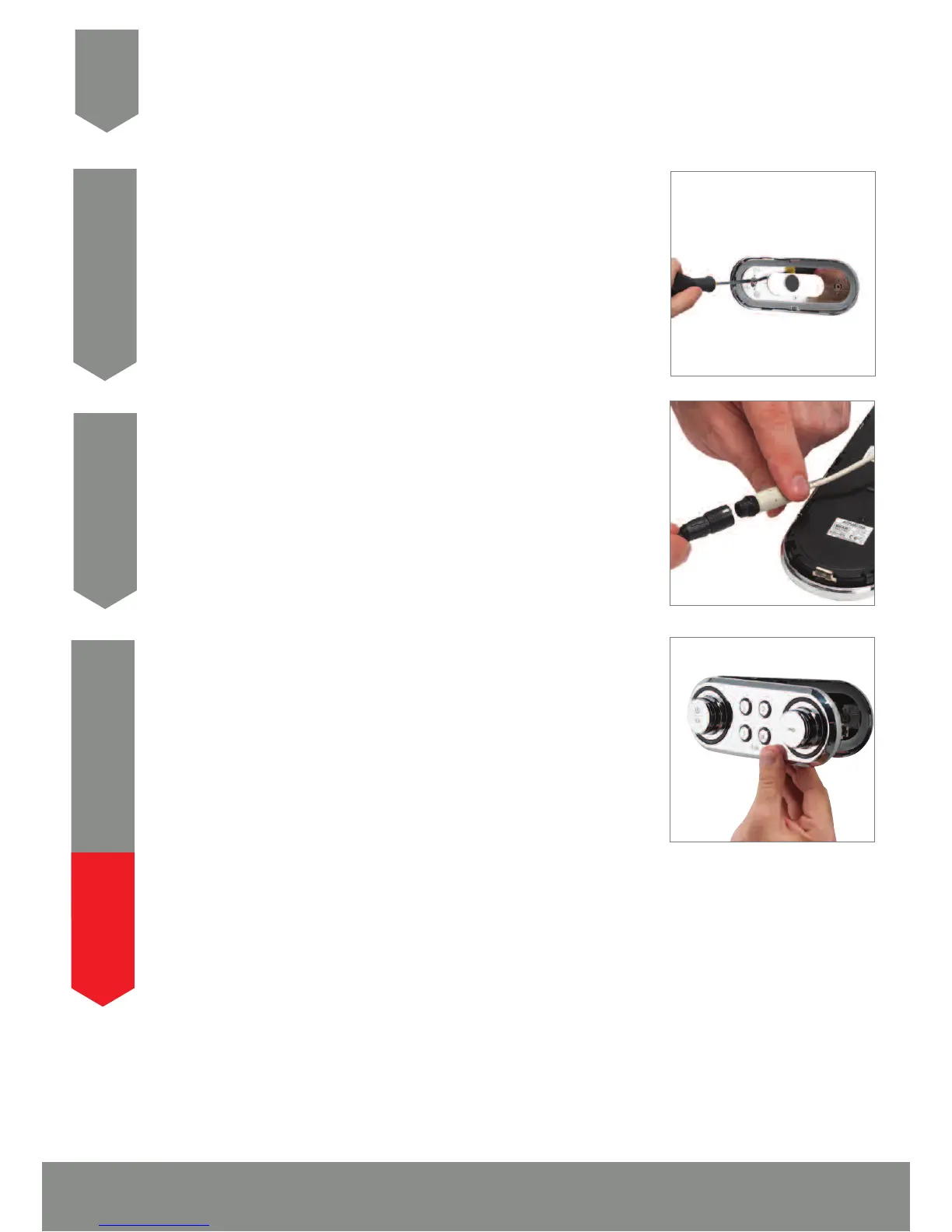

Drill and prepare suitable wall fixings for the two mounting plate screws. Drill a 16mm hole at the
appropriate position as previously marked within the lozenge for the data cable, ensuring there is
sufficient room for the data cable and connector.
12
13
Hook the left side of the controller into position, then carefully click
the controller into place.
15
Connect the data cable to the rear of the controller.
14
To remove the controller from the mounting plate, depress the fixing clip on the right hand rear edge
of the controller and carefully remove the controller assembly away from the mounting plate
and set aside.
!
Apply a thin bead of mastic to the mastic groove at the rear of the
mounting plate. Secure the mounting plate to the wall using the
screws provided, if suitable.
