Aqualisa ilux - Bath Control Mounting and Wiring; Diverter and Outlet Pipework Preparation; Mounting Plate Installation

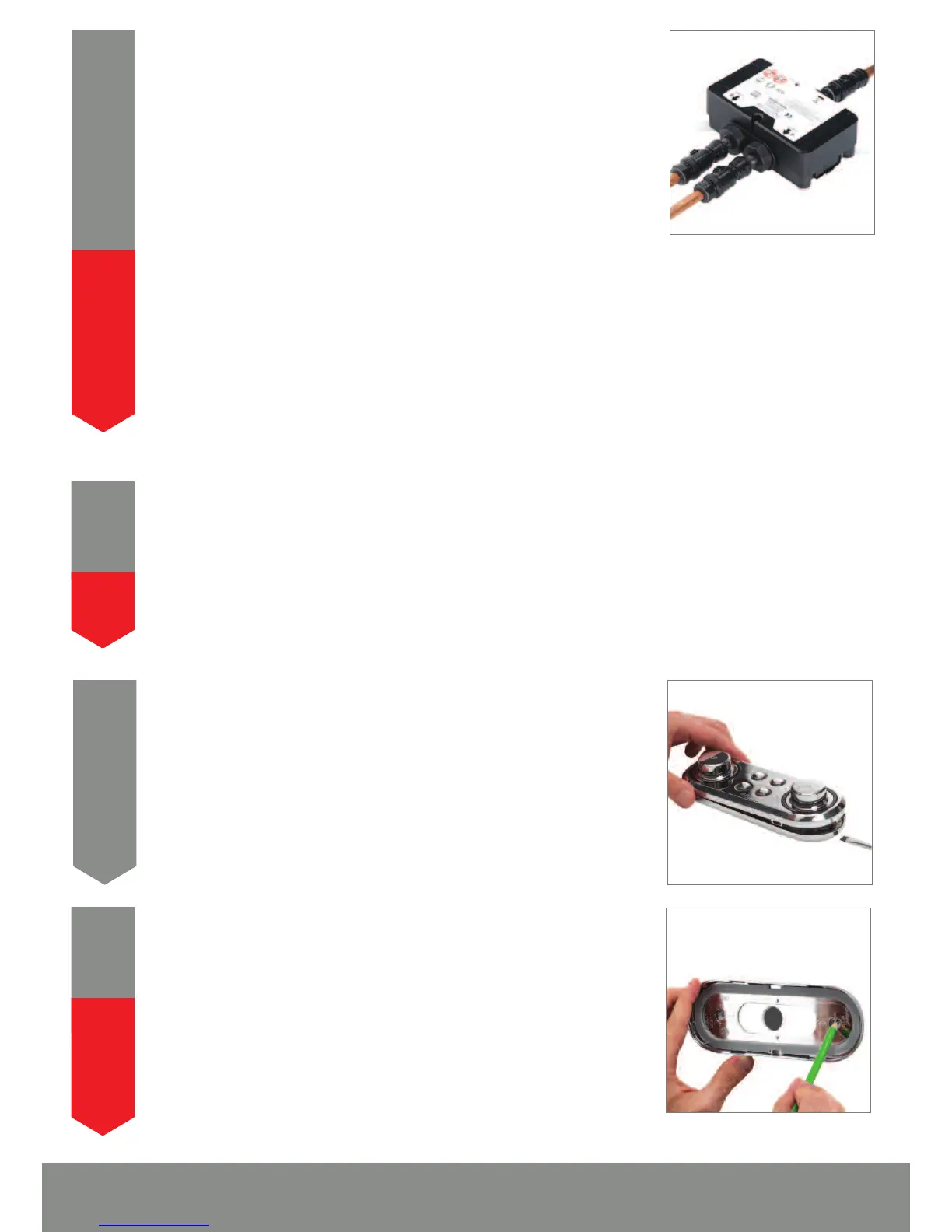

ilux Digital Bath with diverter installation instructions Page 10
Depress the fixing clip at the end of the controller assembly and
carefully pull the controller away from the mounting plate.
10
Connect the mixed water outlet pipe from the Digital processor to the
inlet pipe on the Digital diverter ensuring the isolation valves are
connected to the diverter valve outlet, with the arrows correctly aligned
according to the direction of flow. Using pipe clips as appropriate,
ensure that all pipe work is perpendicular to the Digital
processor and Digital diverter, i.e. not putting any strain on the
fittings.
8
TO ENSURE OPTIMUM PERFORMANCE USE THE MINIMUM AMOUNT OF ELBOWS ON ALL PIPES
LEADING TO AND FROM THE DIGITAL PROCESSOR AND DIGITAL DIVERTER.
TO MAXIMISE FLOW RATES WE RECOMMEND USING COPPER PIPE WITH THE MINIMUM AMOUNT
OF ELBOWS ON ALL PIPES LEADING TO AND FROM THE DIGITAL PROCESSOR AND DIGITAL
DIVERTER.
!
Prepare and run the pipes to the proposed siting for the bath outlet and shower hose connection,
depending on the accessories purchased. Ensure the pipe work connections have been flushed
through.
9
If fitting a bath outlet, a suitable non restrictive double check valve (not supplied) MUST be fitted to
the blended outlet pipe in line with current Water Supply Regulations.
!
Place the bath control mounting plate onto the finished wall surface
in the desired location and mark the fixing and data cable entry points.
11
!
