ilux Digital Bath with diverter installation instructions Page 9

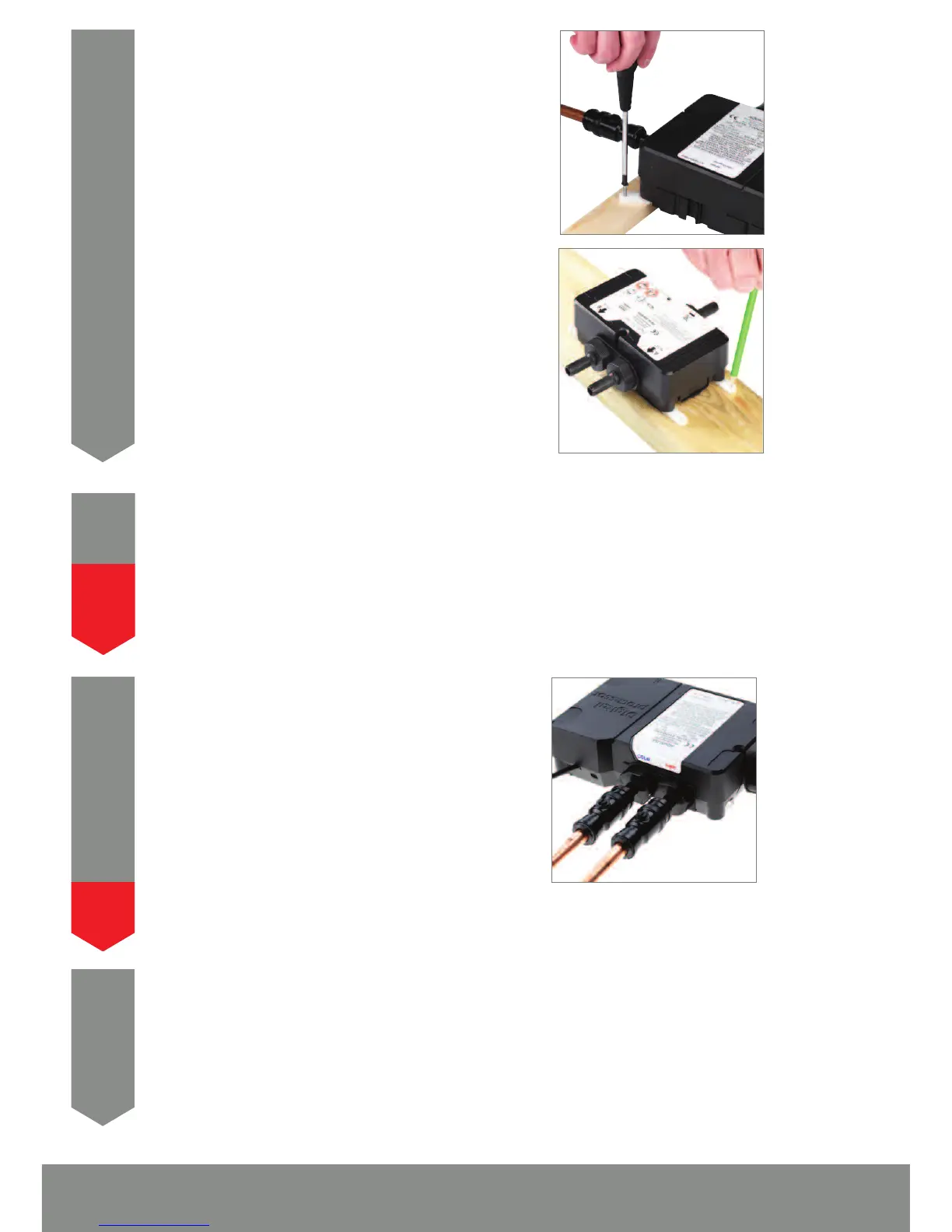

Place the Digital processor and diverter valve on a solid
mounting surface, and place the fixing feet into suitable
positions. Mark then drill and prepare suitable fixings be-
fore securing the processor and diverter to the mounting
surface using the screws provided, if suitable.
4
Flush through both hot and cold supply pipes.
5
The maximum hot water inlet temperature must be no more than 65˚C.
!
Attach the supply pipes to the Digital processor,
ensuring that the cold and hot feeds are fitted into
the appropriately marked inlets.
6
DO NOT SOLDER NEAR TO PLASTIC COMPONENTS.
!
Prepare and run a pipe from the mixed water outlet on the Digital processor through to the
Digital diverter inlet. (The Digital diverter can be fitted directly onto the processor outlet if
required on the HP/Combi system installation. A cranked elbow is supplied for the Gravity Pumped
system for ease of installation. Refer to aerial view images in instruction 1).
