Midas exposed valves
!
In addition to the guide below it is essential that the written instructions overleaf are read and understood and that
you have all the necessary components (shown on pages 9 & 10) before commencing installation. Failure to install
the product in accordance with these instructions may adversely affect the warranty terms and conditions. Do not
undertake any part of this installation unless you are competent to do so. Prior to starting, ensure that you are
familiar with the necessary plumbing regulations required to install the product correctly and safely.

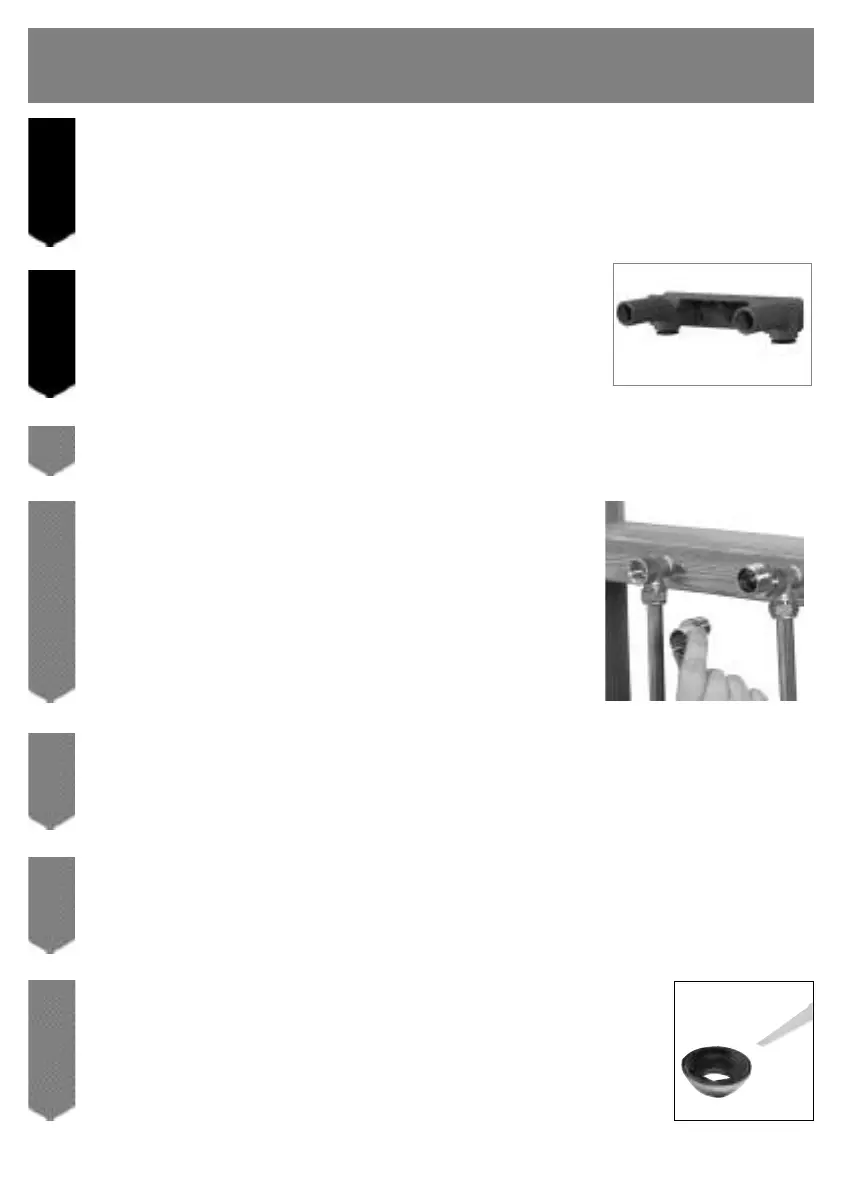

1
Eccentric elbows are provided to allow for inlet pipework adjustment between 140mm – 160mm centres.
Construct suitable
connections terminating in ½”BSP female fittings.
2
If required, apply jointing tape to the threads and fit the eccentric elbow
connectors sufficiently to achieve a water tight seal, terminating at 150mm
centres to suit the exposed valve inlets.
!
A first fix easy fit fixing bracket is available separately, product code MD300EFB,
designed for ease of installation. If required, fit the easy fit bracket following the
installation instruction sheet supplied with the bracket and proceed to step 6 overleaf.
The exposed valve and fixing bracket assembly MUST NOT be used as a grab rail
support method.
3
Ensuring adequate provision to allow the water to discharge safely to waste, turn on the supplies to flush the system
through. Attach pressure test equipment and pressure test the system in accordance with Water Supply Regulations.
4
Ensure the ¾” supply connections are temporarily capped to prevent any dirt of dust ingress into the pipe work during the
making good process. Remove the caps prior to connecting the shower valve.
5
Apply a thin bead of mastic to the rear of the cover plates. Place the cover plates onto the exposed
¾” threads, flush with the finished wall surface.
