Aqualisa SMART - SMART INSTALLATION; Digital TV Interference Prevention

This product must be installed by a competent person in accordance with the
relevant Water Supply Regulations. Prior to installation, ensure all literature
supplied with this product is read and understood. We have taken great care
to ensure that this product reaches you in perfect condition, however should
any parts be damaged or missing please contact your point of purchase. If you
require assistance please contact the Aqualisa helpine. The shower system is
supplied with universal fixings intended to secure it to a suitable wall. In addition
to the guide below, it is essential that the important information (above) is
read and understood and that you have all the necessary components before
commencing installation. Refer to the separate Components List for reference.
SMART INSTALLATION
Installation videos are available on our website www.aqualisa.co.uk/installation-
videos or alternatively, scan the QR code on the reverse of this guide.

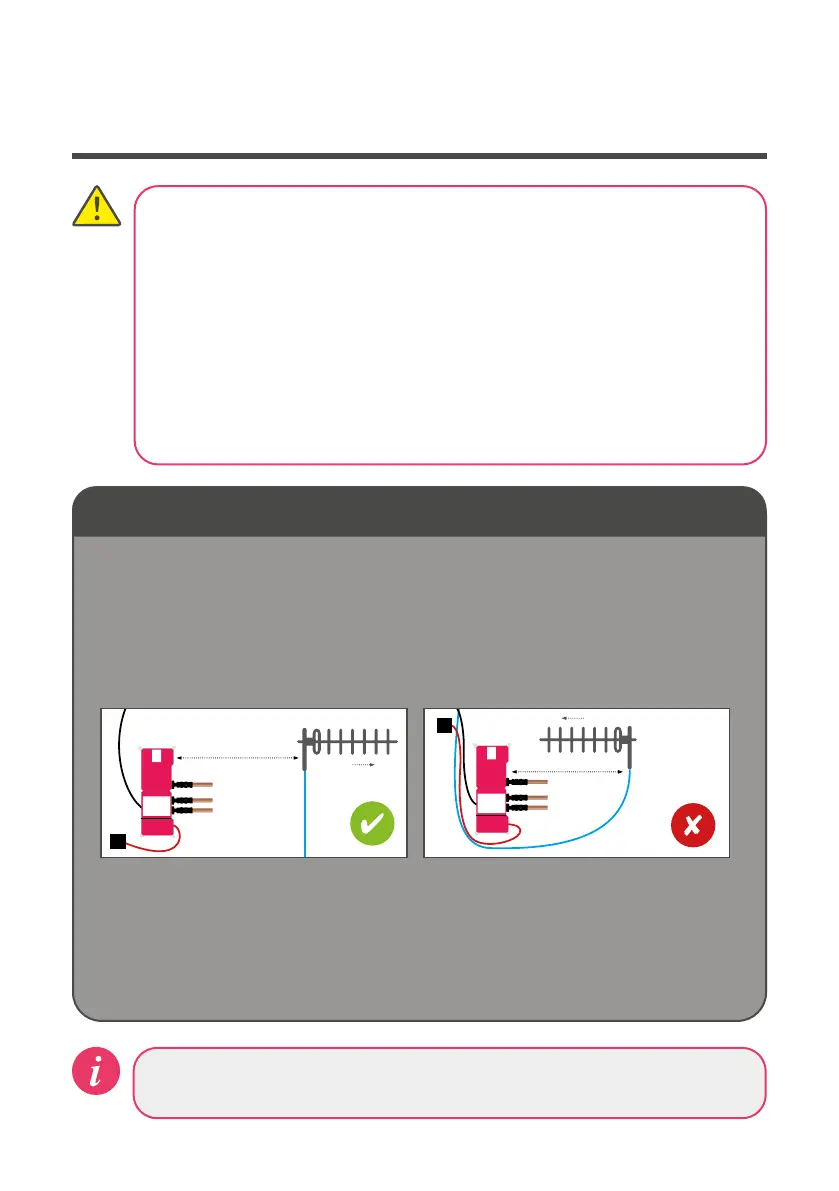

Although the Aqualisa SmartValve
™
complies with all relevant EMC standards,
if incorrectly sited, it may interfere with digital TV reception. Please follow the
recommendations below to minimise this eect.
See recommended layouts below.
Images of Aqualisa SmartValve
™
for illustration only, refer to instruction 1 for orientation.
• Route cables separately, and as far apart from each other as possible.
• Aerial to point away from the Aqualisa SmartValve
™
.
• Ensure the distance between the Aqualisa SmartValve
™
and the aerial is as large as possible.
AERIAL
LARGEST POSSIBLE DISTANCE
DATA
CABLE
POWER
CABLE
CABLE
TO TV
HIGH PROBABILITY
OF INTERFERENCE,
BOTH RADIATED
AND CONDUCTED
POWER
CABLE
CABLE
TO TV
DATA
CABLE
AERIAL
SHORT DISTANCE
LAYOUT WHICH COULD
CAUSE PROBLEMS
LOWEST PROBABILITY OF
INTERFERENCE
Digital TV Interference
