Isolation valves are supplied with the Aqualisa
SmartValve™ and diverter (where supplied) and
must be fitted on all inlet and outlet connections.
All connections require 15mm pipe, and all pipe work
should be supported.
For gravity fed installations, 22mm pipe work should
be run as close to the Aqualisa SmartValve™ as possible
before reducing down to 15mm.

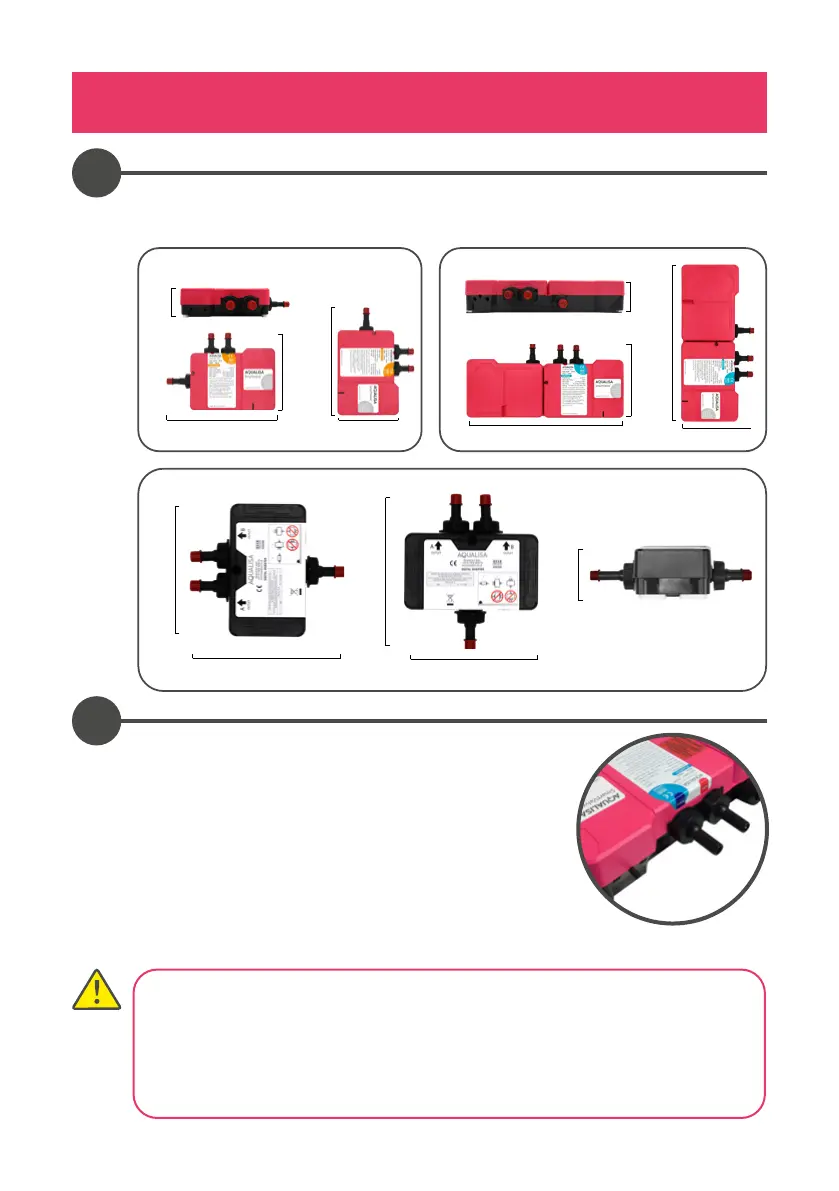

To ensure safe operation and installation of this product, the Aqualisa SmartValve
™
and diverter (where supplied) MUST be installed in one of the orientations shown.
To ensure optimum performance we recommend using copper pipe with a
minimum number of elbows. To minimise post shower dripping outlet pipework
should have a gentle gradient rise away from the Aqualisa SmartValve™ or
the diverter (where supplied). Special notes for plastic pipework, refer to the
Important Information (Connections) section.
300 mm
210 mm
70 mm
300 mm
210 mm
210 mm
450 mm
450 mm
210 mm
70 mm
1
2
AQUALISA SMARTVALVE
TM
& DIVERTER
70 mm
240 mm
200 mm
240 mm
200 mm
