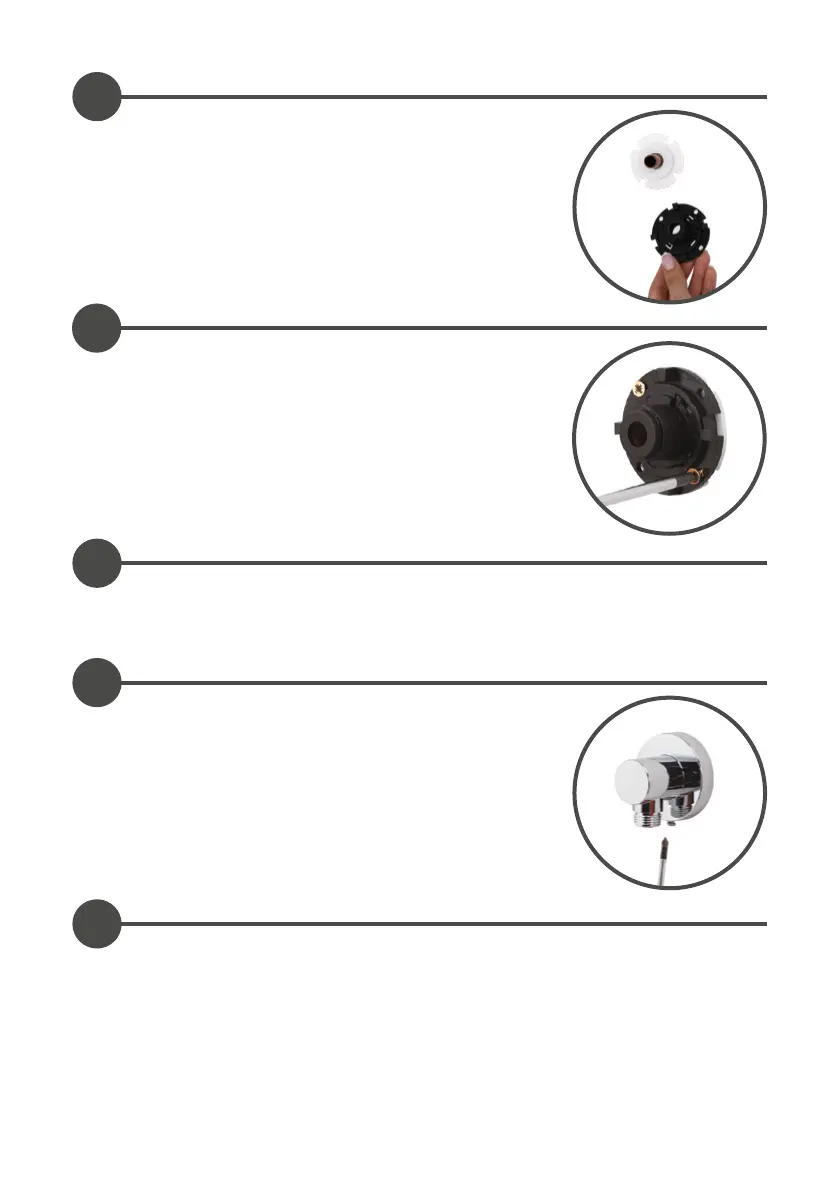

Aqualisa SMART - Securing Wall Mounting Plate to Wall; Mounting Wall Outlet Assembly; Fitting Rail Kit Components

Secure the wall mounting plate to the wall using the
screws provided (if suitable).
7
Ensuring the locking screw hole is positioned at the
bottom, place the wall outlet mounting plate onto the
pipe assembly and mark and prepare the fixing points,
using the fixings provided (if suitable).
6
Place the ‘O’ ring on the recess of the spigot section on the mounting plate, oer the
wall outlet onto the mounting plate in the 5 o’clock position and rotate clockwise until
a stop is reached.
8
Refit the locking screw taking care not to overtighten.
9
To fit the rail, prepare two fixing holes up to a maximum of 657mm apart.
N.B. The rail kit supplied utilises a floating bracket that can be positioned to suit
existing screw holes on retrofit installations.
10
