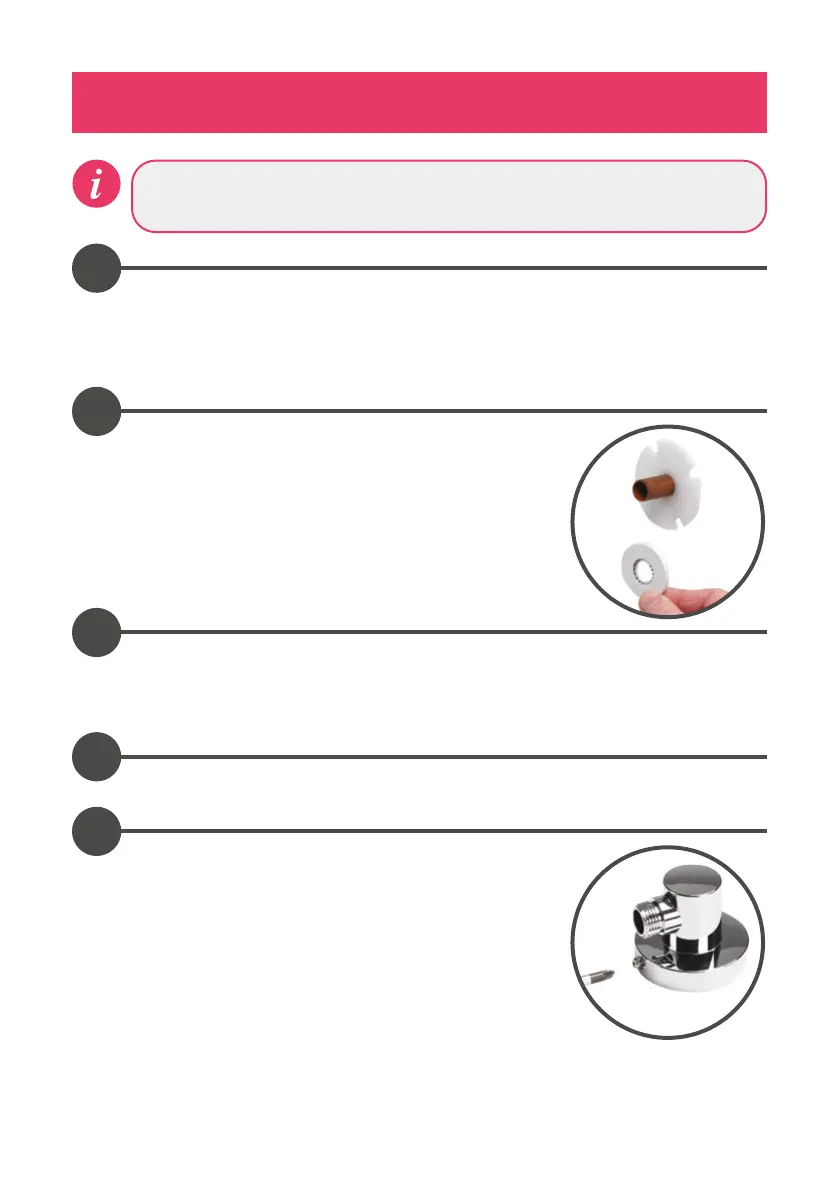

ADJUSTABLE HEIGHT HEADS
Ensure the finished wall surface is even, prepare pipework from the Aqualisa
SmartValve™ or diverter (where supplied) to the required position for the hose
outlet using a Ø15mm pipe. Slide the wall spacer down the projecting pipe until
flush with the finished wall surface.
1
Trim the projecting pipe to a length of 15-22mm, measured from the face of the gripper
ring, using a suitable cutter. If a hacksaw is used, the pipe end must be carefully de-
burred and chamfered.
3
Clean and lubricate the pipe using a suitable (silicone based) lubricant.
4
Remove the locking screw, rotate the chrome outlet
assembly and remove the outlet from the wall mount
-
ing plate by carefully leavering with a flat bladed
screwdriver.
5
Slide the 15mm gripper ring down the projecting pipe
until flush with the wall spacer fitting.
2
Installation videos are available on our website www.aqualisa.co.uk/installation-
videos or alternatively, scan the QR code on the reverse of this guide.
