Ensuring the hose washer is in the correct position; attach the hose to the wall
outlet or the bottom of the exposed rail.
18
Place the rail end caps into both brackets and push firmly
into position.
17
Align the fixing hole of the bottom bracket with the corresponding holes on the rail
assembly, ensuring the smaller sized hole on the rail is closest to the wall. Secure the
bottom rail bracket to the wall using the long wall screw.
16
Run the shower for a few seconds to clear any debris and to check for any leaks.
Pass the hose through the gel hook.
19

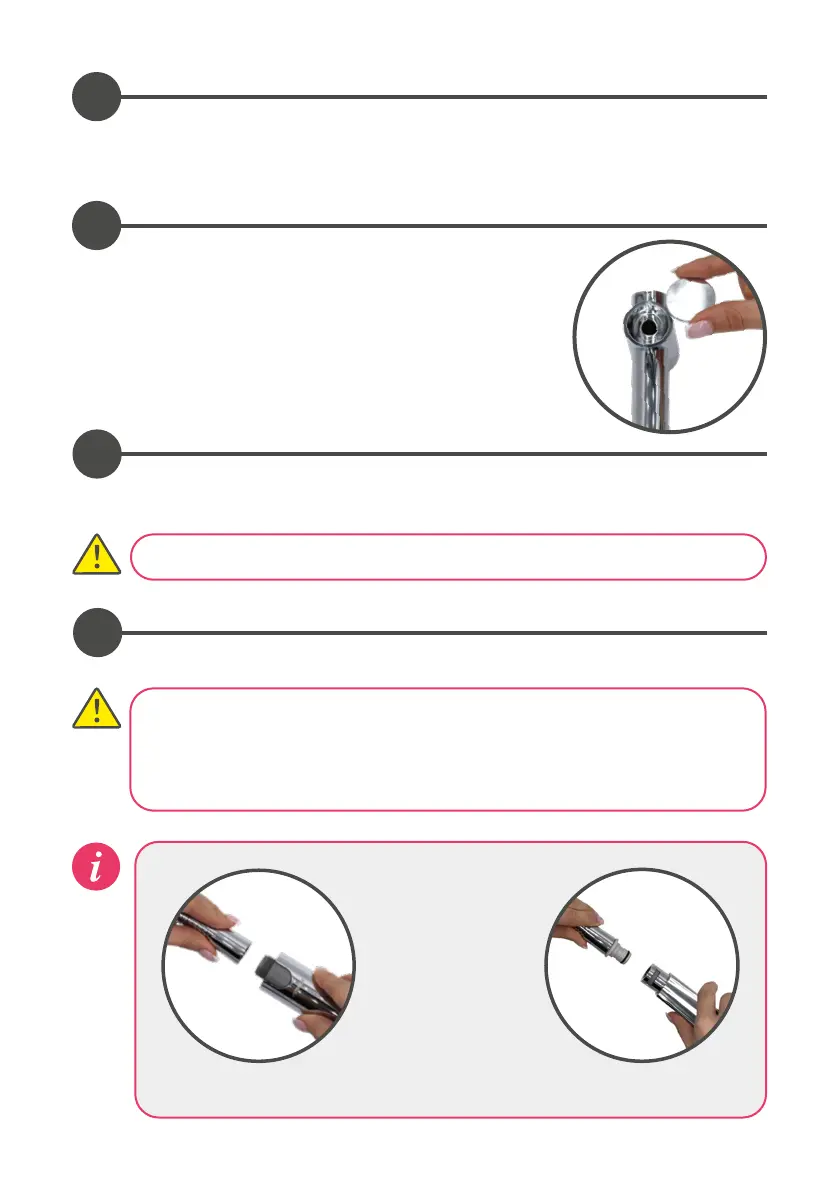

Current Water Supply Regulations state that the handset should not be allowed
to pass a point 25mm above the spill over level of the bath or shower tray. If
this cannot be achieved, the hose must be passed through the gel hook which
has been designed to be utilised as a hose restraint.
Make note of the
type of
your shower head
(A or B) when
proceeding with
below instructions.
A B
