Universal shower kits installation guide page 10

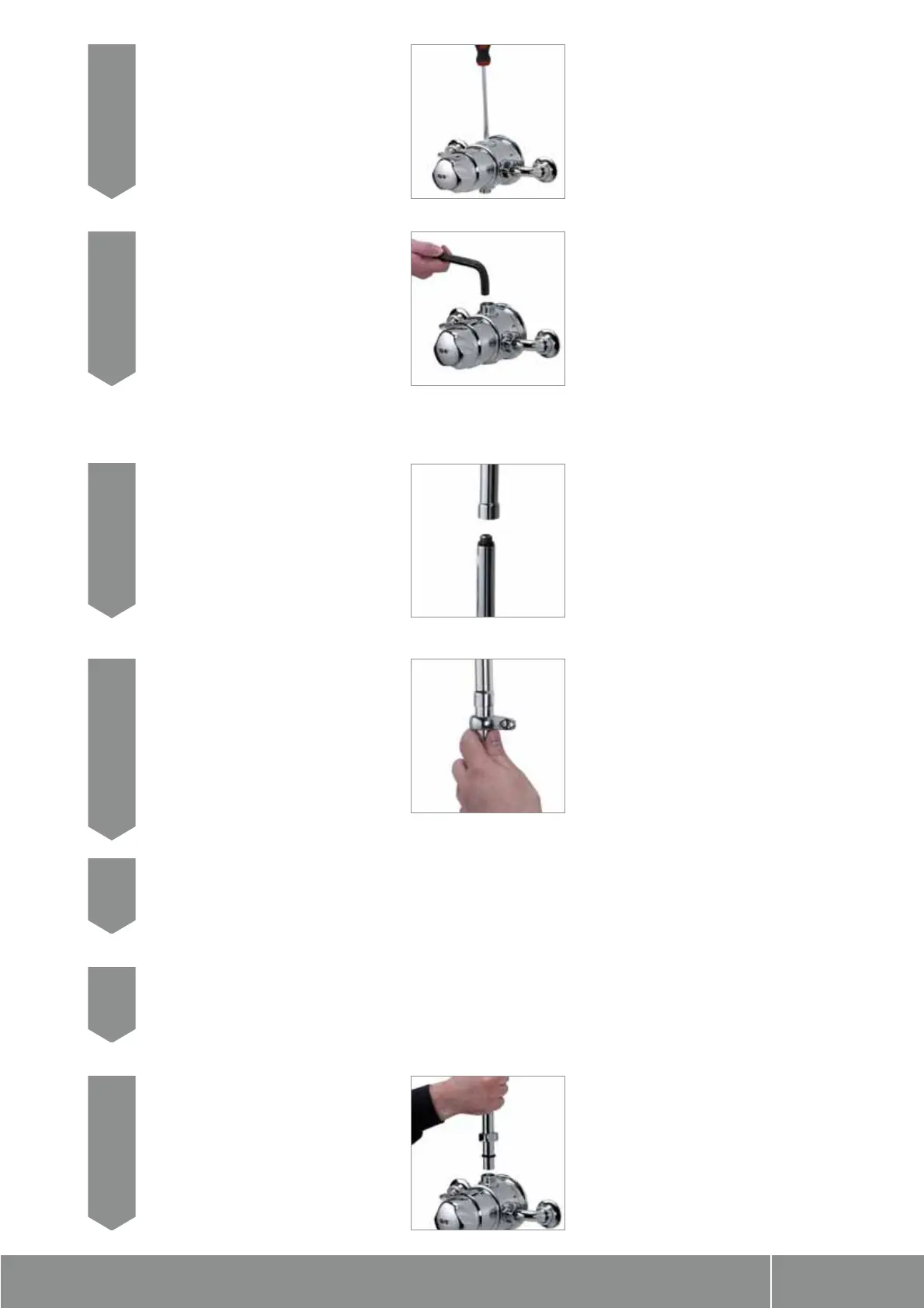

Using a large flat bladed screwdriver remove
the body plug from the top of the valve taking
care not to damage the plated surfaces and
refit in the underside of the valve.
With the sealing ‘O’ ring in position, locate the
‹÷¢” adaptor into the top outlet and carefully
secure using either a 12mm hexagonal key or
standard radiator key.
2
3
The riser tube and shower head assembly may now be fitted as follows:
Screw the formed shower arm to the riser tube.
The riser tube can be shortened if required by
trimming the plain end using a rotary type
cutter.
1
Carefully slide the fixing bracket up the riser
tube until the joint is hidden.
2
Locate the riser tube into the ‹÷¢” outlet and place in the required position
against the wall face.
3
Mark the required fixings holes and remove the riser tube assembly from the
valve. Prepare and fit the fixings ensuring no debris enters the shower valve.
4
Carefully slide the plated ‹÷¢” nut and ‘O’ ring
onto the riser tube and locate the assembly
into the ‹÷¢” valve outlet.
5
To Next Page
