Universal shower kits installation guide page 4
Step -by-step instructions
In addition to the guide below it is essential that the written instructions
overleaf are read and understood and that you have all the necessary
components (shown overleaf) before commencing installation. Failure to
install the product in accordance with these instructions may adversely affect
the warranty terms and conditions. Do not undertake any part of this
installation unless you are competent to do so. Prior to starting ensure that
you are familiar with the necessary plumbing regulations required to install
the product correctly and safely.
The adjustable height heads are supplied with universal fixings.
!
Adjustable height head installation
Adjustable height slider rail set installation
The adjustable height heads are suitable to be fitted with either concealed or exposed
shower valves. A wall outlet assembly is supplied for installation with a concealed valve.

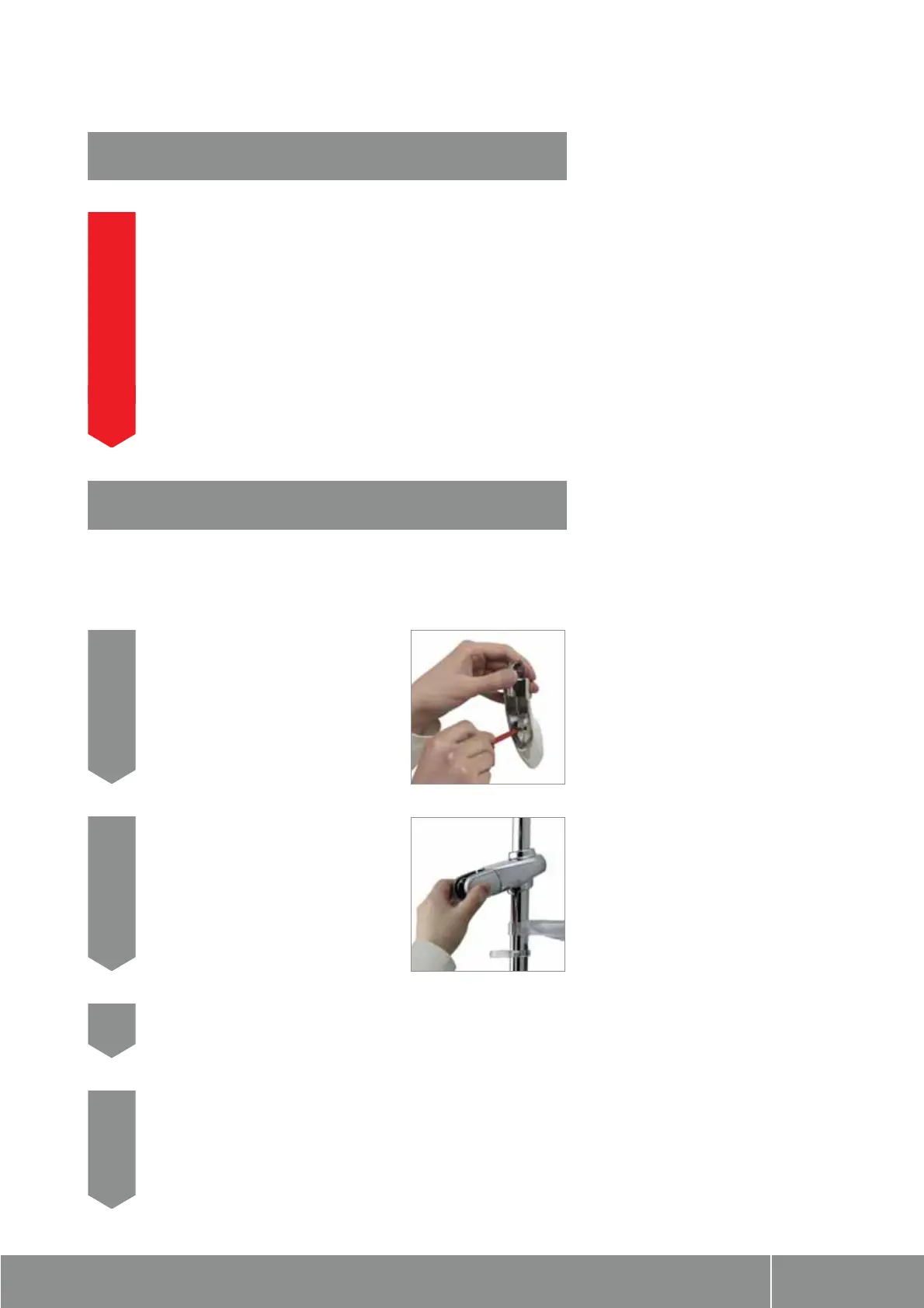

Drill and plug two holes 642mm-655mm
vertically apart using a spirit level to facilitate if
necessary. Fit the rail end clip into position and
loosely fit the lower bracket into position.
1
Pass the rail through the handset holder whilst
keeping the slider levers depressed with the
handset holder pointing in a downward
direction.
2
If the soapdish is required slide onto the rail under the handset holder.
3
Current water supply regulations state the handset should not be allowed to
pass a point 25mm above the spill over level of the bath or shower tray.
If this cannot be achieved, the hose restraint must be fitted. This is fitted to
the rail under the soapdish.
4
