Universal shower kits installation guide page 6
Clean and lubricate the pipe using a suitable (silicone based) lubricant.
3
Remove the wall outlet cover plate and carefully slide the wall outlet onto the
projecting pipe. Turn to the required position and mark the screw holes on the
wall face.
4
Remove the wall outlet and drill and prepare
suitable wall fixings. Ensure the projecting pipe
is clean and lubricate again if necessary.
Refit the wall outlet and secure it to the wall
using the screws provided.
5
Refit the wall outlet coverplate.
6
Remove the central ‘O’ ring (B) before removing the ‘O’ ring housing (C),
the support washer (D) and the outer ‘O’ ring (E).
2
Remove the support ring (A) by turning it anti-clockwise to unlock the
bayonet fitting.
1

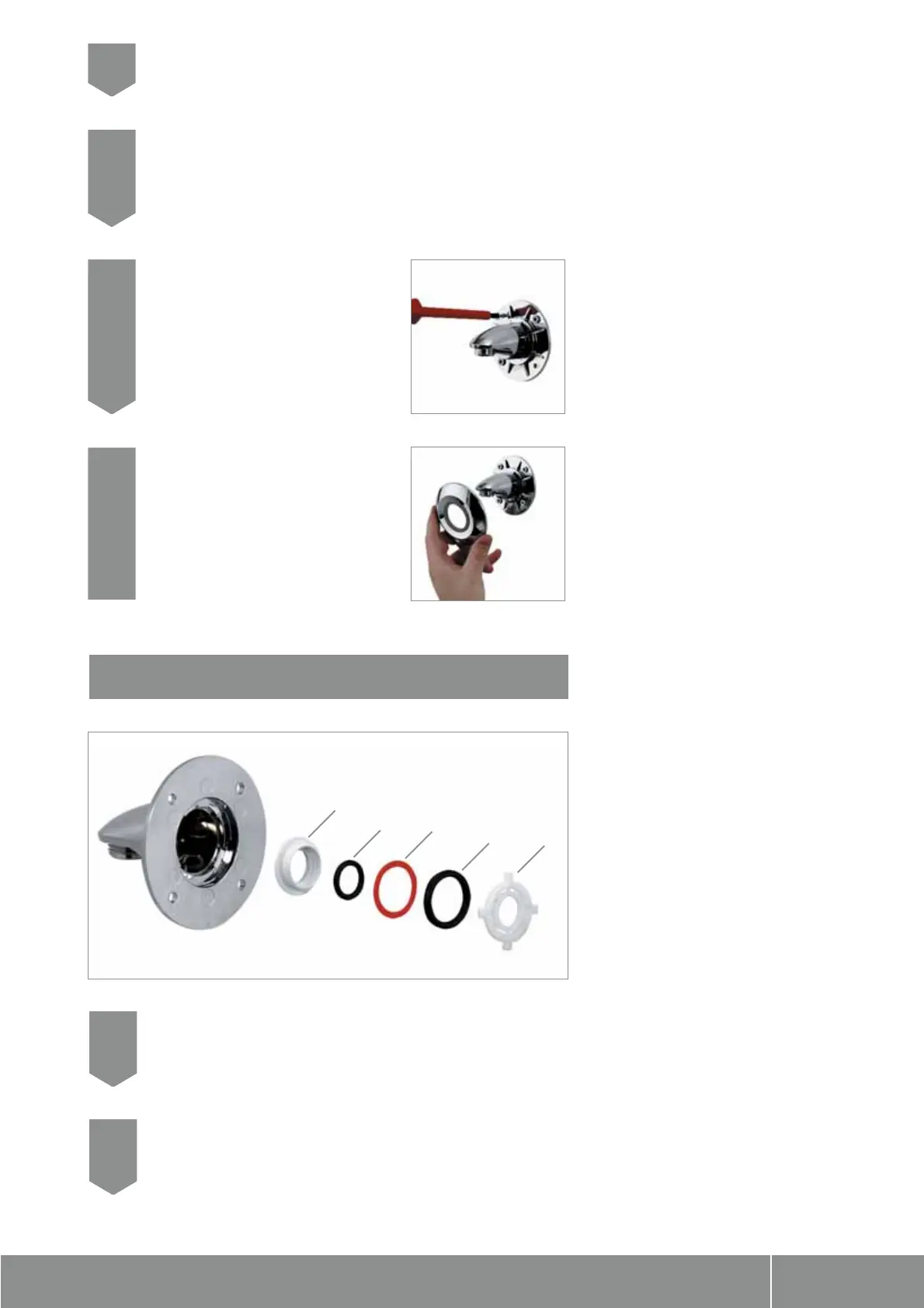

15mm-22mm wall outlet conversion guide
C
B
D
E
A
