Universal shower kits installation guide page 7
Re-fit the support washer (D) and the outer ‘O’ ring (E) so that they sit
against the ledge inside the outlet body.
3

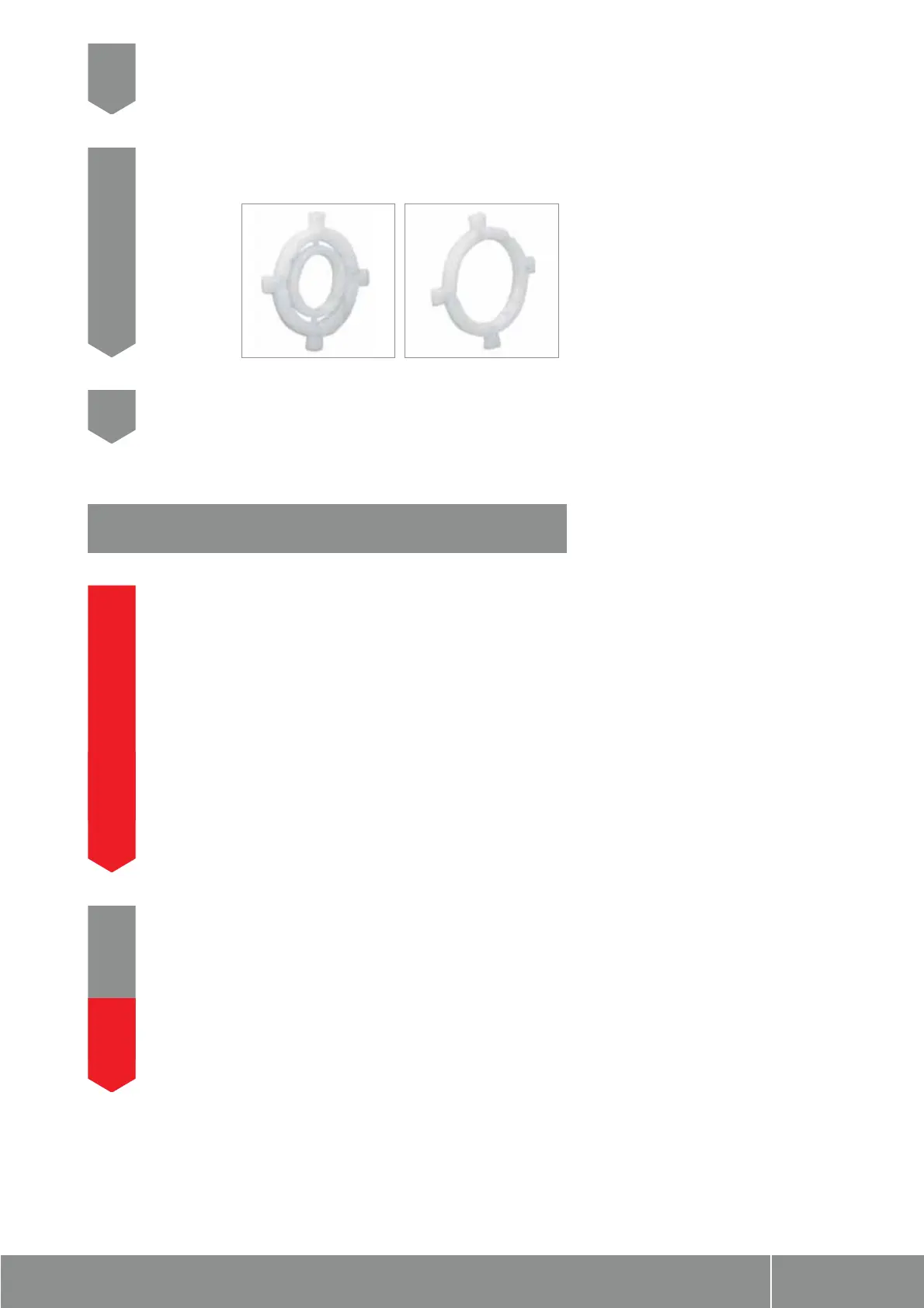

Push out the centre section of the support ring (A) to enable it to take 22mm
pipe.
4
Re-fit the support ring (A), rotating it clockwise until it locks in position.
5
22mm15mm
In addition to the guide below it is essential that the written instructions
overleaf are read and understood and that you have all the necessary
components (shown overleaf) before commencing installation. Failure to
install the product in accordance with these instructions may adversely affect
the warranty terms and conditions. Do not undertake any part of this
installation unless you are competent to do so. Prior to starting ensure that
you are familiar with the necessary plumbing regulations required to install
the product correctly and safely.
The concealed fixed head is supplied with universal fixings.
The maximum panel thickness for installation of the fixed head is 35mm,
which includes a maximum tile thickness of 15mm.
!
Fixed head concealed
Run a 15mm outlet pipe from the shower valve to the preferred position for
the fixed head arm. The pipe must terminate with a suitable ⁄÷™” BSP female
fitting.
1
If the spigot cannot be secured to the wall then the pipe must be secured
using a clip or another form of fixing.
!
