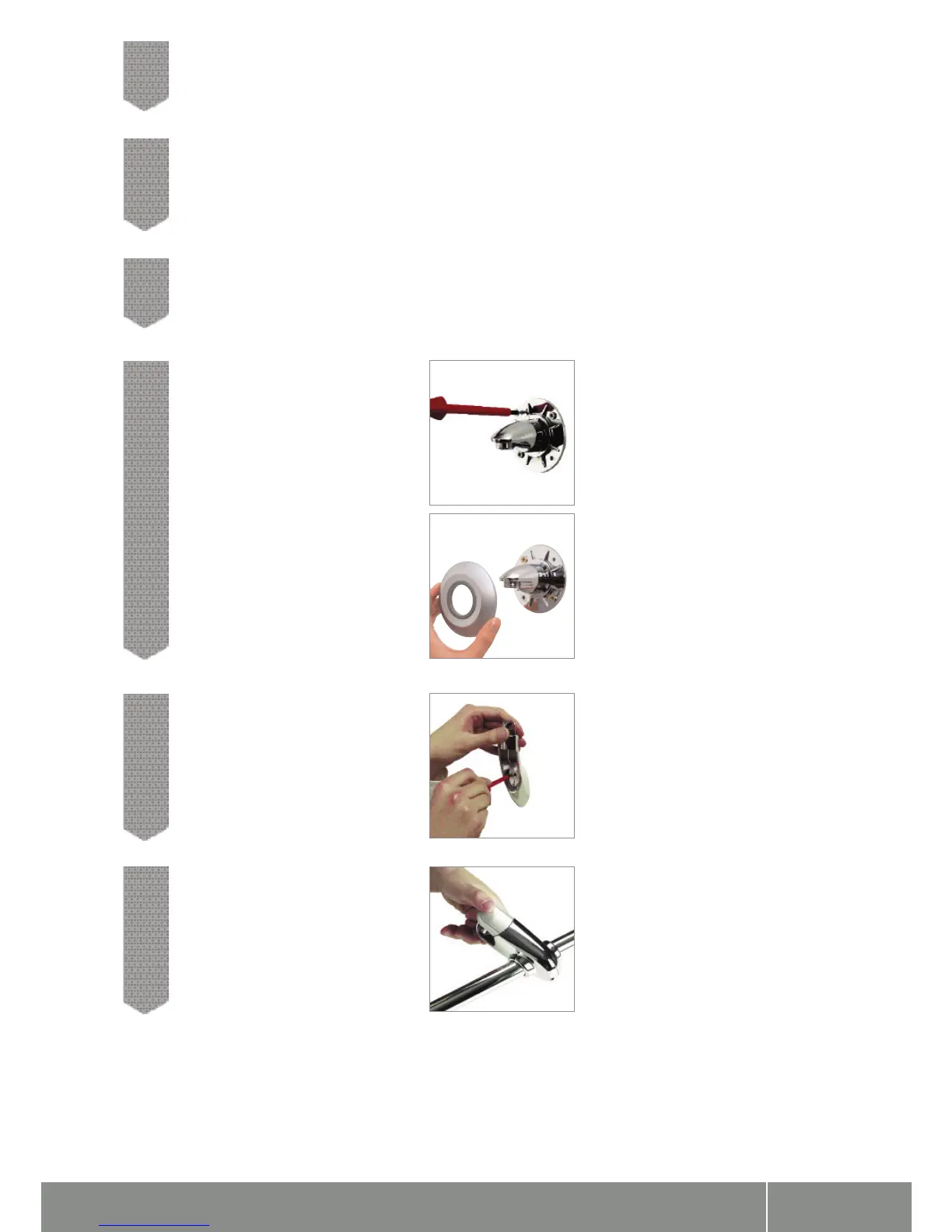

Visage Digital concealed installation instuctions page 11
Clean and lubricate the pipe using a suitable (silicone based) lubricant.
3
Remove the wall outlet cover plate and carefully slide the wall outlet
onto the projecting pipe. Turn to the required position and mark the
screw holes on the wall face.
4
Remove the wall outlet and drill and prepare the wall fixings.
5
Ensure the projecting pipe is clean and lubricate
again if necessary. Run a thin bead of silicone
sealant to the rear of the wall outlet. Refit the
wall outlet and secure it to the wall using the
screws provided. Refit the wall outlet cover plate.
6
Prepare two fixing points 540mm-555mm
vertically apart using a spirit level to facilitate
if necessary. Fit the rail end clip into position
and loosely fit the lower bracket into position.
7
Pass the rail through the handset holder
whilst keeping the slider levers depressed
with the handset holder pointing in a
downward direction.
8
