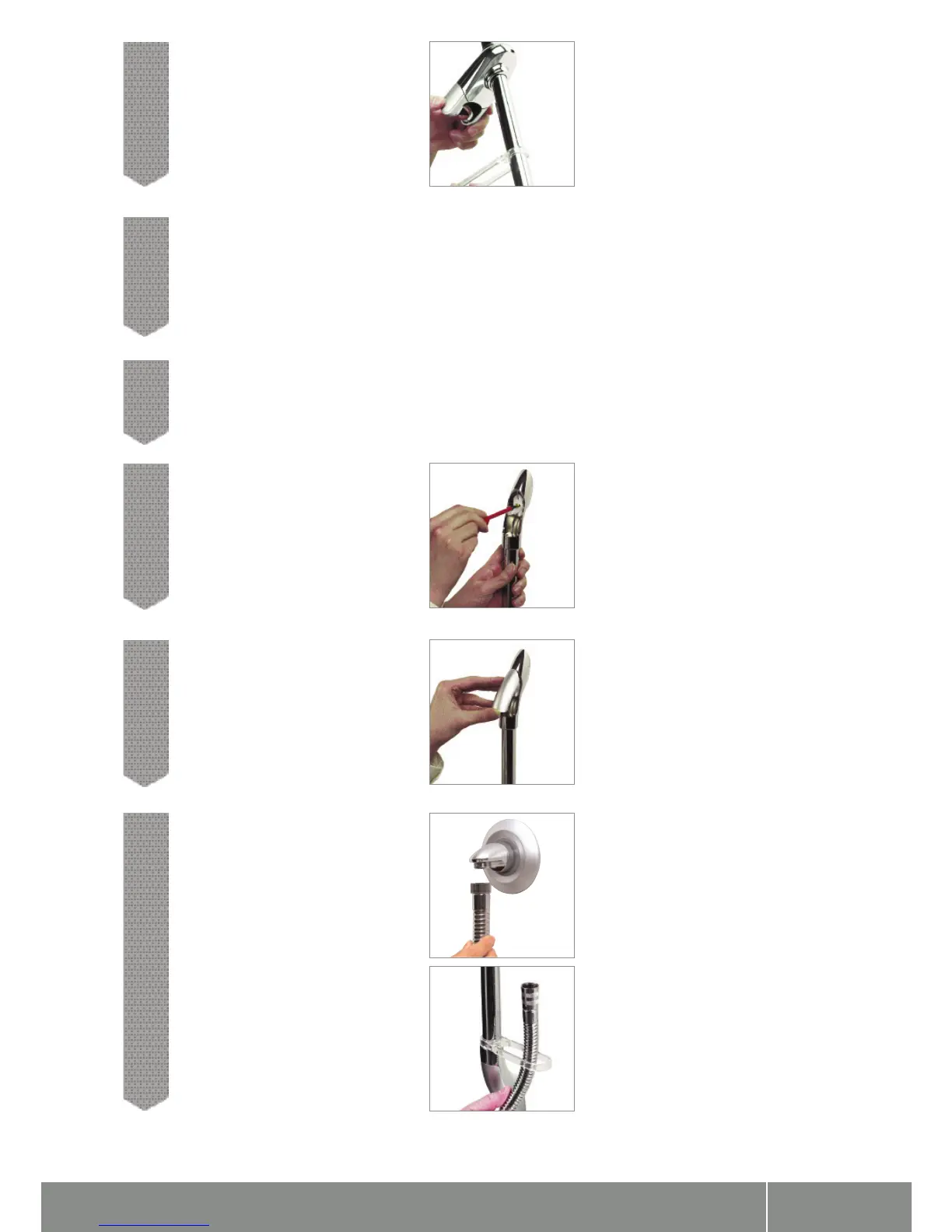

Visage Digital concealed installation instuctions page 12
Current water supply regulations state the handset should not be allowed to
pass a point 25mm above the spill over level of the bath or shower tray.
If this cannot be achieved, the hose must be passed through the gel hanger
which has been designed to also be utilised as a hose restraint.
10
Fit the rail into the rail end bodies taking care to engage the location slot
onto the lugs.
11
Fit the rail end clip into position into the top rail
end body and secure the rail assembly to the
wall using the screws provided, ensuring the
rail and rail end bodies remain firmly engaged.
12
Place the rail end covers into position and
push firmly into place.
13
Carefully slide the gel hanger onto the rail under
the handset holder.
9
Ensuring the hose washer is correctly fitted,
connect the hose to the wall outlet assembly
and run the shower for 15 seconds without the
handset attached to clear any internal debris,
which may be present. Turn off the shower and
pass the hose through the gel hook/hose
restraint (if required).
14
